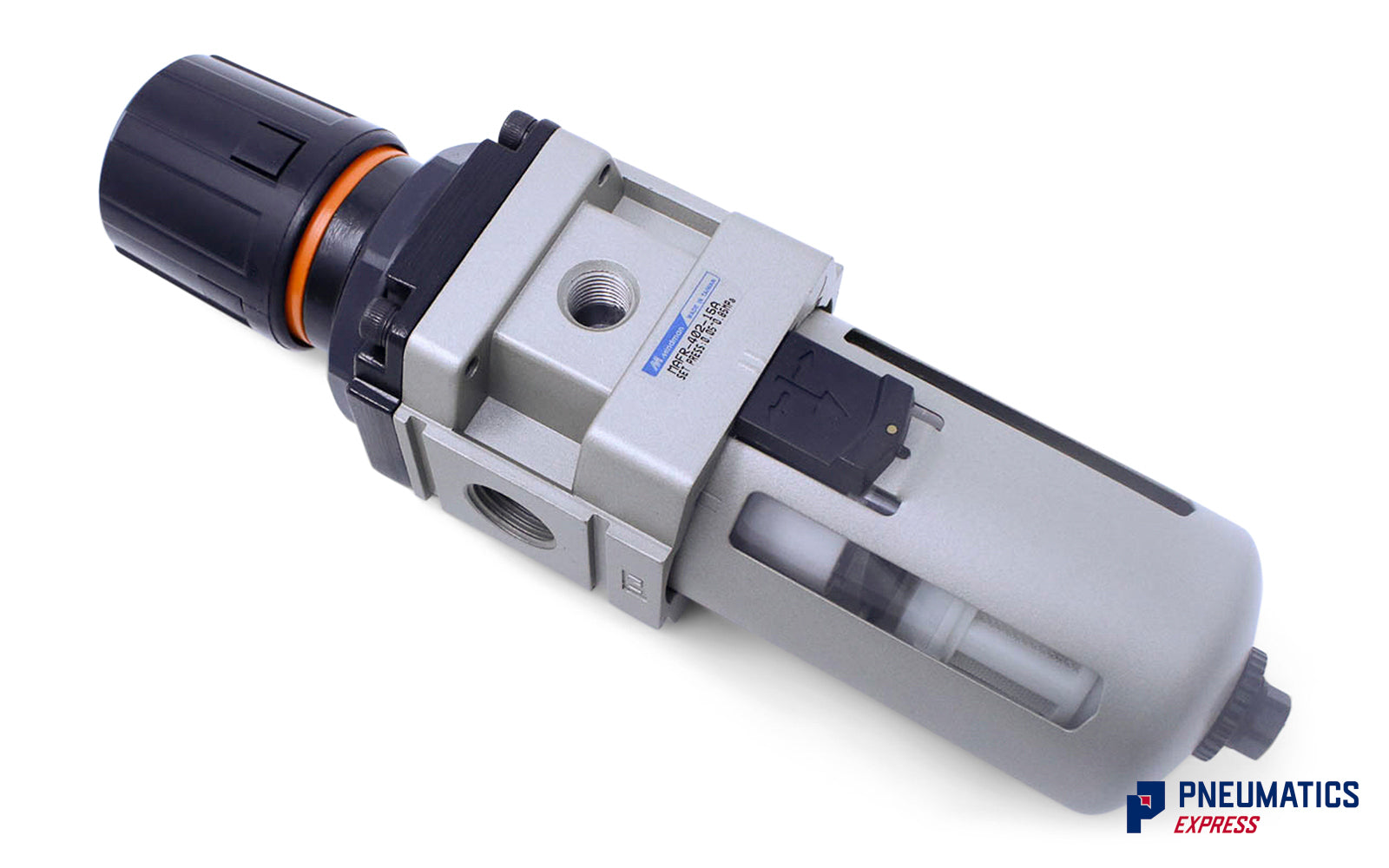

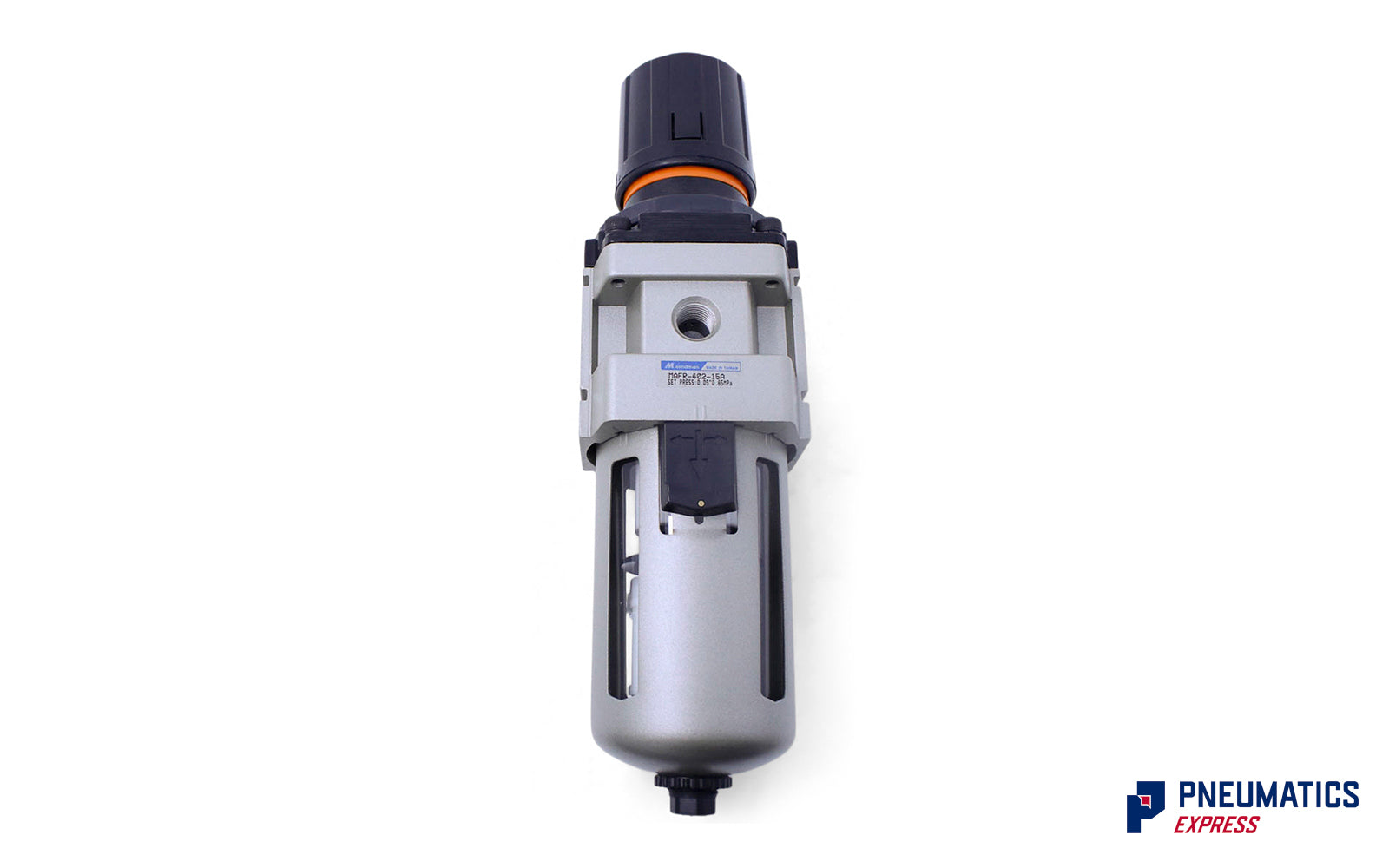

Mindman MAFR402-15A-D Filter Regulator Auto Drain 1/2"
The Mindman MAFR402-15A-D Filter Regulator is an industrial machinery component. It has a 1/2" port connection and an auto drain feature. This filter regulator is designed for use with air, and has an operating pressure range of 0.05~1 MPa. It is made with a standard 40μm filter element, and can be optionally fitted with a 5 μm or 20μm element. Ambient temperature for the regulator is -5 ~ + 60℃.
| Model | MAFR402 |
| Bore no. | 10A /15A / 20A |
| Port size | 3/8Â /Â 1/2Â / 3/4 |
| Medium | Air |
| Operating perssure range (*) | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Filter element | Standard: 40μm Option: 5μm / 20μm |
| Attachment | Pressure gauge, bracket |
