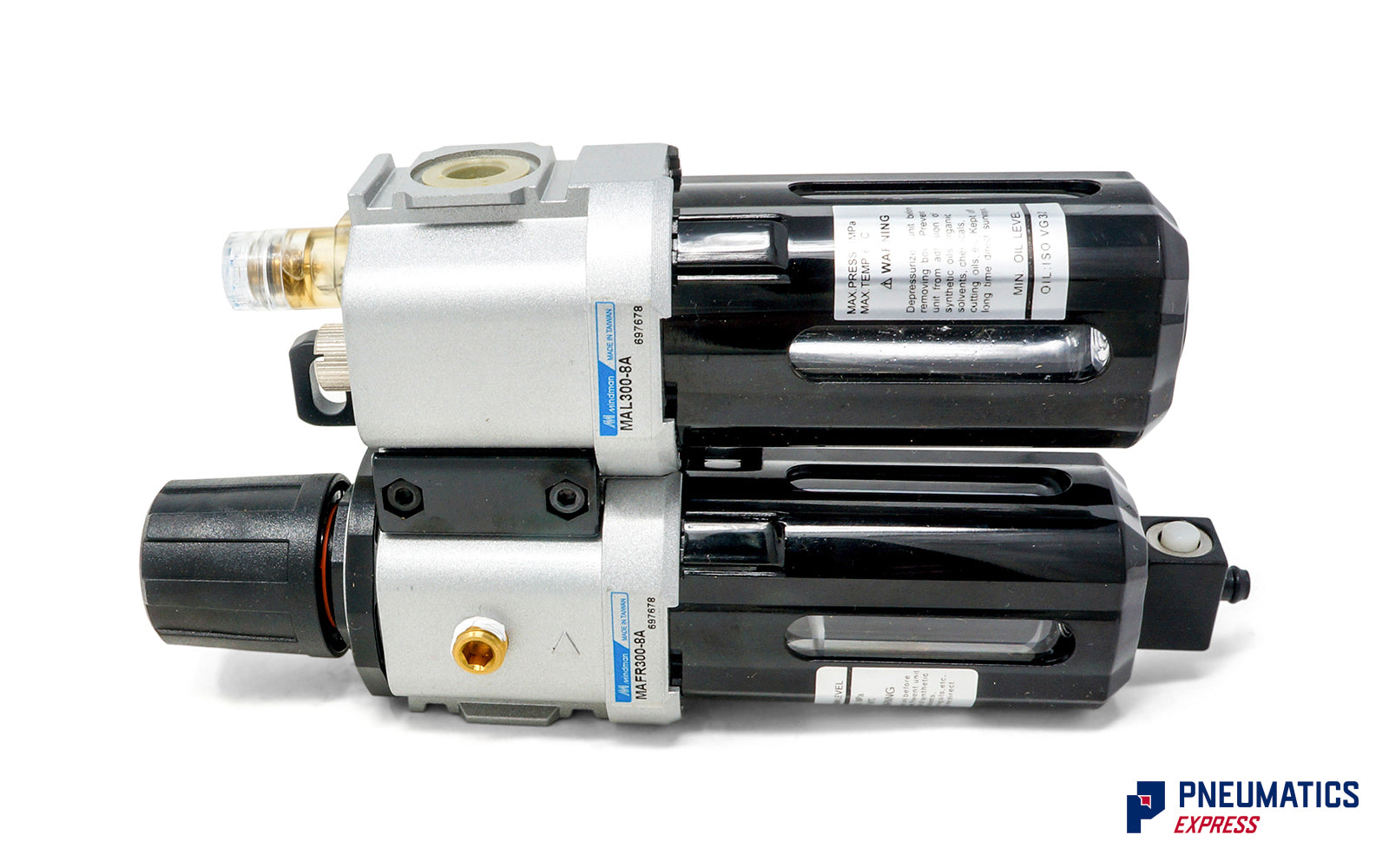

Mindman MAFR300-8A Filter Regulator 1/4"
Mindman MAFR300-8A Filter Regulator is a 1200 l/m G1/4'' regulator with a 0.5-10bar operating pressure range. With a G1/4" port size, it features a 0.05~0.85 MPa regulated pressure range, an ambient temperature of -5 ~ +60℃, and a 40m³ drain capacity. The standard filter element is 5μm, while an optional 40μm filter element is available. Additionally, a pressure gauge (PG-40) and an L-type bracket can be attached for convenience.
| Model | MAFR300 |
| Bore no. | 8A |
| Port size | G1/4" |
| Medium | Air |
| Operating perssure range (*) | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Filter element | Standard: 5μm Option: 40μm |
| Drain capacity | 40m³ |
| Attachment | Pressure gauge (PG-40), L-type bracket |
