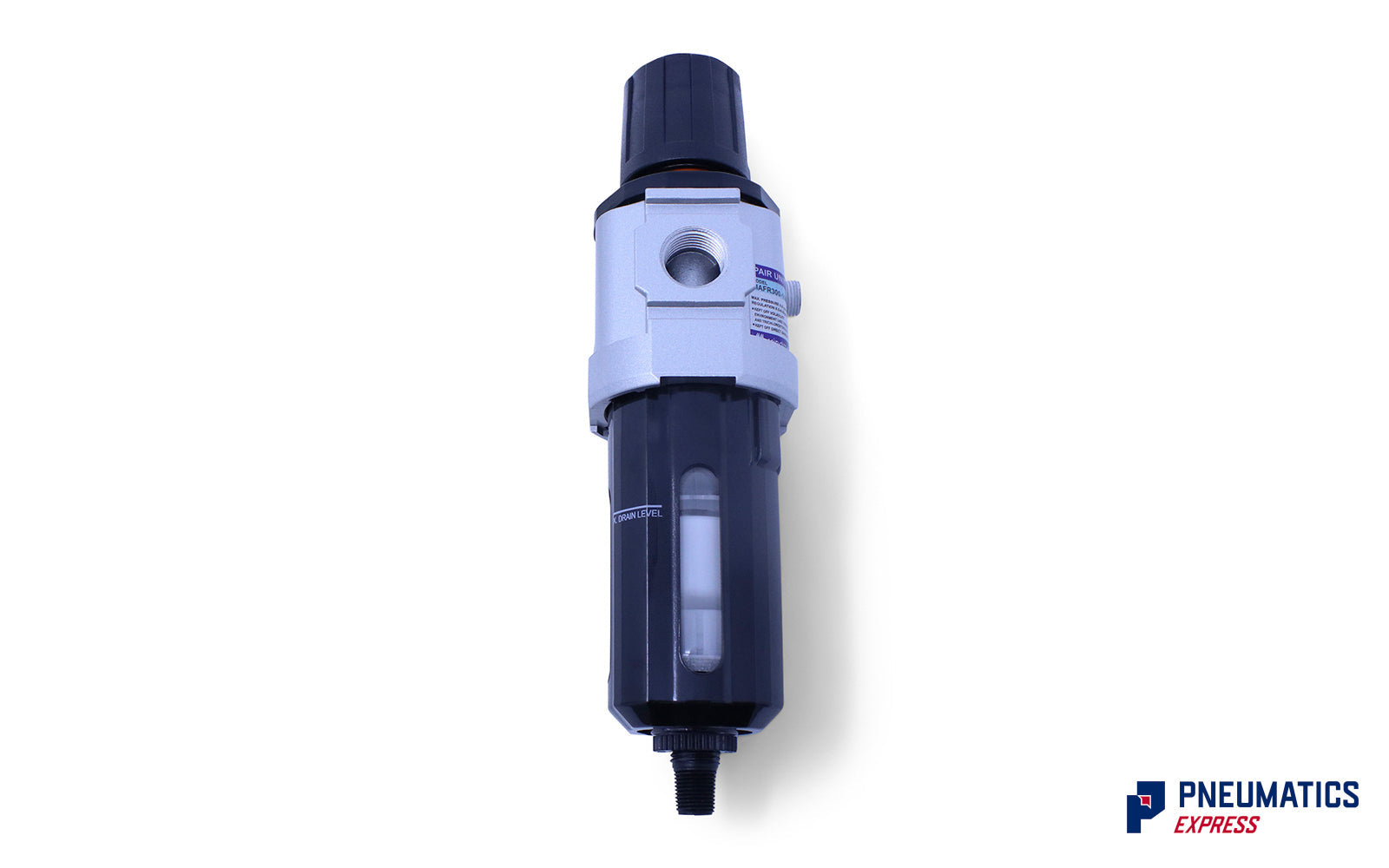

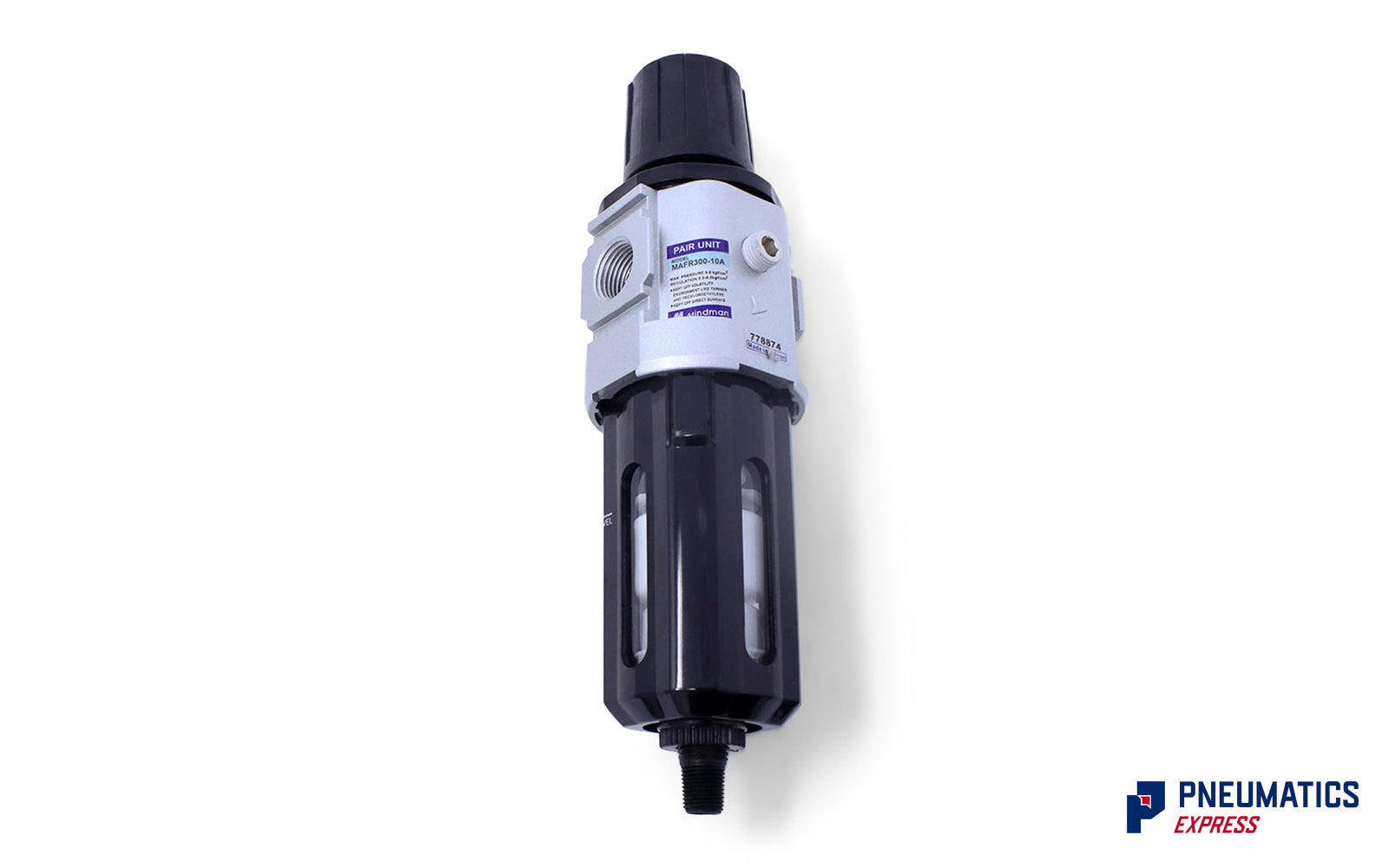

Mindman MAFR300-10A Filter Regulator 3/8"
- Regular price
- $62.20
- Sale price
- $62.20
Fully in Stock
Tax included.
Free shipping within the UK! Worldwide shipping also available.
The Mindman MAFR300-10A Filter Regulator is a 3/8" filter regulator with a bore number of 10A. It has an operating pressure range of 0.05~1 MPa and a regulated pressure range of 0.05~0.85 MPa. The filter element is 5μm, with an option for 40μm. It has a drain capacity of 40m³ and can be attached with a pressure gauge and L-type bracket. It is also a suitable replacement for the MACP-300-10A.
| Model | MAFR300 |
| Bore no. | 10A |
| Port size | Rc 3/8 (BSP) |
| Medium | Air |
| Operating pressure range (*) | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Filter element | Standard: 5μm Option: 40μm |
| Drain capacity | 40m³ |
| Attachment | Pressure gauge (PG-40), L-type bracket |
