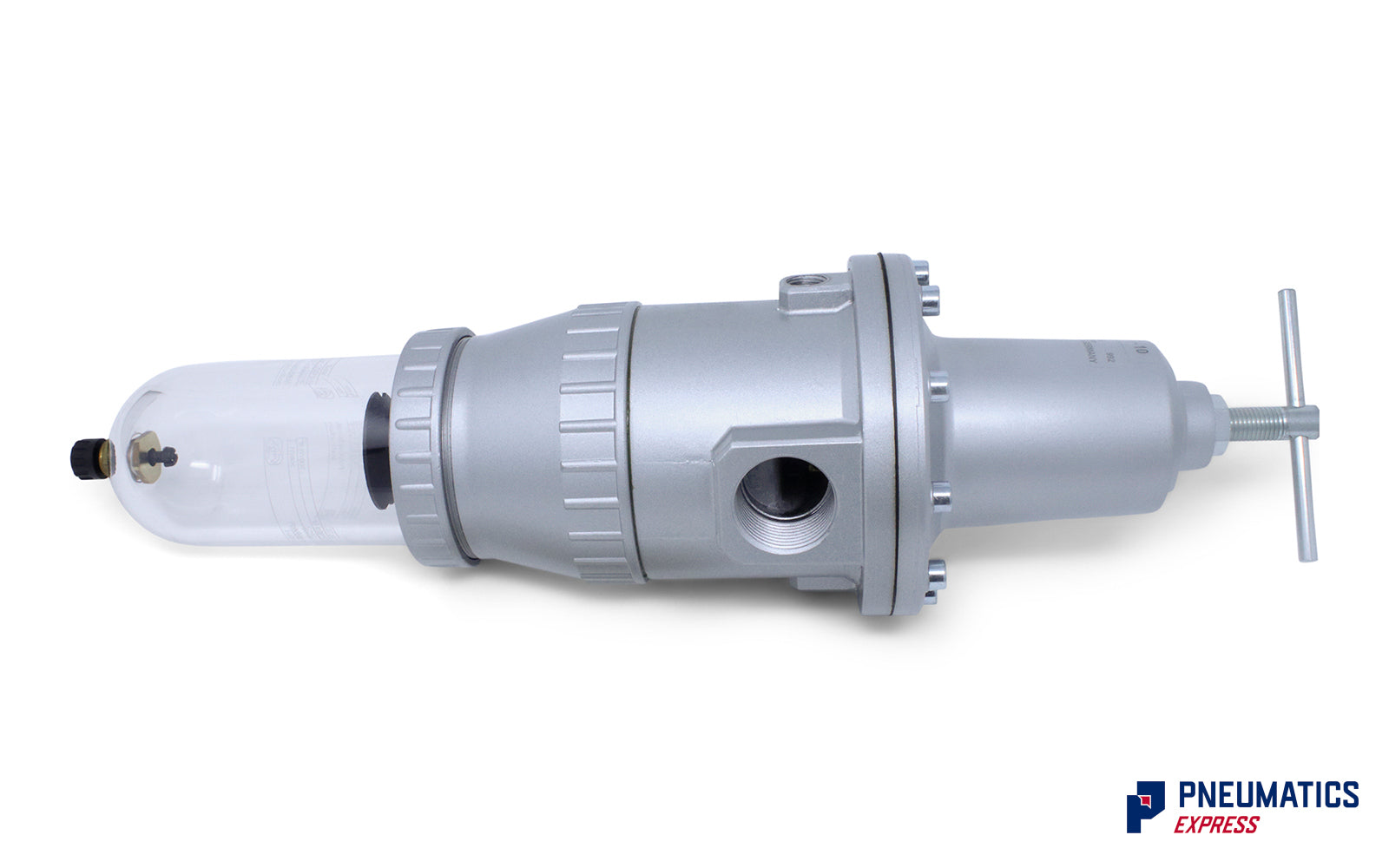

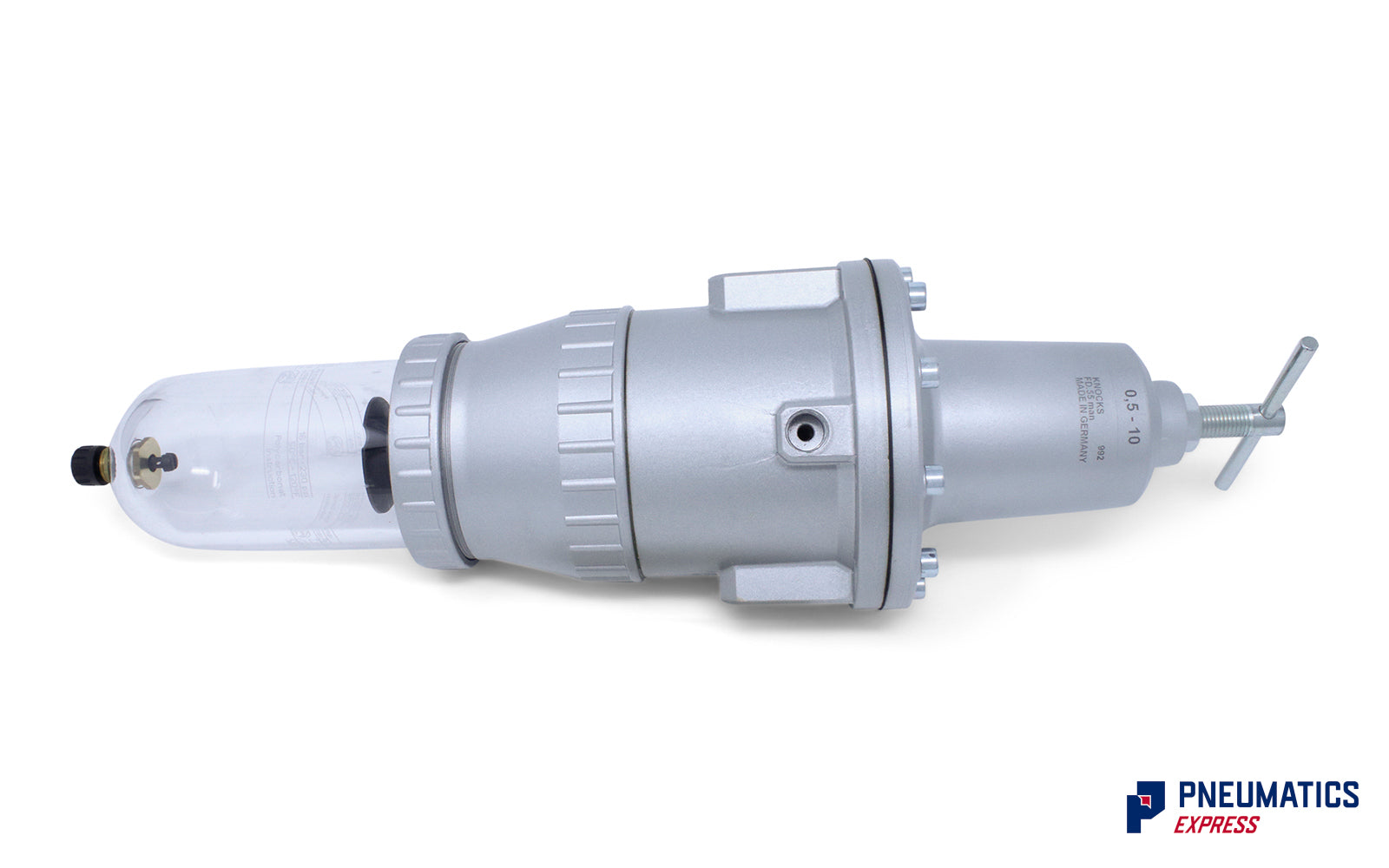

Knocks FD.55 MAN Pneumatic Filter Regulator (G 1/4")
- Regular price
- $481.60
- Sale price
- $481.60
Fully in Stock
The KNOCKS FD.55 MAN Pneumatic Filter Regulator provides precise filtration and pressure control for pneumatic systems. Its manual drain function simplifies maintenance. Made in Germany, this filter regulator boasts a 1" port size and is designed to withstand pressures up to 16 bar. With a filtration efficiency of 40 µm, it ensures the removal of contaminants. The FD.55 MAN's diaphragm and relieving feature, along with its centrifugal force principle, ensure reliable performance in industrial applications.
| Port size | G 1" |
| Description | Air line regulator with diaphragm and relieving feature, centrifugal force principle with sintered filter |
| Mounting | Vertically, drain plug at bottom |
| Supply pressure | Pe max.16 bar Pe max. 12 bar with auto drain Pe min. 1,5 bar with auto drain |
| Reduced pressure | Pa 0,5-10 bar standard.0,1-3 bar, 0,5-6 bar, 0,5-16 bar |
| Filter element | 40 μm standard, 8 μm (absolutly) |
| Media and ambient temperature | Max. 60℃ (oth. temperature ranges available upon request) |
| Bowl volume | Max. 300 cm³ condensation volume |
| Drain model | Manual drain standard, optional semi and auto drain |
| Fixing | bracket |
