Knocks FD.23 MAN Filter Regulator, 1/2" (Self Drain) 0.5-16 bar 40µm
- Regular price
- $123.30
- Sale price
- $123.30
Fully in Stock

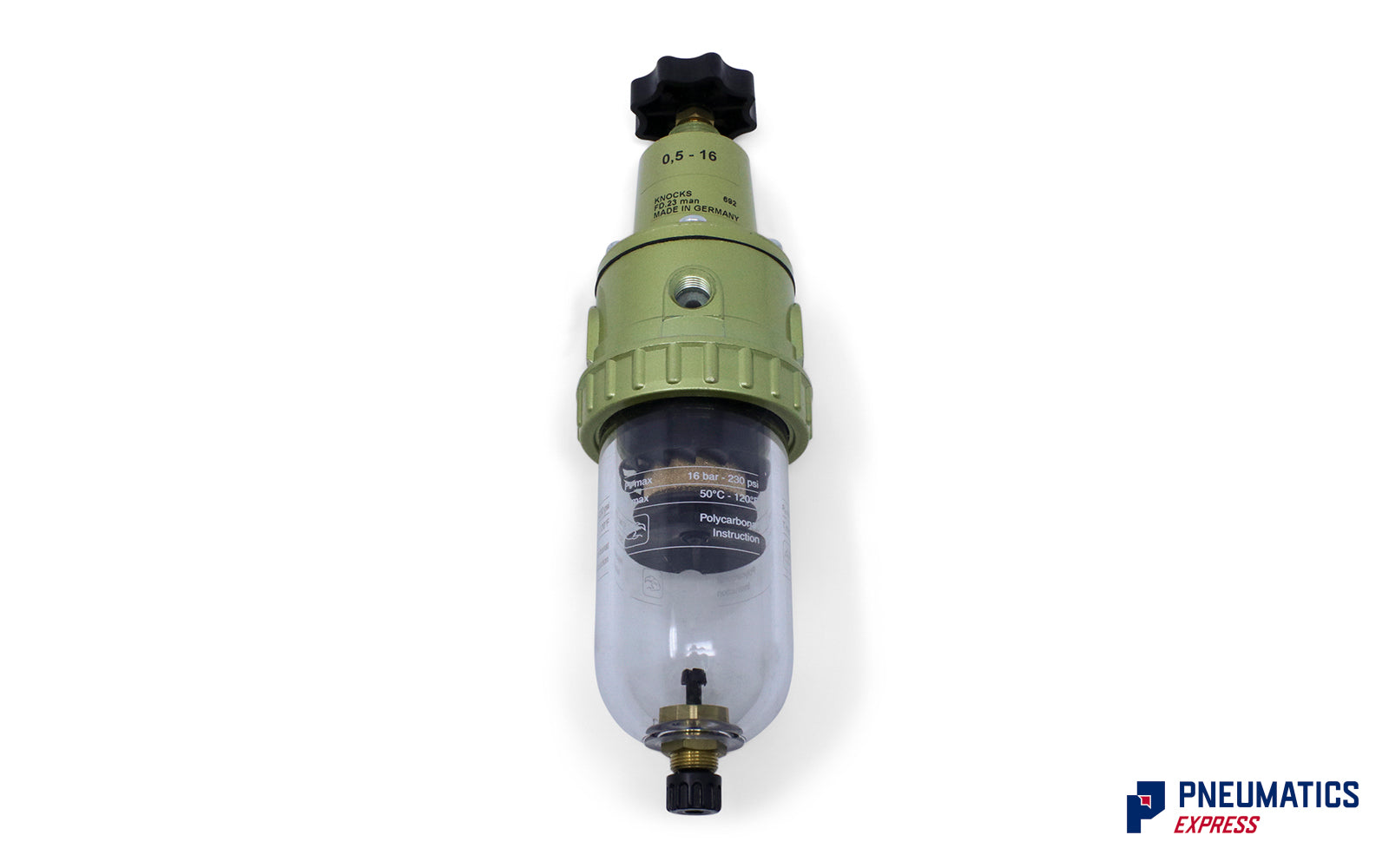

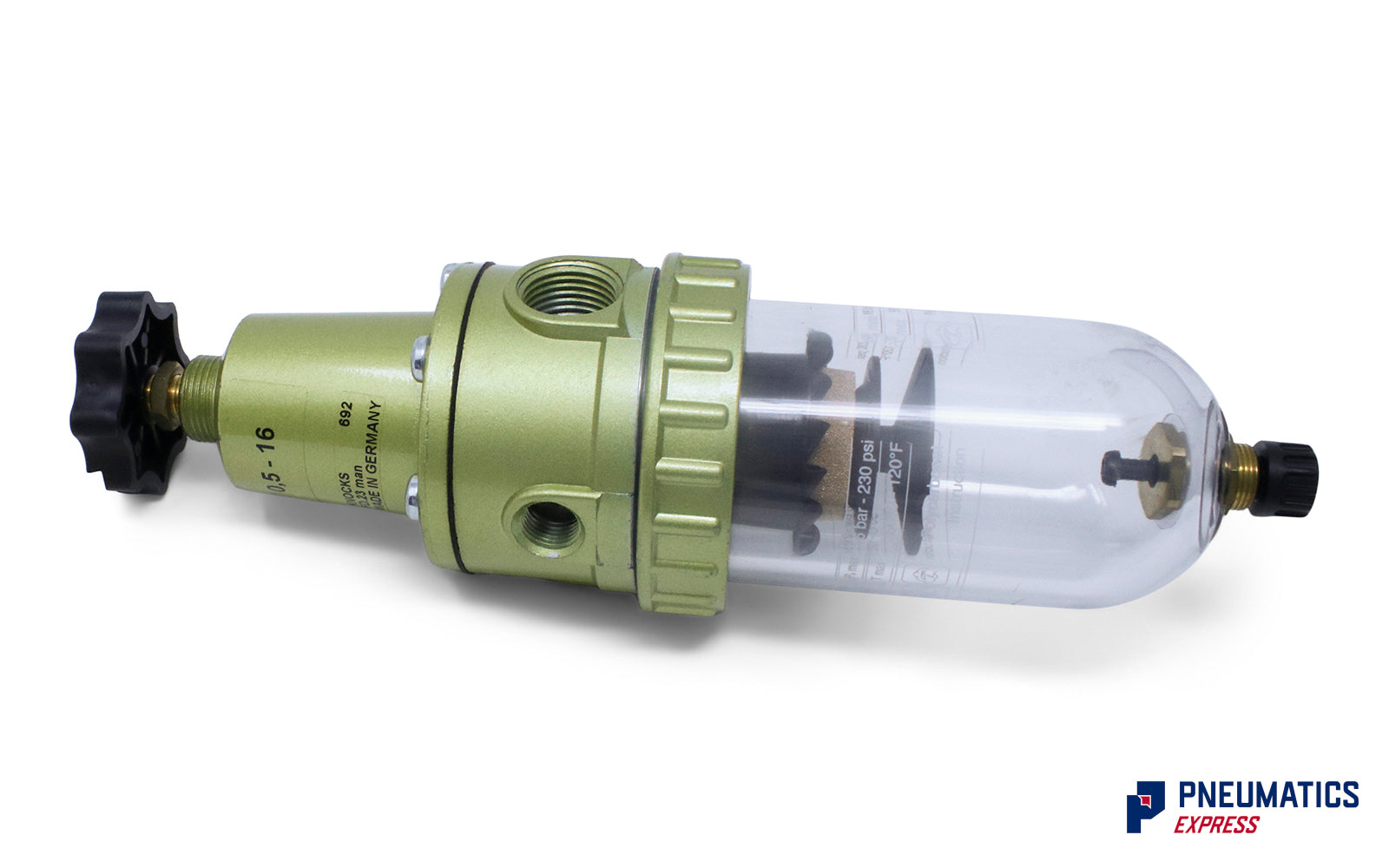

The Knocks FD.23 Filter Regulator is a high-quality, Made in Germany product designed for pneumatic systems. Its G 1/2" port connections and manual drain make it suitable for various industrial applications. With a modulating range of 0.5 - 16 bar, it ensures precise pressure regulation. The 40 µm sintered filter element effectively removes impurities, while the centrifugal force principle and diaphragm design enhance performance. Vertically mounted with a drain plug at the bottom, this filter regulator is easy to install and maintain.
| Port size | G 1/2 |
| Description | Air line regulator with diaphragm and relieving feature, centrifugal force principle with sintered filter |
| Mounting | Vertically, drain plug at bottom |
| Supply pressure | Pe max.16 bar Pe max. 12 bar with auto drain Pe min. 1,5 bar with auto drain |
| Reduced pressure | Pa 0,5-10 bar standard.0,1-3 bar, 0,5-6 bar, 0,5-16 bar |
| Filter element | 40 μm standard |
| Media and ambient temperature | Max. 60℃ (oth. temperature ranges available upon request) |
| Bowl volume | Max. 50 cm³ condensation volume |
| Drain model | Manual drain standard, optional semi drain |
| Fixing | Panel mounting, bracket |
