Univer CM-418R Long Lever Spool Valve
- Regular price
- $254.80
- Sale price
- $254.80
Fully in Stock

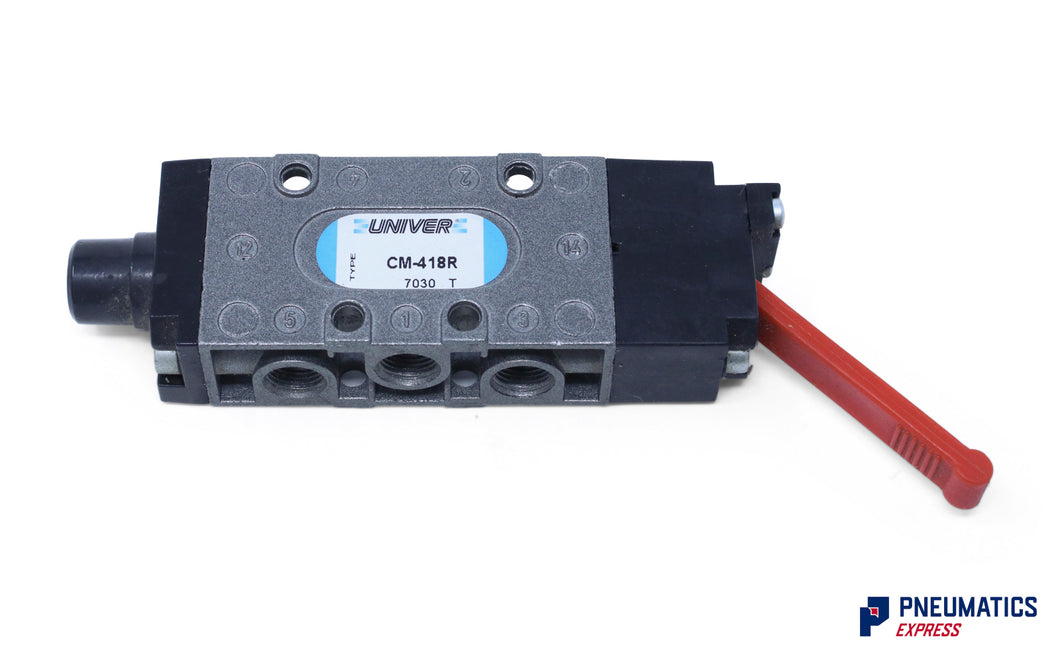

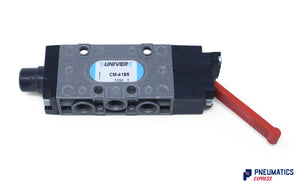

The Univer CM-418R Long Lever Spool Valve is a G1/8 valve with manual operation via hand lever. This valve features a die-cast zamak body and a highly refined aluminum spool. It operates within an ambient temperature range of -10 to 45 degrees Celsius and is suitable for use with 50 µm filtered air, with or without lubrication. Its technical specifications include a spool valve commutation system, nitrile rubber seals, and an aluminum spool.
|  Ambient temperature | -10÷45℃ |
| Fluid | 50 μm filtered air, with or without lubrication |
| Commutation system | Spool |
| Valve Body | die-cast zamak (G 1/8), aluminium (G 1/4) |
| Seals | Nitrile rubber |
| Spool | Aluminium |
| Electropilot / Coil | AA Series / U1-U3 |
| Power Consumption | 3,5 W (DC)-5 VA (AC) |
| Connector | AM5110 |
| Voltage | 12VDC-24VDC-24VAC-110VAC-230VAC |
| Manual Override | Two-position screw |
