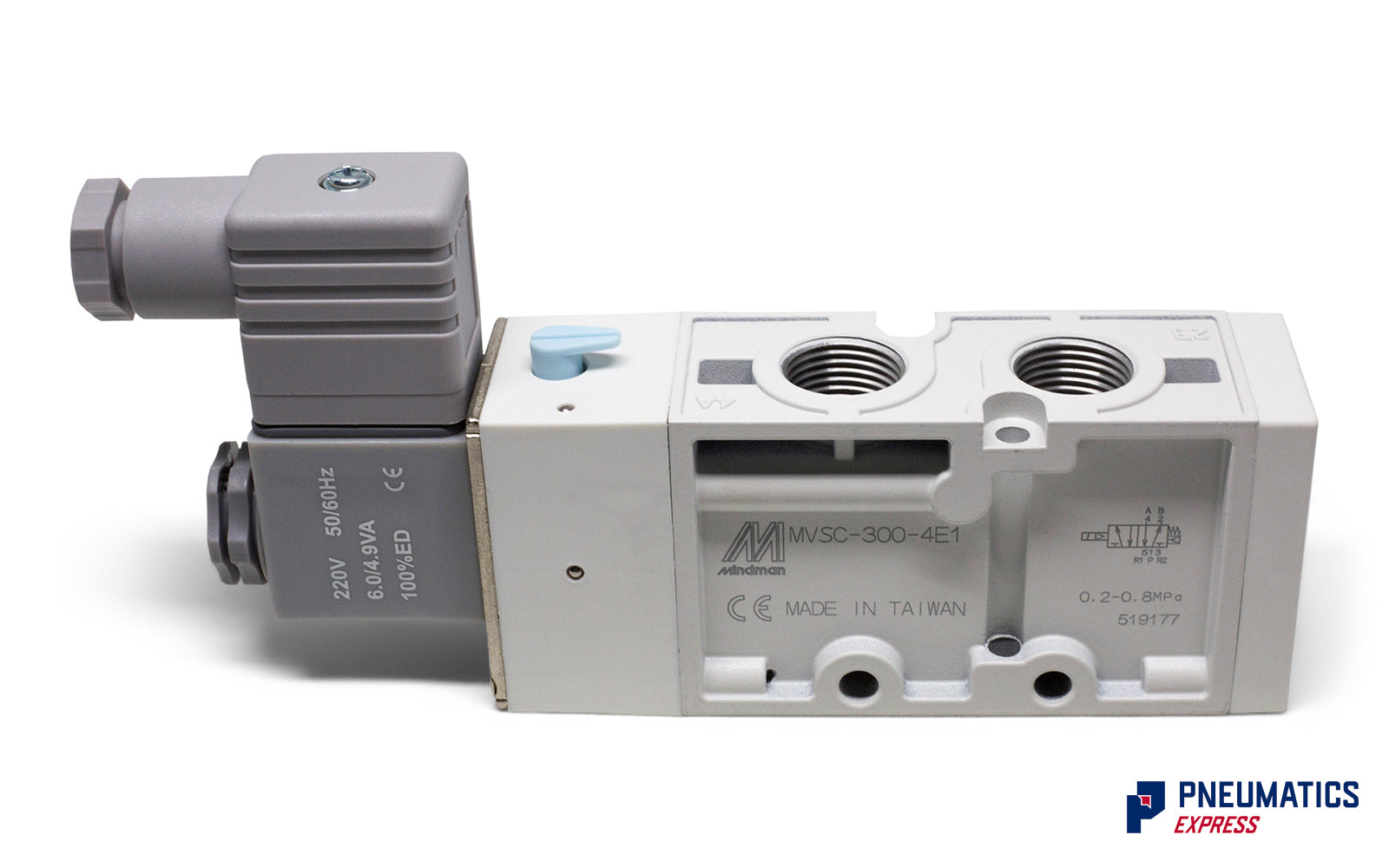

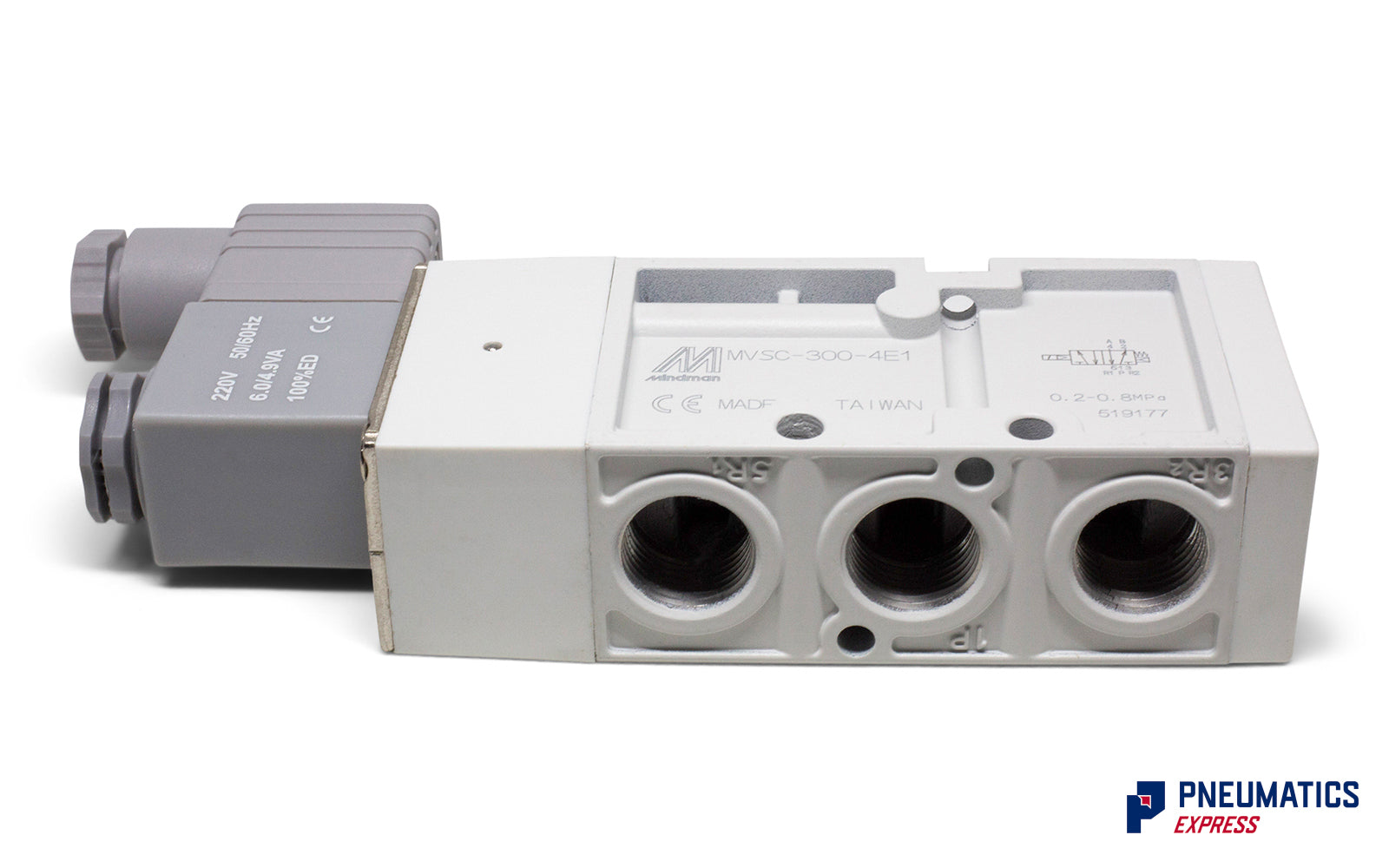

Mindman MVSC-300-4E1 Solenoid Valve (AC110v/AC220v/DC24v) 5/2, 3/8"
- Regular price
- $92.30
- Sale price
- $92.30
Fully in Stock
Mindman's MVSC-300-4E1 solenoid valve features a compact and durable design for industrial machinery and automation applications. With 3/8" port connections, this 5/2 way valve efficiently controls fluid flow. Its high-quality plastic chassis and aluminum spool ensure reliability and longevity. Powered by energy-efficient AC110v, AC220v, or DC24v solenoid coils, it offers a comprehensive voltage range. Boasting a competitive price, this valve provides exceptional value and is a popular choice for various industrial settings.
| Model | 4E1 |
| Bore no.: | 10AÂ |
| Port size | Rc 3/8 |
| No. of port | 5 |
| No. of position | 2 |
| Medium | Air |
| Operating pressure range | 0.2~0.8 MPa |
| Proof pressure | 1 MPa |
| Ambient temperature | -5 ~ + 50℃ (No freezing) |
| Effective orifice | 35 mm² |
| Reponse time | 50 ms |
| Voltage | AC110V, 220V (50/60)Hz, DC24V |
| Power consumption | AC=4.8/4.4VA, 6/4.9VA, DC=2W |
| Available voltage range | ± 10% |
