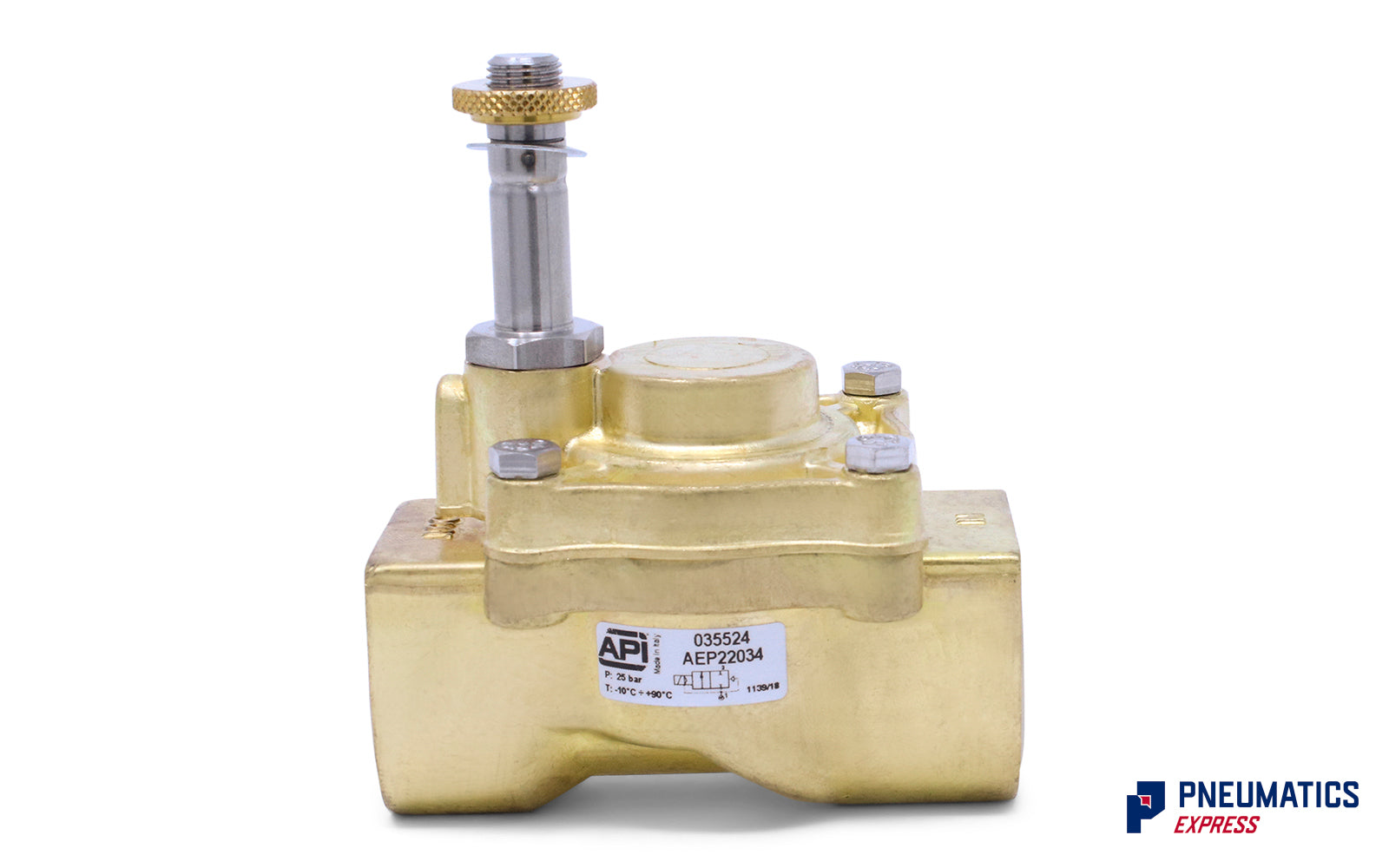

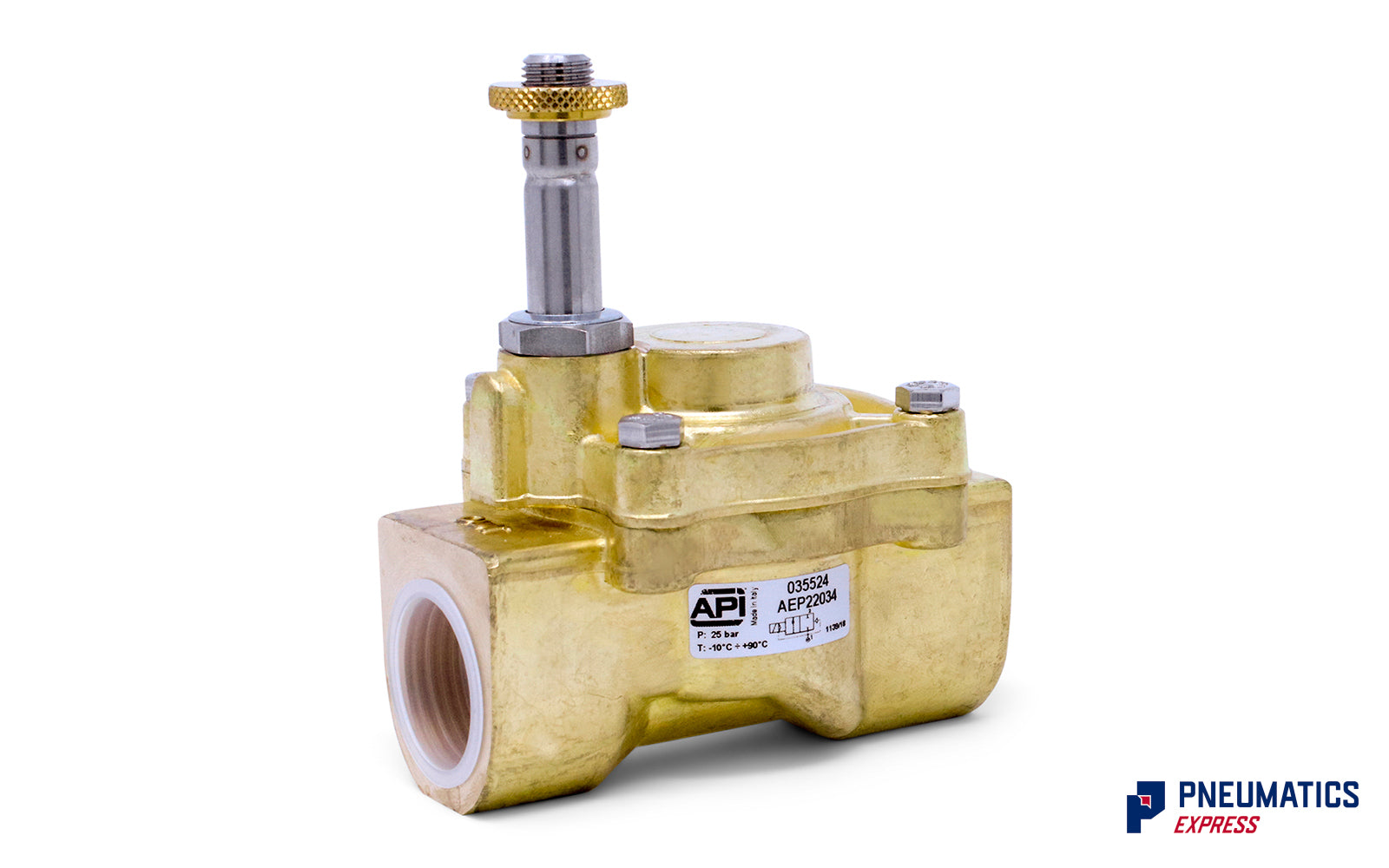

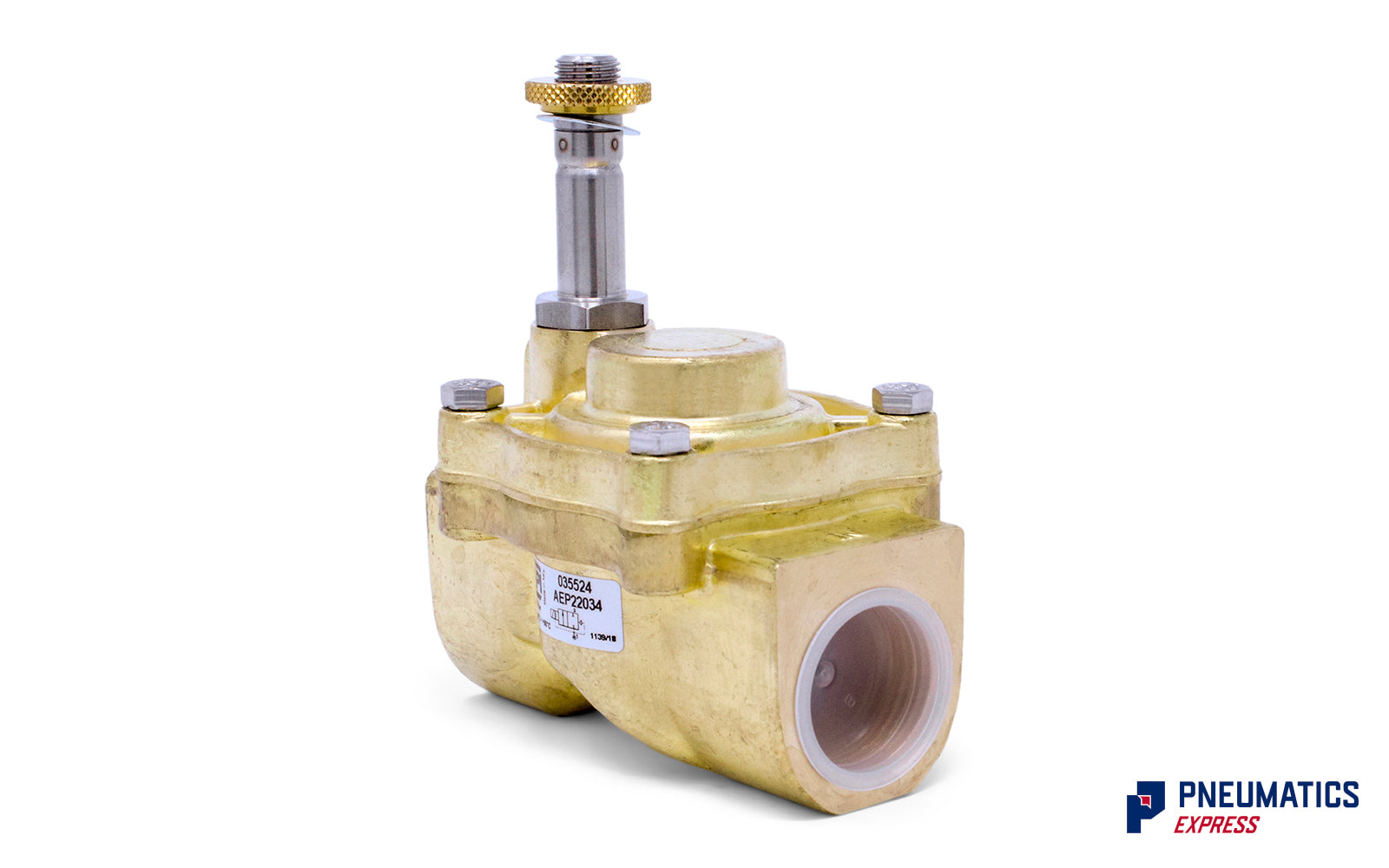

API AEP22034 Solenoid Valve for Water and Steam 3/4" 25bar 140℃ NC
- Regular price
- $131.50
- Sale price
- $131.50
Fully in Stock
Free shipping within the UK! Worldwide shipping also available.
MPN 035524, 3/4" BSP, with EPDM seals (+140℃)
2/2, normally closed, Indirectly operated solenoid valve for water and steam.
Technical Specifications
| Fluid | Water and steam. Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | 25 bar |
| Fluid maximum viscosity | 25 cSt (mm²/s) |
| Orifice | 18 mm |
| Flow | 5,2 m³/h |
| Mounting | Better with the coil high |
| Materials |
Body: Brass |
