Knocks DR.34 Pressure Regulator, 3/4", (0.5-10 bar)
- Regular price
- $200.00
- Sale price
- $200.00
Fully in Stock

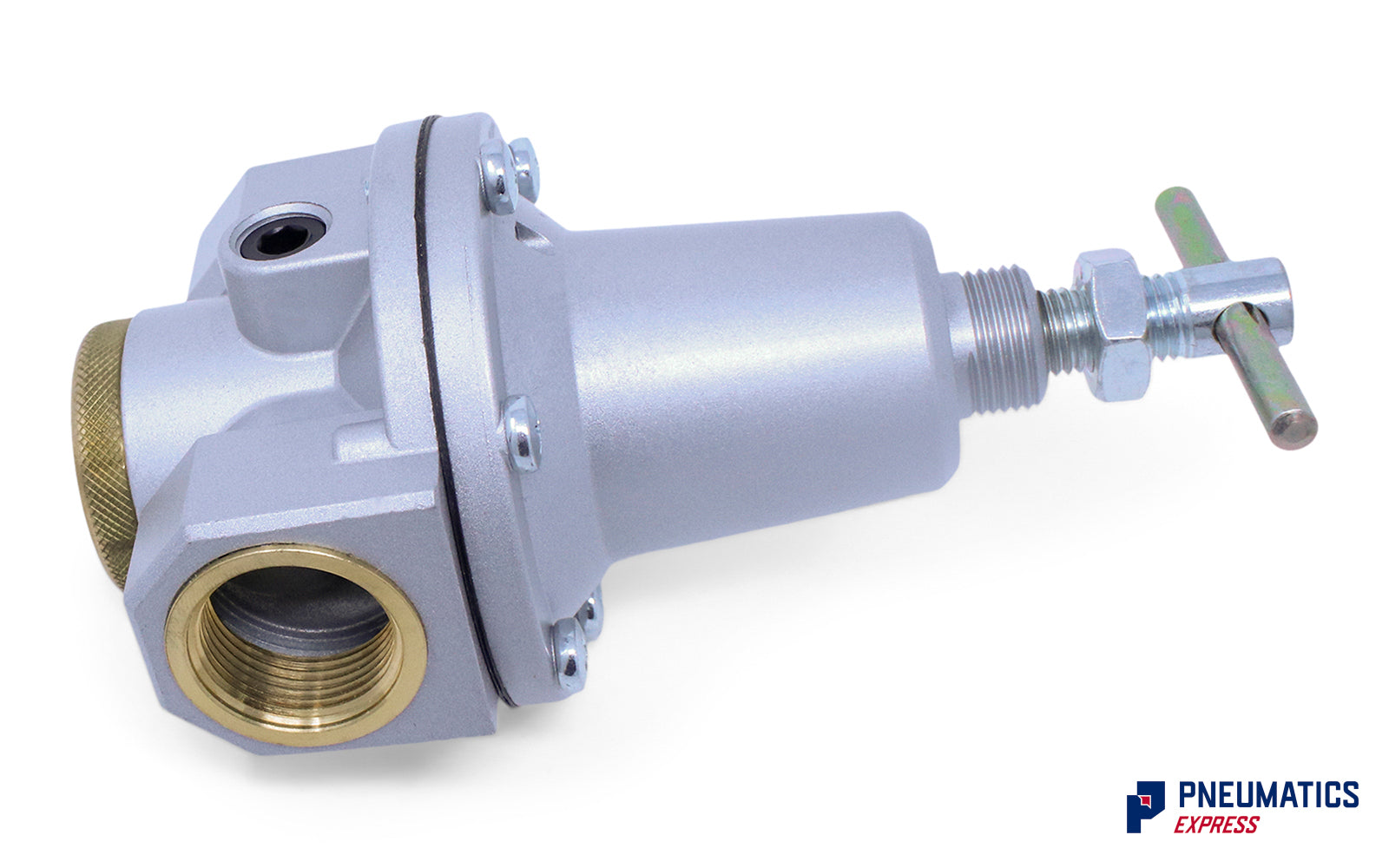

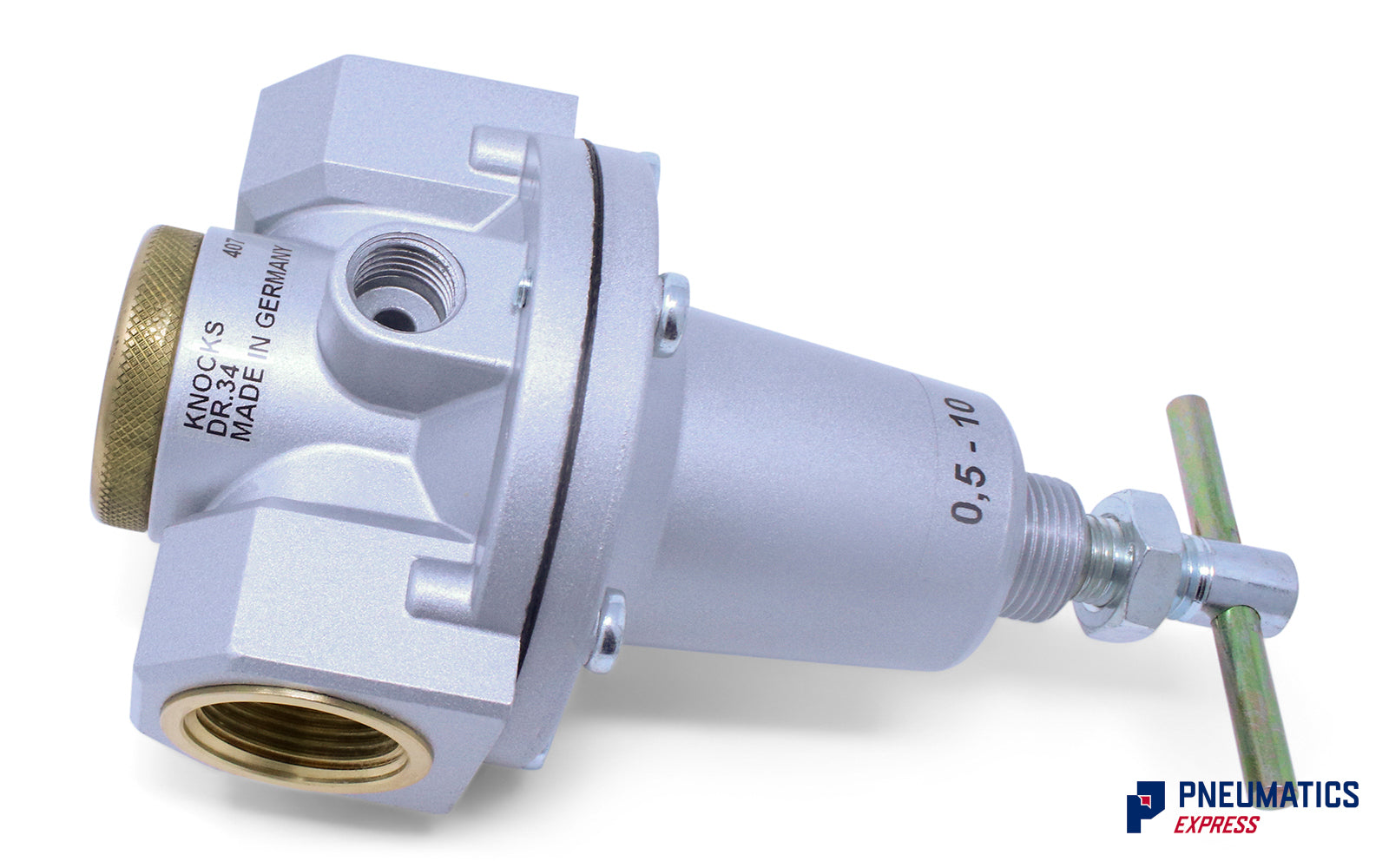

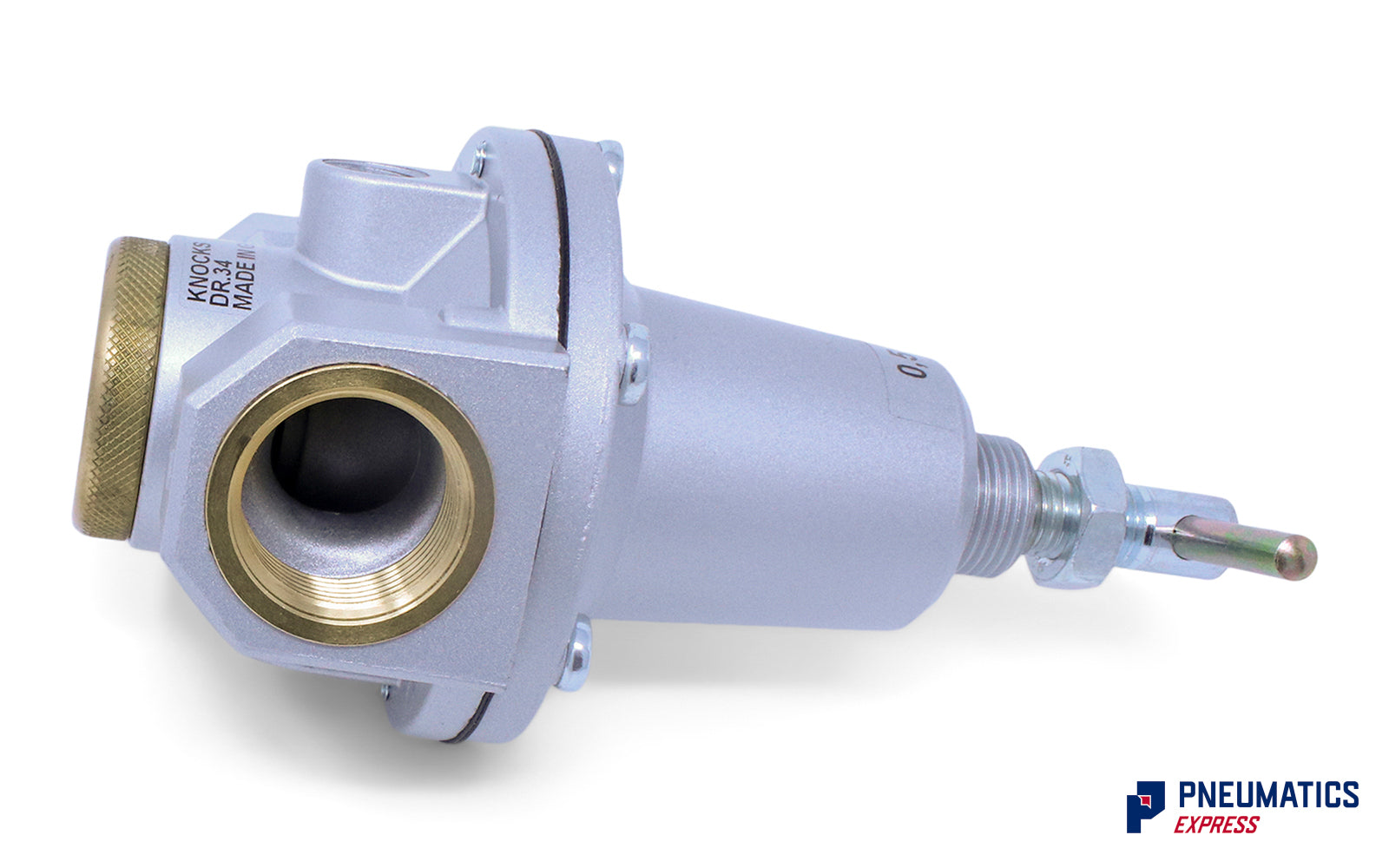

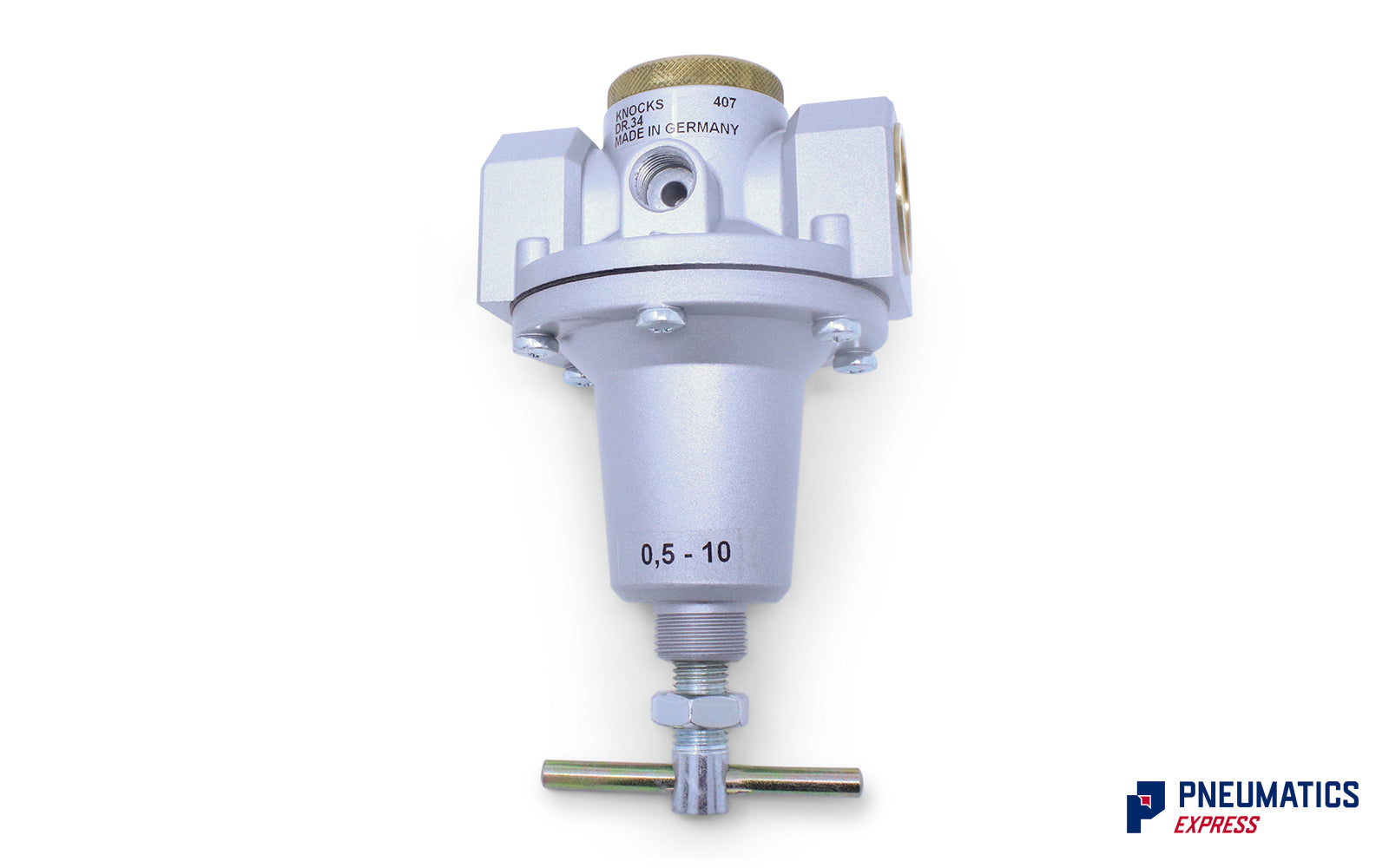

KNOCKS DR.34 Pressure Regulator effectively modulates pressure within a range of 0.5-10 bar in pneumatic systems. Manufactured in Germany, this pressure regulator features a diaphragm and relieving function. With a port size of G 3/4, it can withstand a maximum supply pressure of 25 bar. The regulator can be mounted arbitrarily and is suitable for use in environments with temperatures up to 80°C (other temperature ranges available upon request).
| Port size | G 3/4 |
| Description | Air line regulator with diaphragm and relieving feature |
| Mounting | Arbitrary |
| Supply pressure | Pe max.25 bar |
| Reduced pressure | Pa 0,5-10 bar standard.0,5-3 bar, 0,5-6 bar, 0,5-16 bar |
| Media and ambient temperature | Max. 80℃ (oth. temperature ranges available upon request) |
| Fixing | Panel mounting, Bracket |
