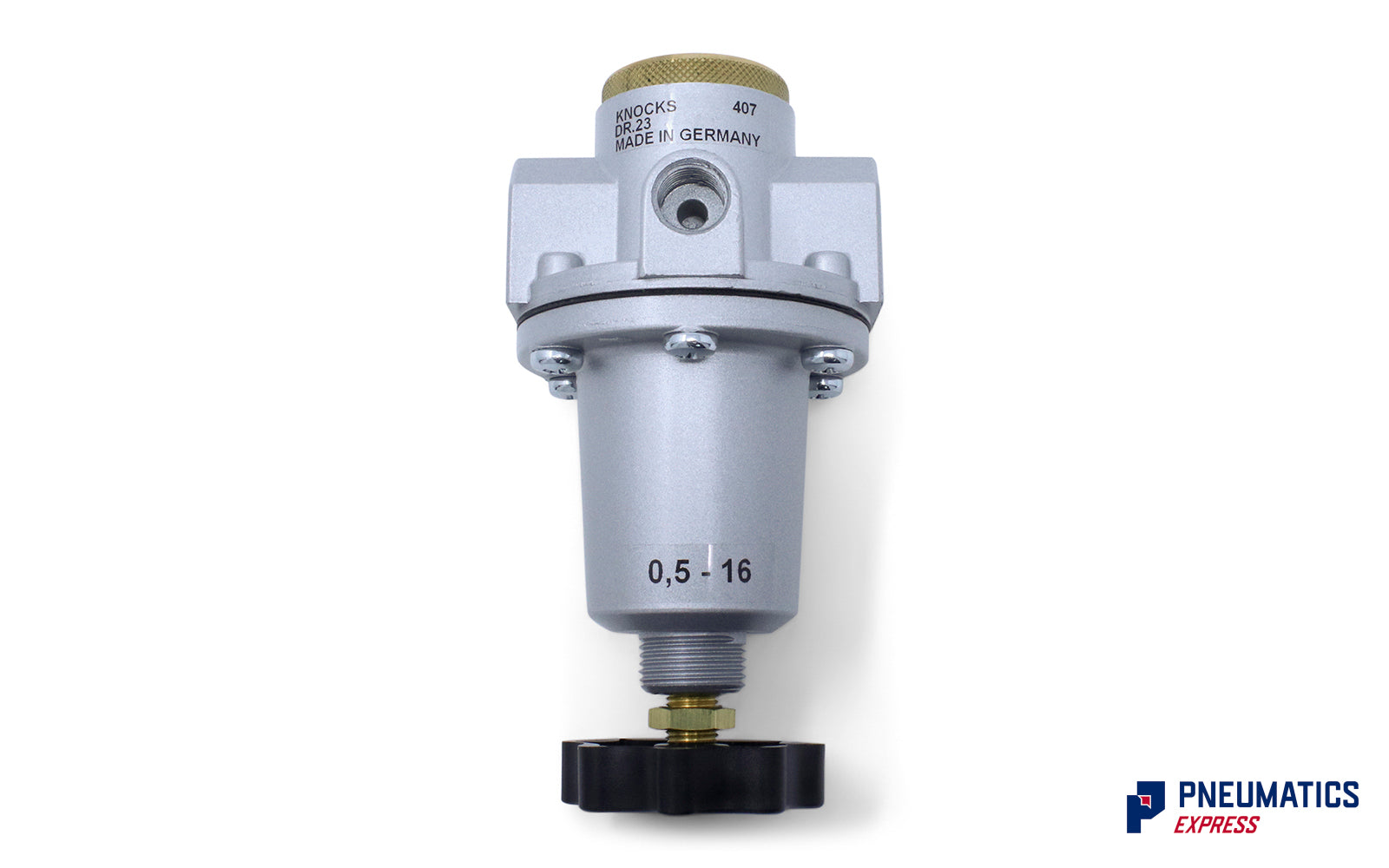

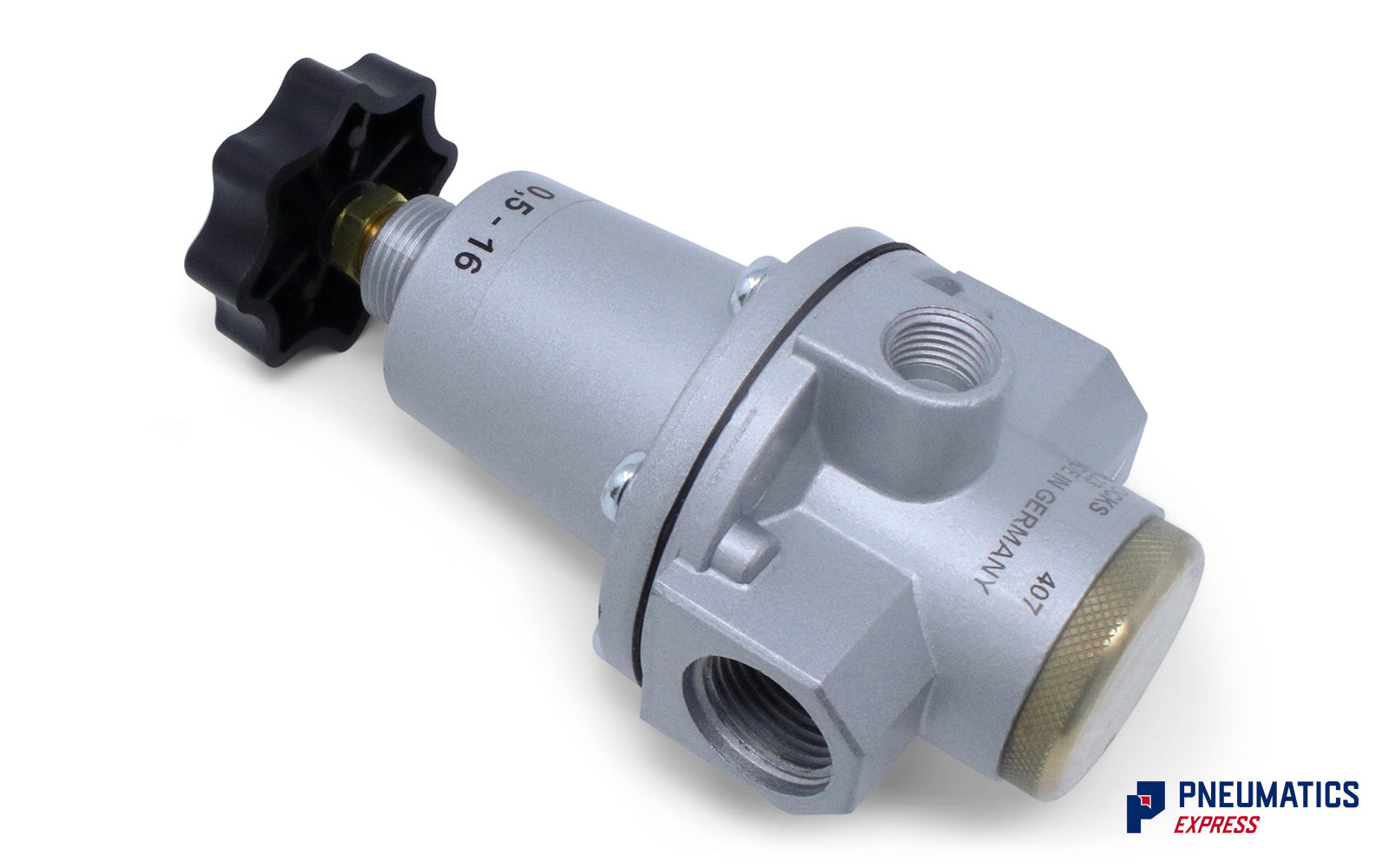

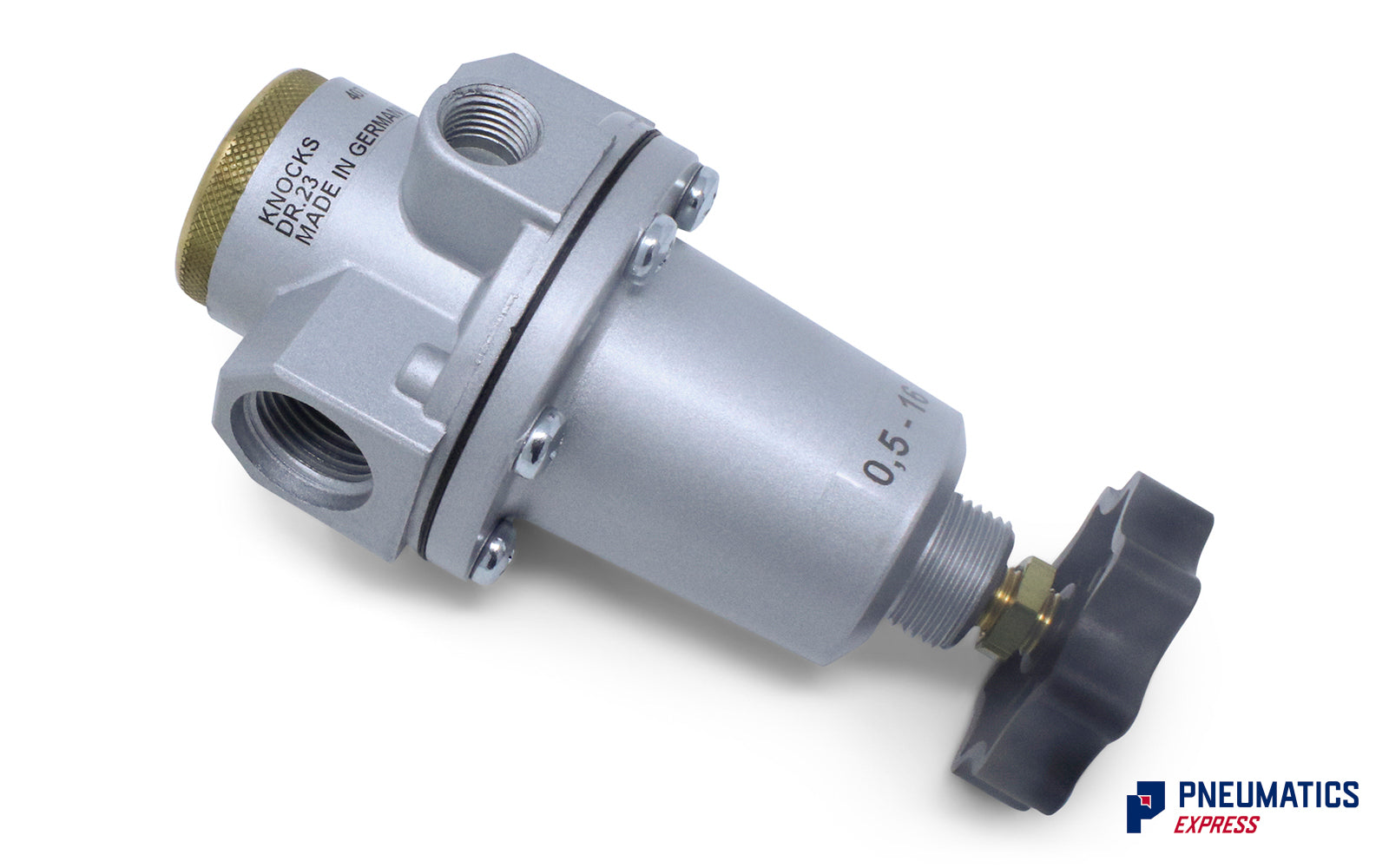

Knocks DR.23 Pneumatic Pressure Regulator 1/2" (0.5-10bar)
- Regular price
- $129.00
- Sale price
- $129.00
Fully in Stock
KNOCKS DR.23 Pneumatic Pressure Regulator controls air pressure, featuring a diaphragm and a relief valve. It can be mounted arbitrarily and has a maximum supply pressure of 25 bar. The reduced pressure range is typically 0.5-10 bar, but custom ranges such as 0.5-3 bar, 0.5-6 bar, or 0.5-16 bar are available. The regulator operates effectively in temperatures up to 80 degrees Fahrenheit (80°C), with alternative temperature ranges available on request.
| Port size | G 1/2 |
| Description | Air line regulator with diaphragm and relieving feature |
| Mounting | Arbitrary |
| Supply pressure | Pe max.25 bar |
| Reduced pressure | Pa 0,5-10 bar standard.0,5-3 bar, 0,5-6 bar, 0,5-16 bar |
| Media and ambient temperature | Max. 80℃ (oth. temperature ranges available upon request) |
| Fixing | Panel mounting, Bracket |
