Watson Stainless Steel 20 Bar Flange Pressure Gauge (Back Entry) 1/4" BSP

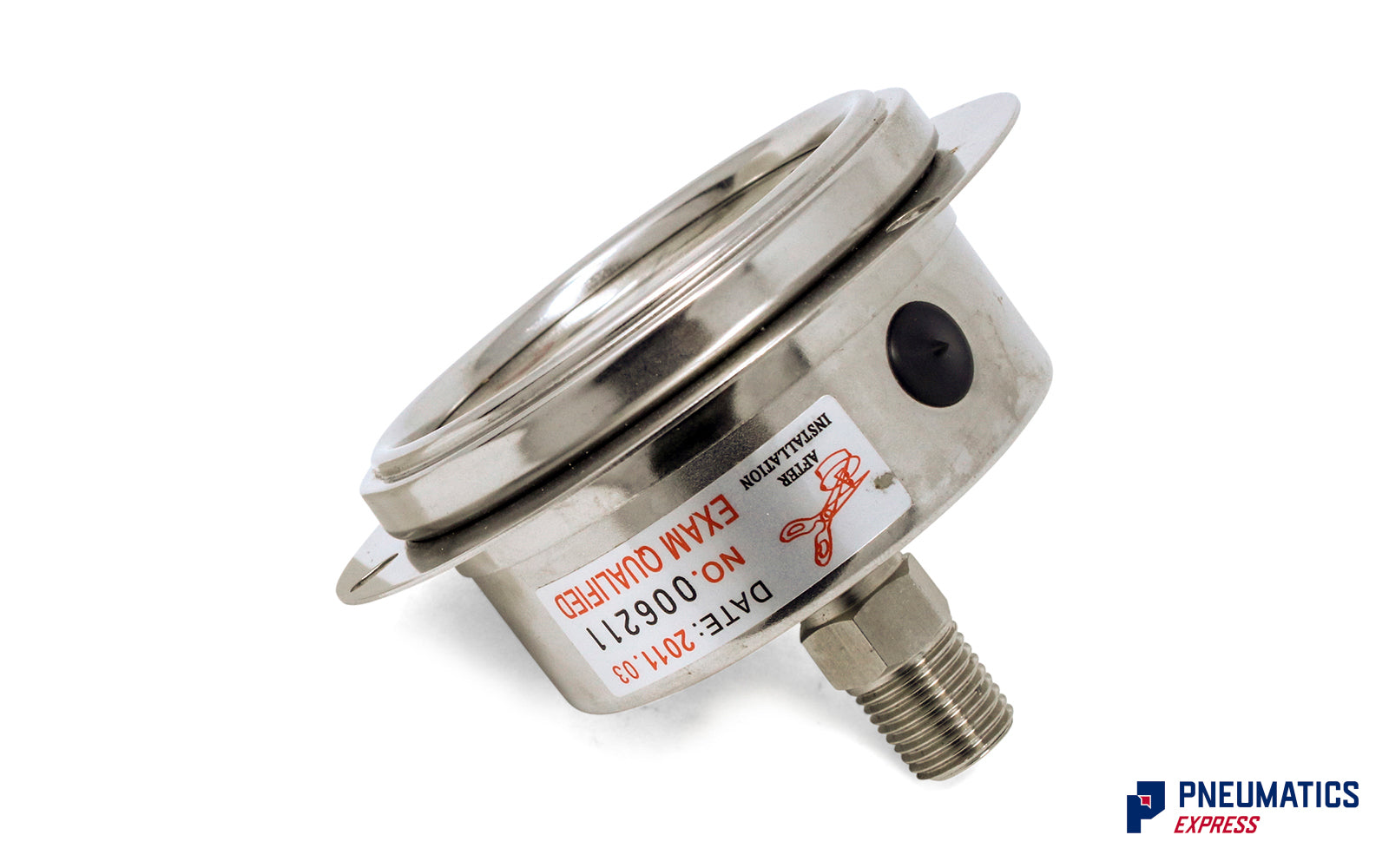

The Watson-Atlantis PG-20FA is a 20 Bar (300 PSI) Pressure Gauge in a stainless steel (AISI 316) body and has a G 1/4" BSPT thread at the bottom. This stainless steel gauge is an incredible a value proposition in that no other stainless steel gauge is offered at the same price point. This gauge is suitable for all general industrial uses and is a popular item amongst our gauges

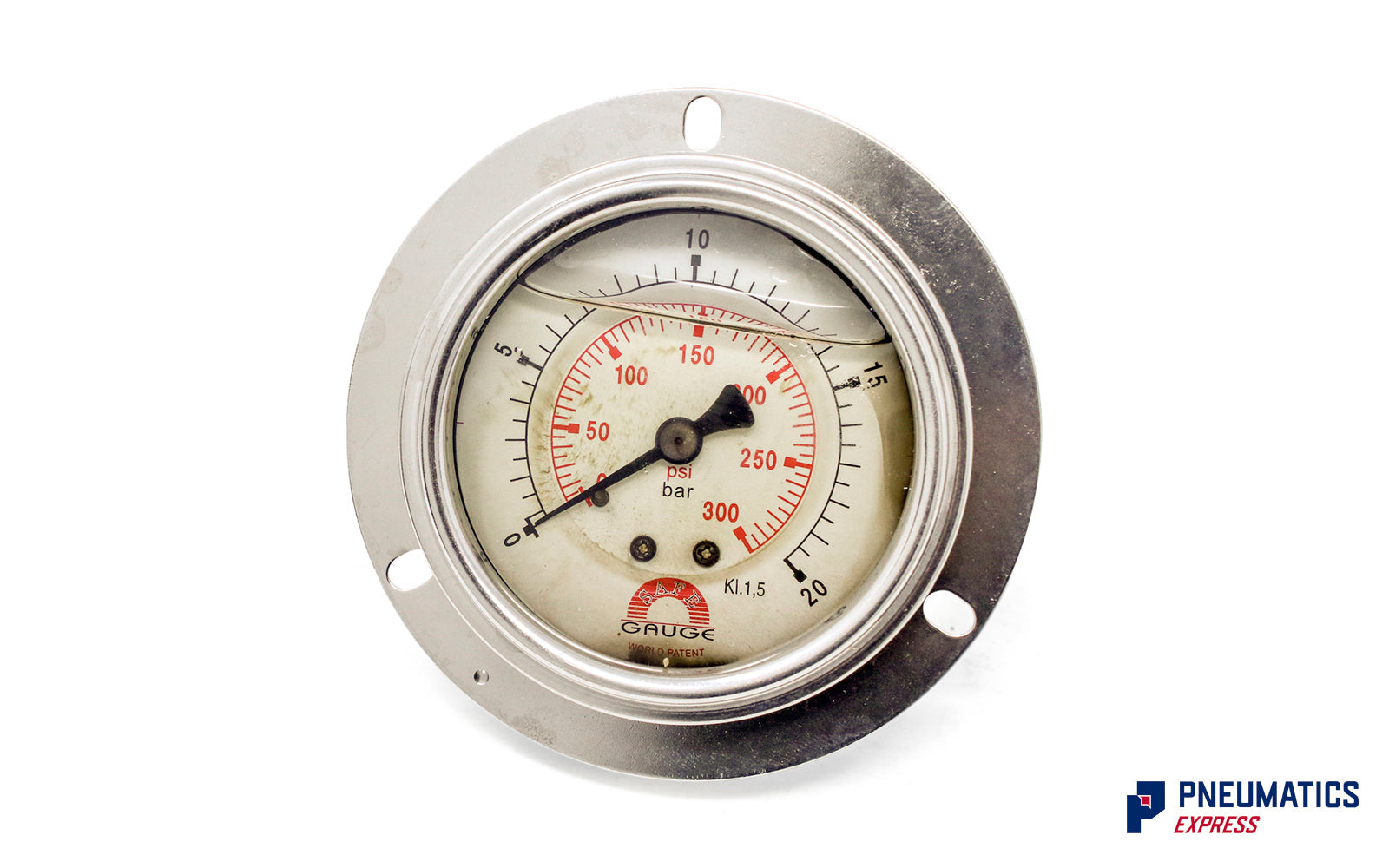

The polycarbonate dial surface allow for high readibility with a sharp black pointer. Dial has dual scales in PSI and BAR. The Dial Size is 63mm (2.5").
The Watson PG-20FA is also offered as a Gylcerin-filled variant which has anti-vibrational and anti-corrision properties.
Made in Taiwan.
Technical Specifications of Watson PG-20FA Pressure Gauge
| Dial Size | 63mm (2.5") |
| Material Composition | Stainless Steel 316 Chasis |
| Thread Entry Position | Back Entry |
| Thread Size and Type | G 1/4" BSP |
| Dial Units | PSI and Bar |
| Operating Temperature | -20 - +60 Celcius |
| Overrange Protection | 120% of Full Scale |
