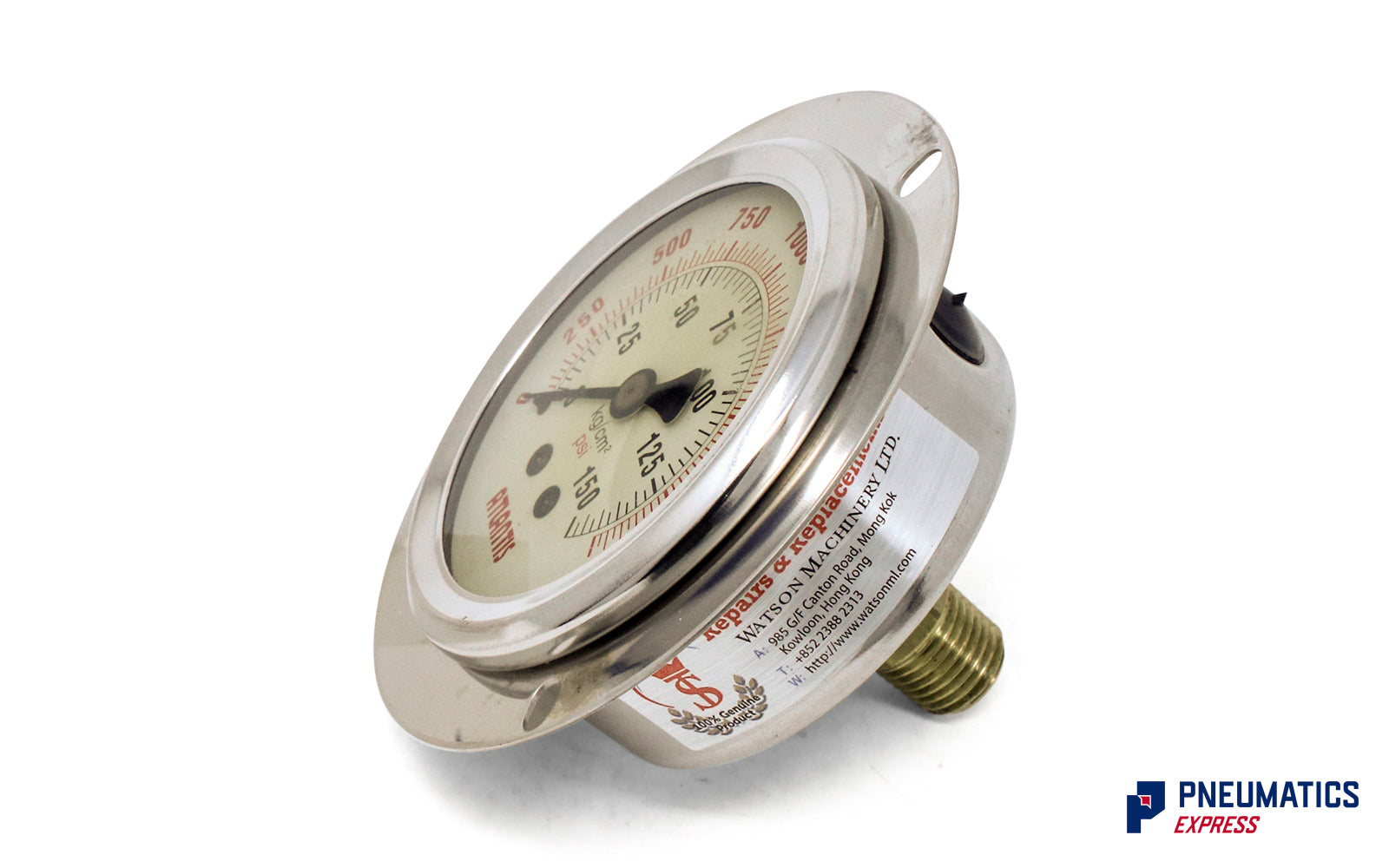

Watson Stainless Steel 150 Bar Flange Pressure Gauge (Back Entry) 1/4" BSP
The Watson-Atlantis PG-150FA is a 150 Bar (2000 PSI) Flange Pressure Gauge in a stainless steel (AISI 316) body and has a G 1/4" BSPT thread at the back. This is a value proposition that is suitable for all general industrial uses and designed to be panel mounted.
There is no other stainless steel gauge offered at such a unrivalled price point. One of our top pressure gauge sellers in the UK.

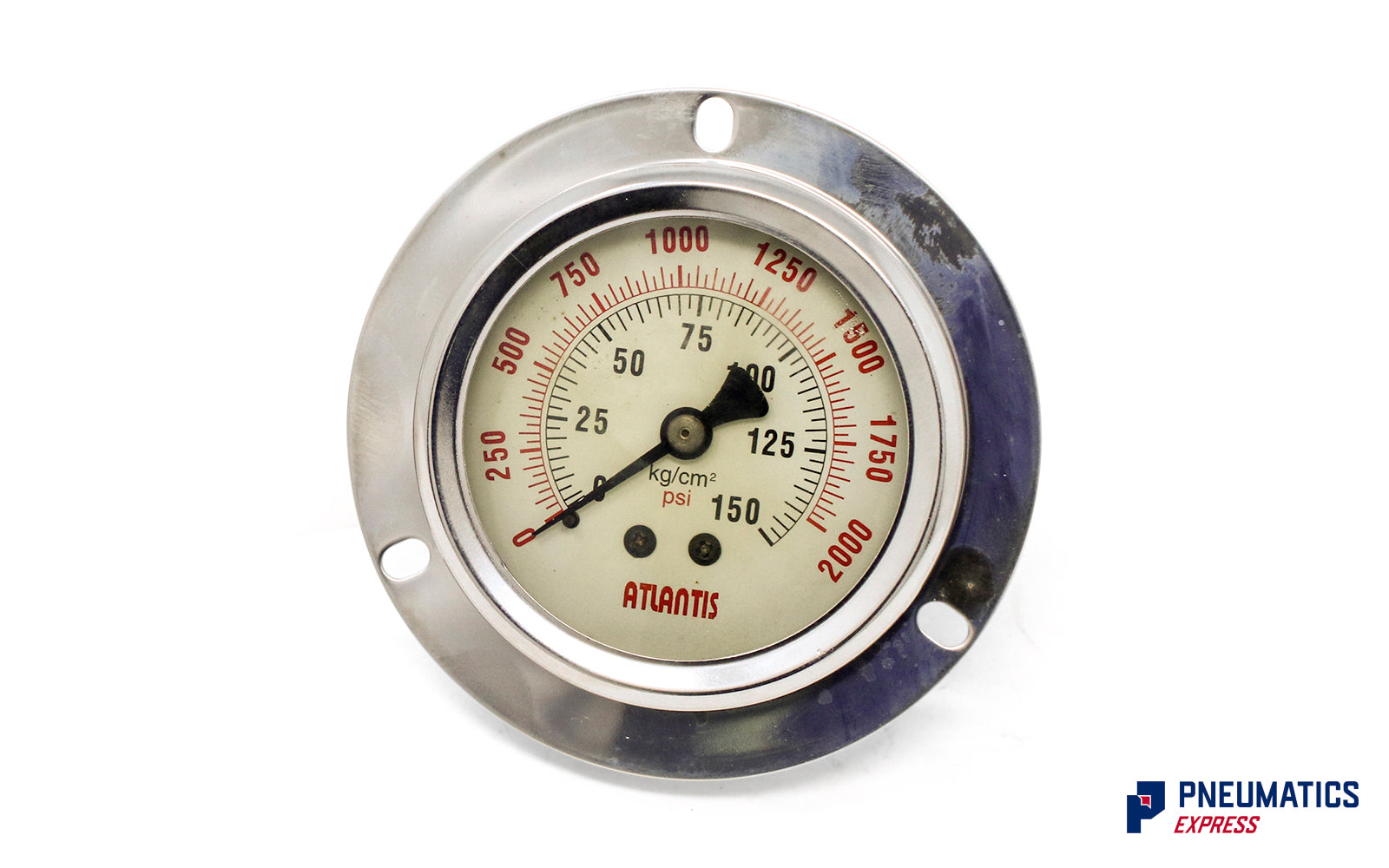

The Dial Size is 63mm (2.5"). The polycarbonate dial surface allow for high readibility with a sharp black pointer. Dial has dual scales in PSI and BAR.
The Watson PG-100FA is Gylcerin-filled which has anti-vibrational and anti-corrision properties.
Made in Taiwan.
Technical Specifications of Watson PG-100BK Pressure Gauge
| Dial Size | 63mm (2.5") |
| Material Composition | Stainless Steel 316 Chasis |

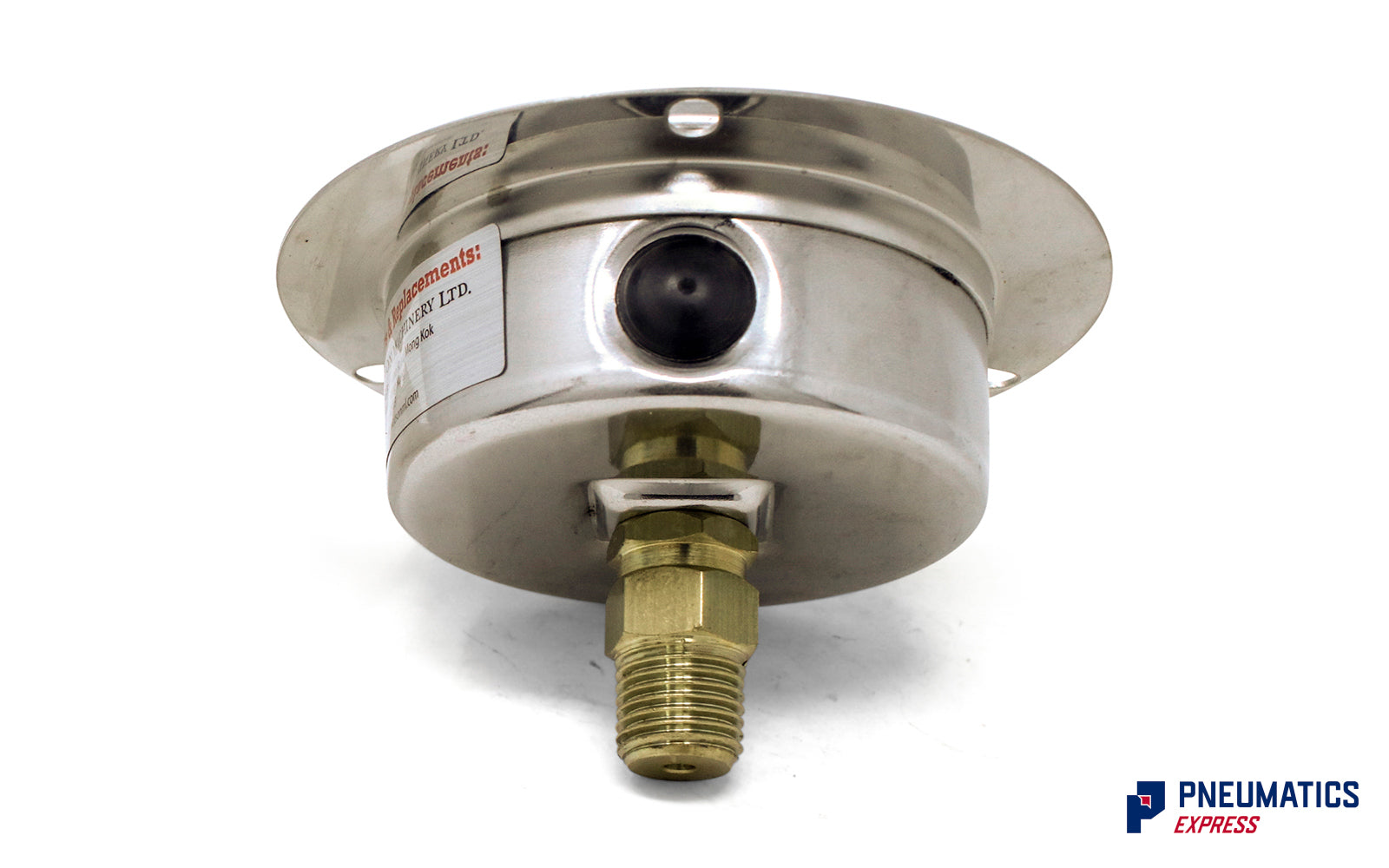

| Thread Entry Position | Back Entry |
| Thread Size and Type | G 1/4" BSP |
| Dial Units | PSI and Bar |
| Operating Temperature | -20 - +60 Celcius |
| Overrange Protection | 120% of Full Scale |
