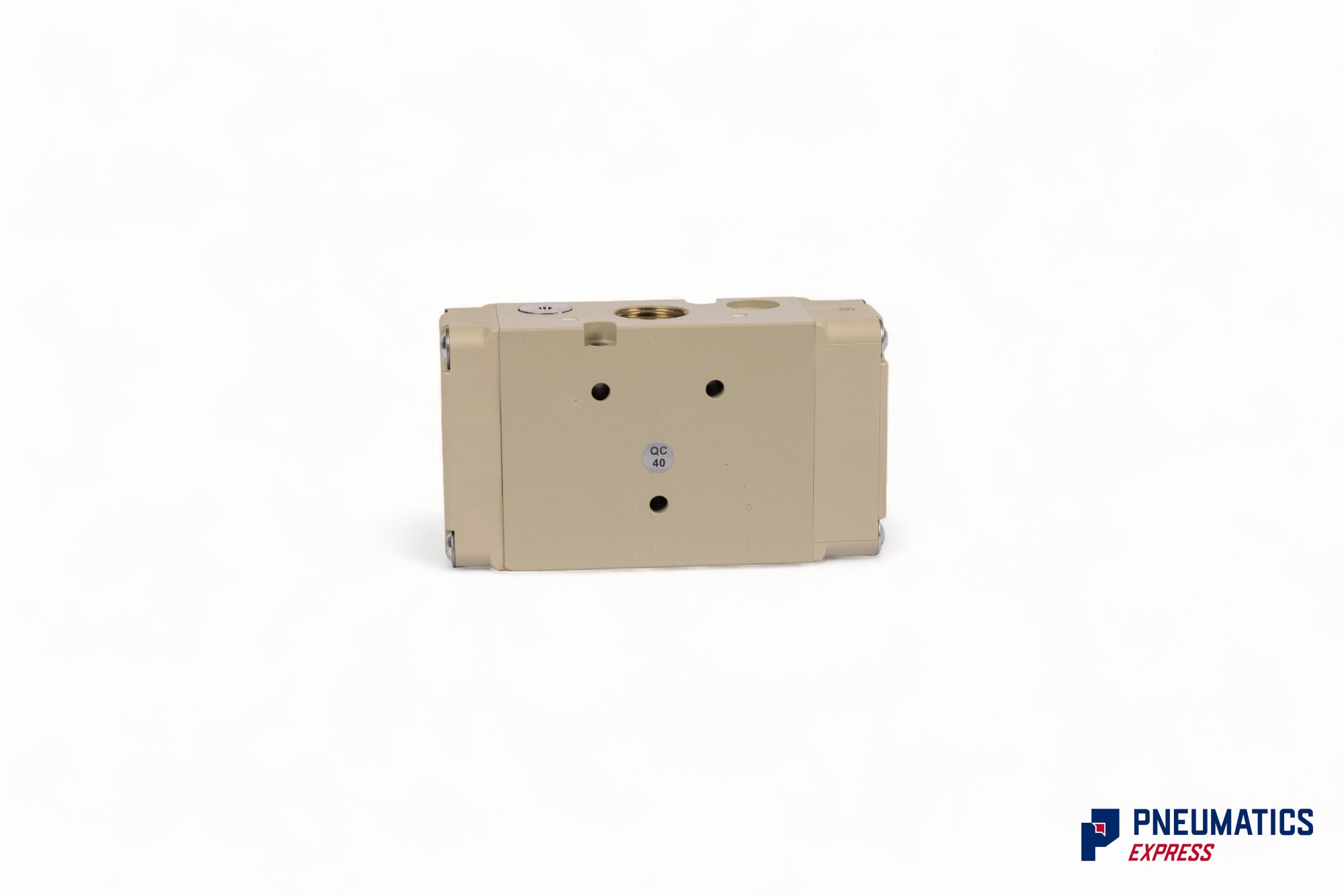

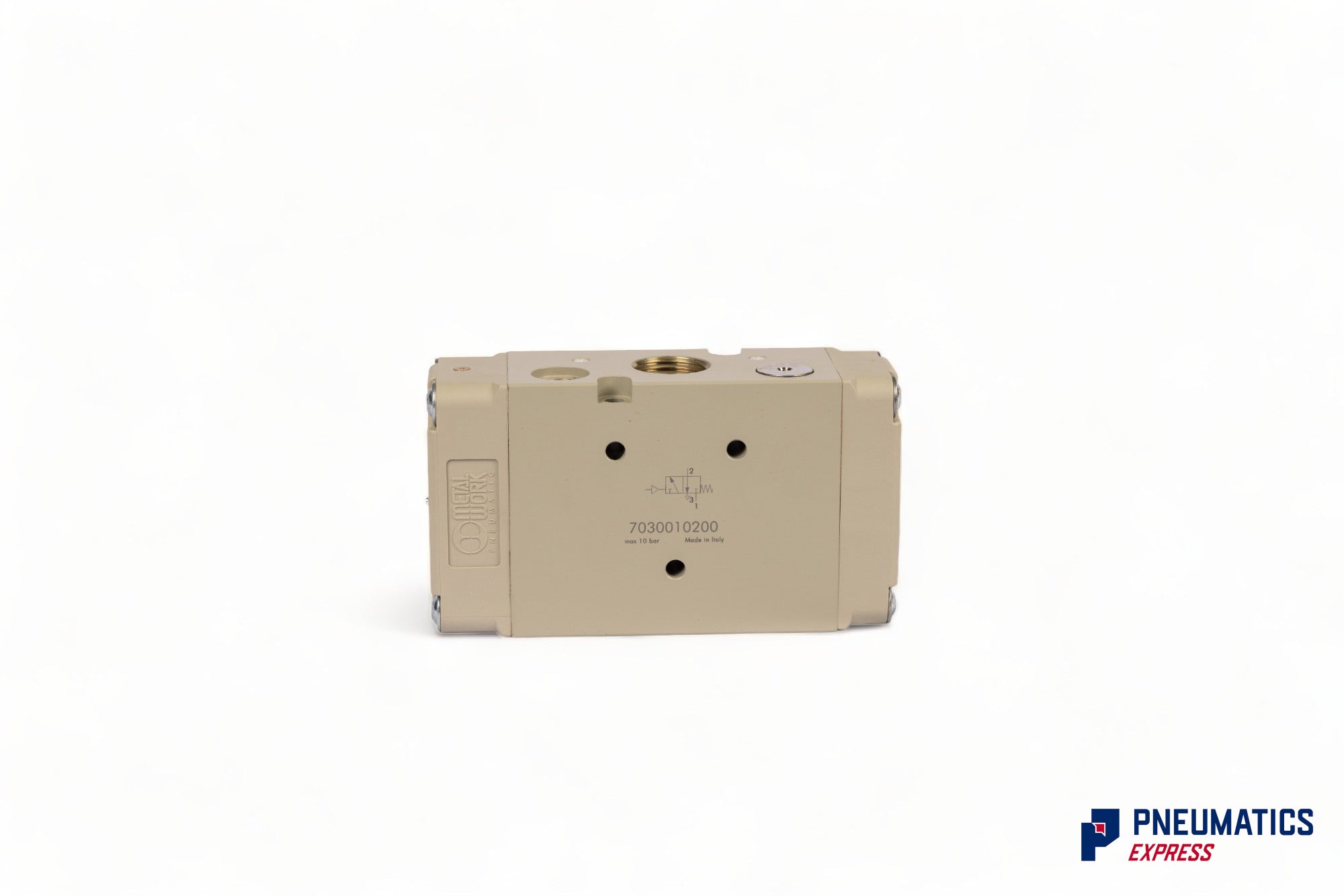

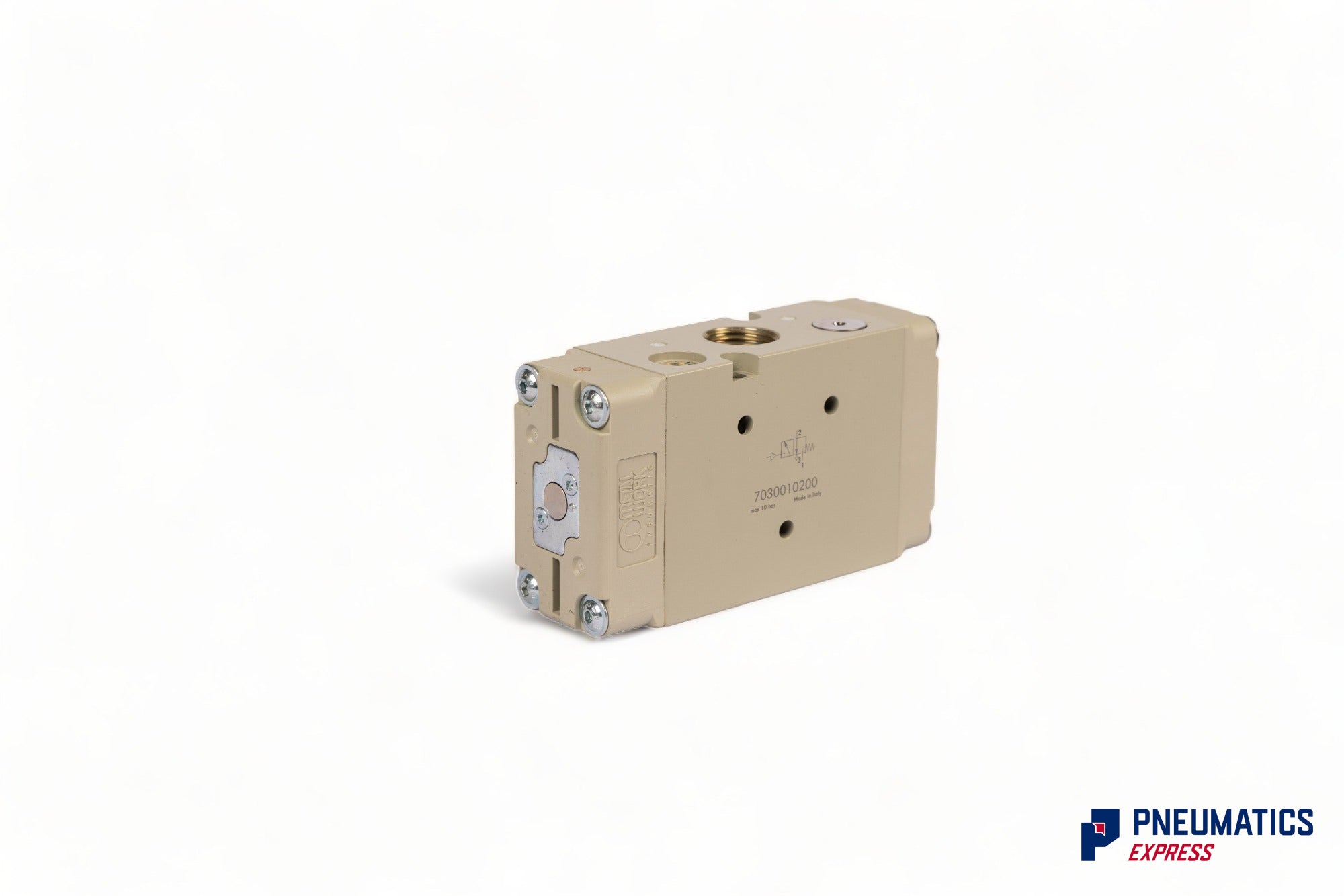

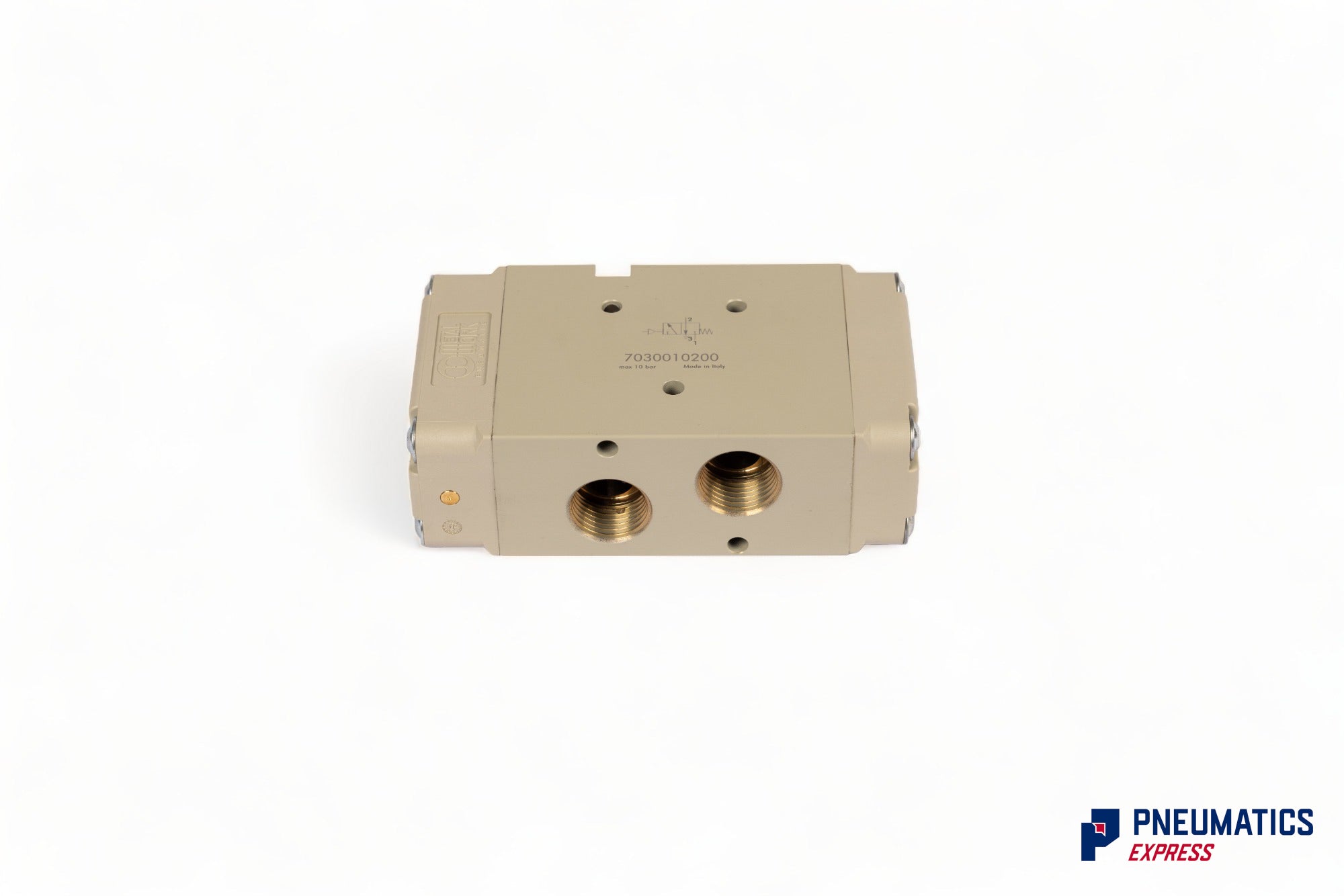

Metal Work PNV 43 PNS NC Pneumatic Pilot Valve (7030010200) 1/2" 3/2

The Metal Work PNV 43 PNS NC Pneumatic Pilot Valve (part number 7030010200) is a 1/2" 3/2 valve that is spring return and normally closed. It has a G 1/2" (BSPP) port size and thread and operates on a pneumatic pilot. The minimum pilot pressure is 2.5 bar (monotable) or 1 bar (bistable), and the nominal diameter is 7.5mm. The flow rate at 6 bar ΔP 0.5 bar is 3200 Nl/min, and the flow rate at 6 bar ΔP 1 bar is 4600 Nl/min. The valve is made in Italy and has an aluminum chassis.
