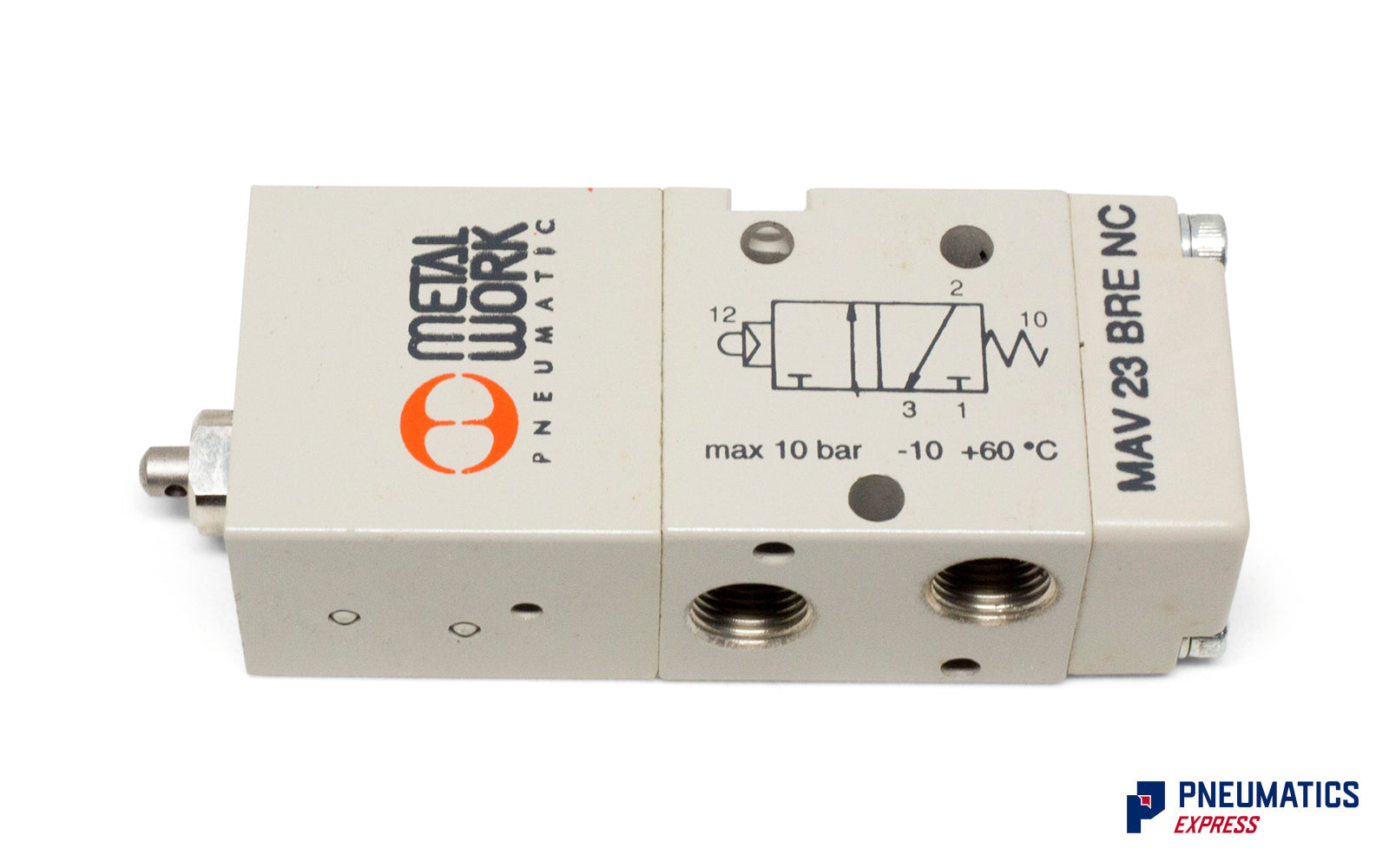

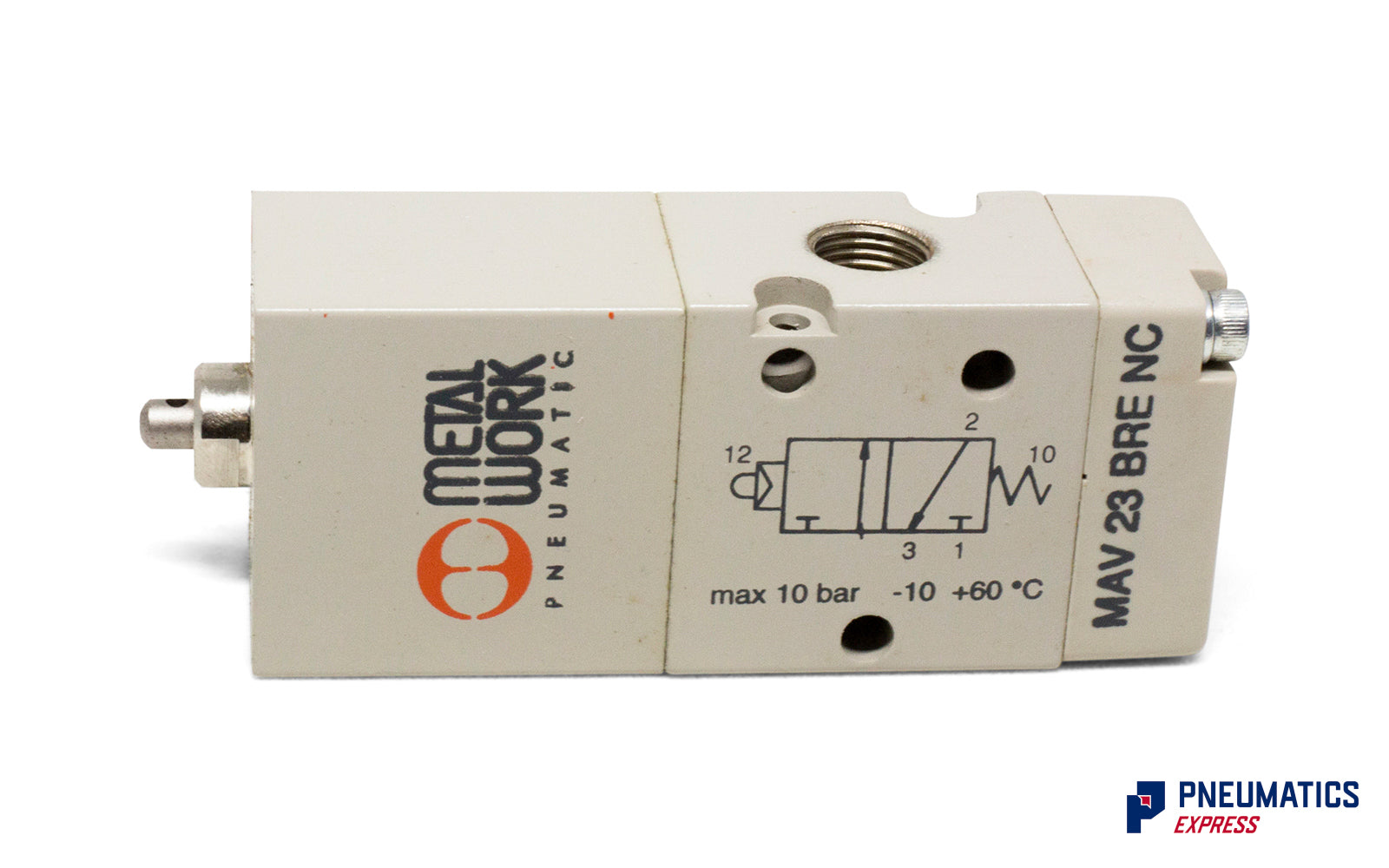

Metal Work MAV 23 BRE NC Manual Valve (7010001800) 1/8", 3/2
The MAV 23 BRE NC manual valve is a pilot-assisted plunger pneumatic valve manufactured by Metal Work. This valve features a 1/8" size, 3/2 function, and normally closed operation. With an operating pressure range of 2.5 to 10 bar and a temperature range of -10 to +60 degrees Celsius, it is well-suited for industrial automation and motion control applications. Constructed with an aluminum chassis and made in Italy, this valve delivers high performance and durability.
Operating Pressure Range: |
Pilot-Assisted: 2.5 to 10bar |
Operating Temperature Range | -10 to +60 Celsius |
Nominal Diameter | 5mm |
Conductance (Nl/min - bar) | 121.43 |
Flow Rate at 6 bar ΔP 0.5 bar (Nl/min) | 400 |
Flow Rate at 6 bar ΔP 1 bar (Nl/min) | 550 |
