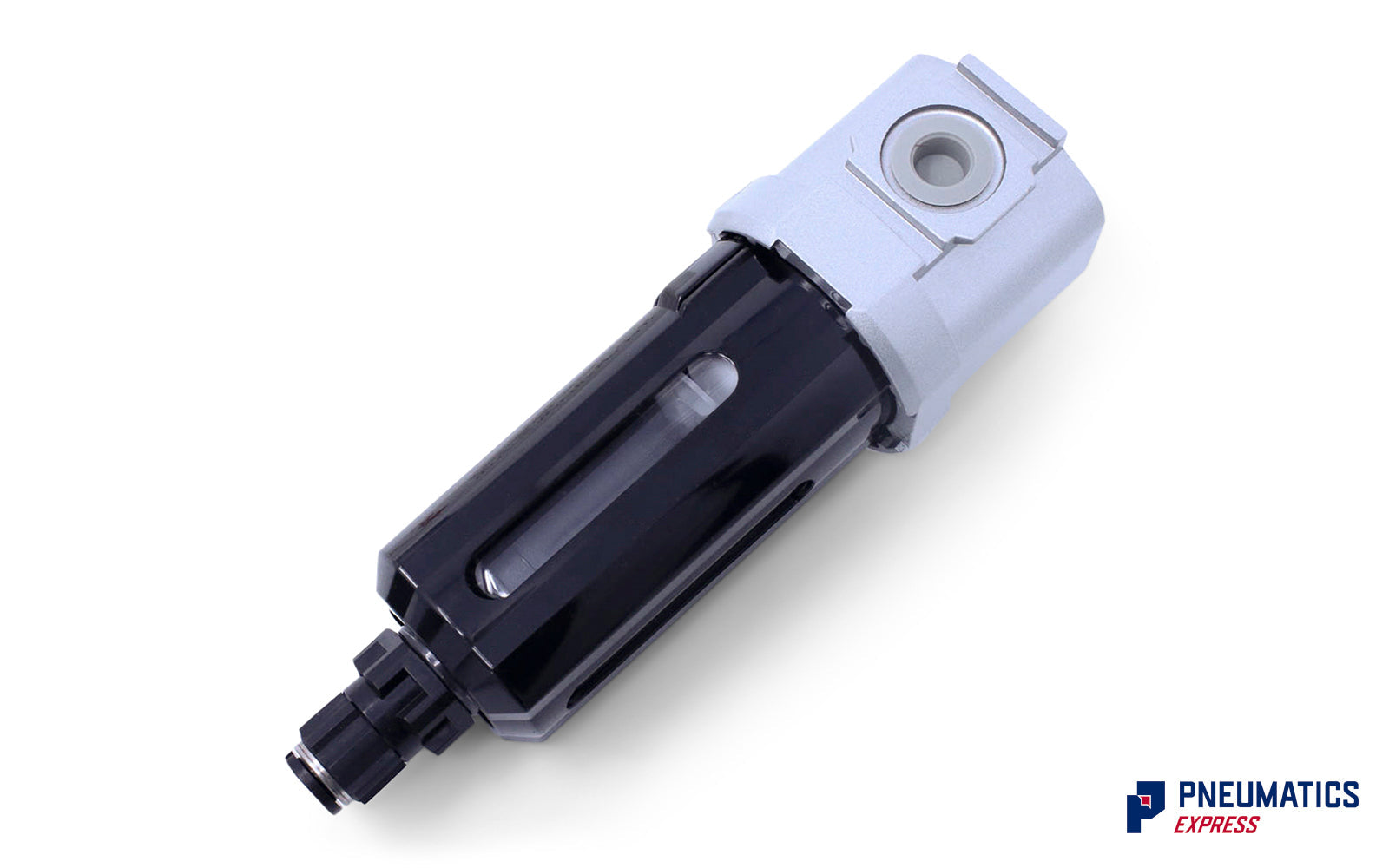

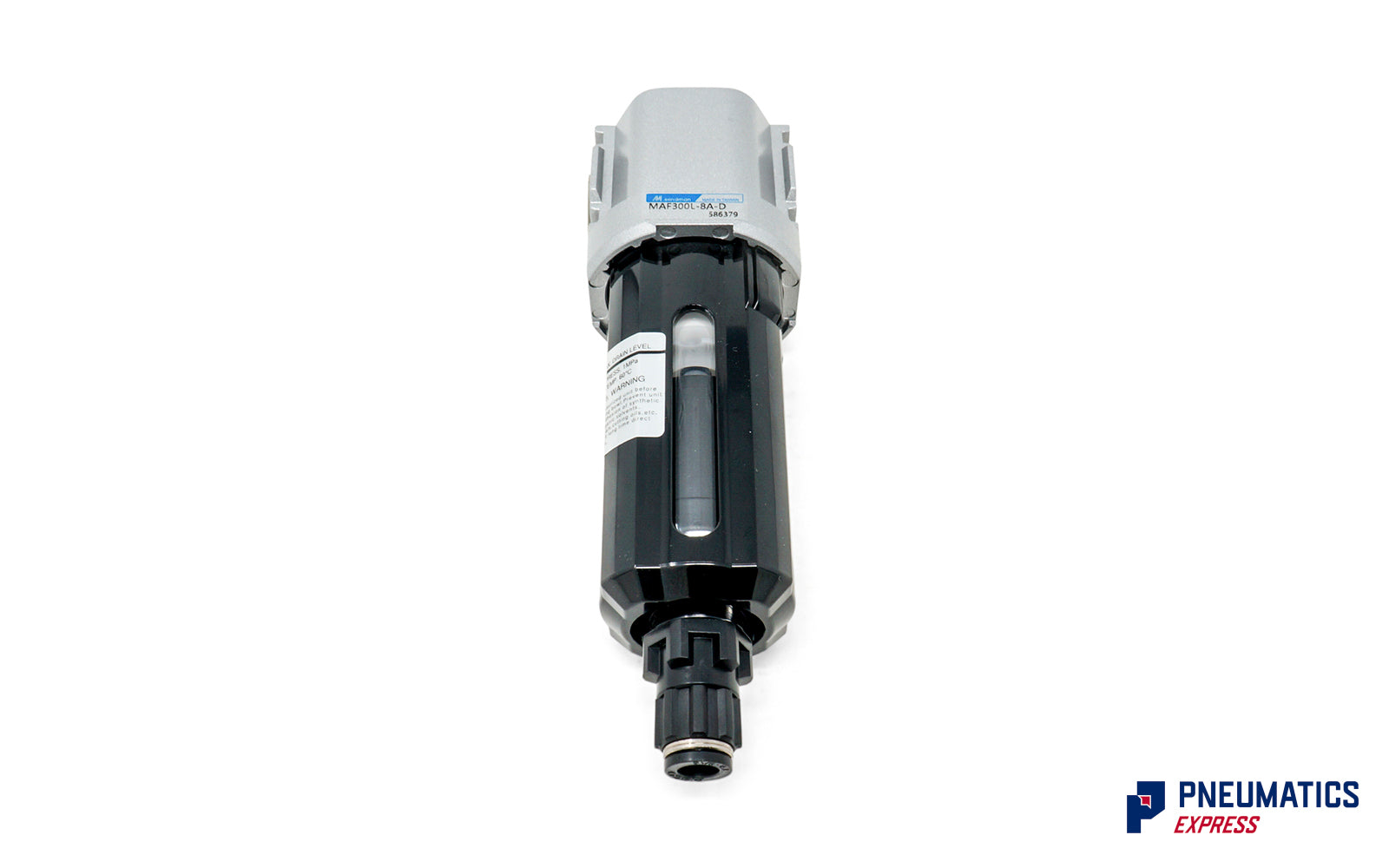

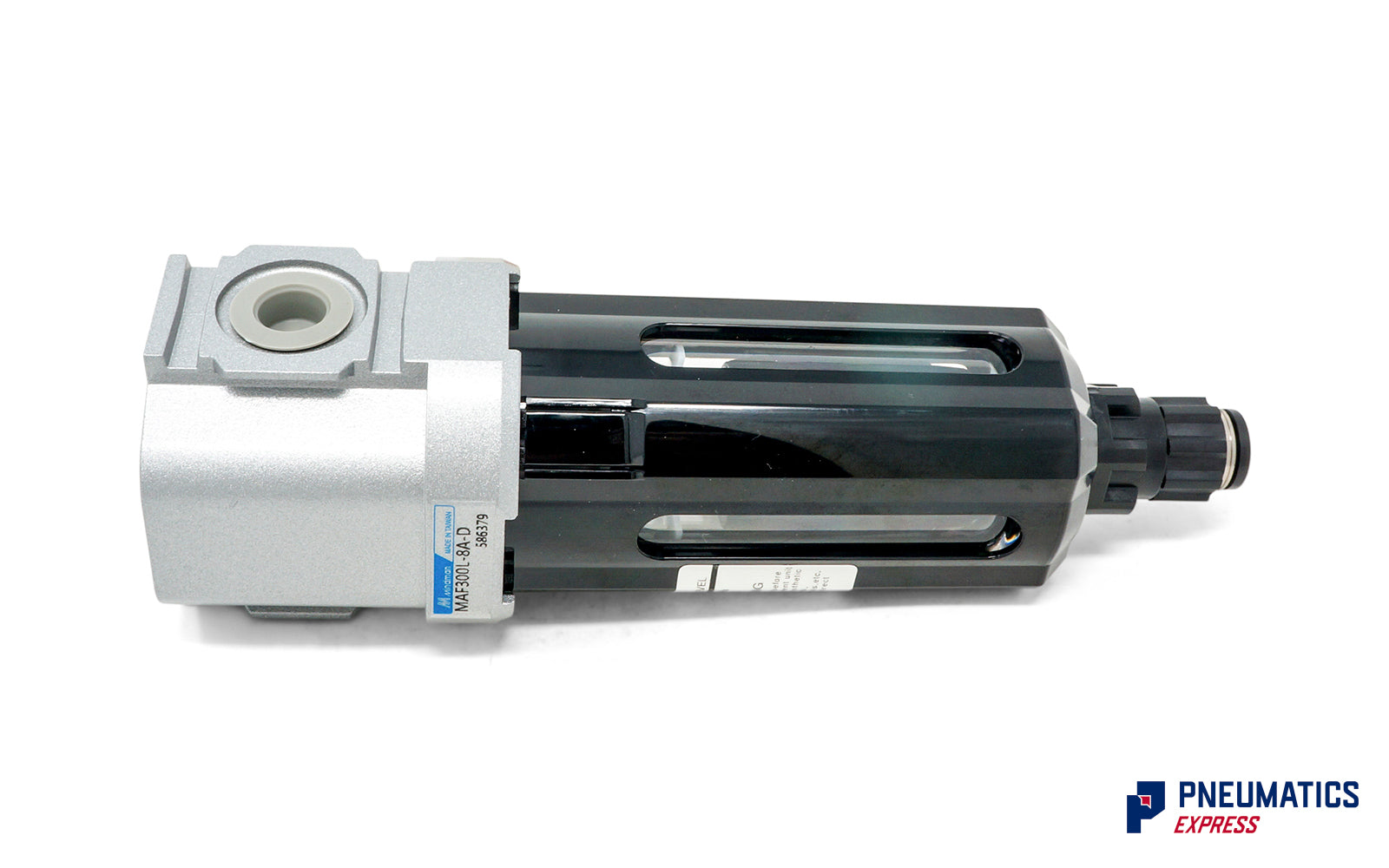

Mindman MAF300L-8A-D Air Filter Auto Drain 1/4"
- Regular price
- $49.60
- Sale price
- $49.60
Fully in Stock
The Mindman MAF300L-8A-D Air Filter Auto Drain is a 1/4-inch BSP Air Filter designed for pneumatic systems. It features simple mounting options, durability, and high reliability. With an operating pressure range of 0.05 to 1 MPa and a proof pressure of 1.5 MPa, it is suitable for various industrial applications. The standard filter element has a 5-micron filtration rating, and an optional 40-micron element is available. The auto drain has a capacity of 40 cm³, ensuring efficient drainage of condensed water.
| Model | MAF300L |
| Bore no. | 8A /10A |
| Port size | 1/4 / 3/8 |
| Medium | Air |
| Operating pressure range | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Filter element | Standard: 5μm Option: 40μm |
| Drain capacity | 40 cm³ |
