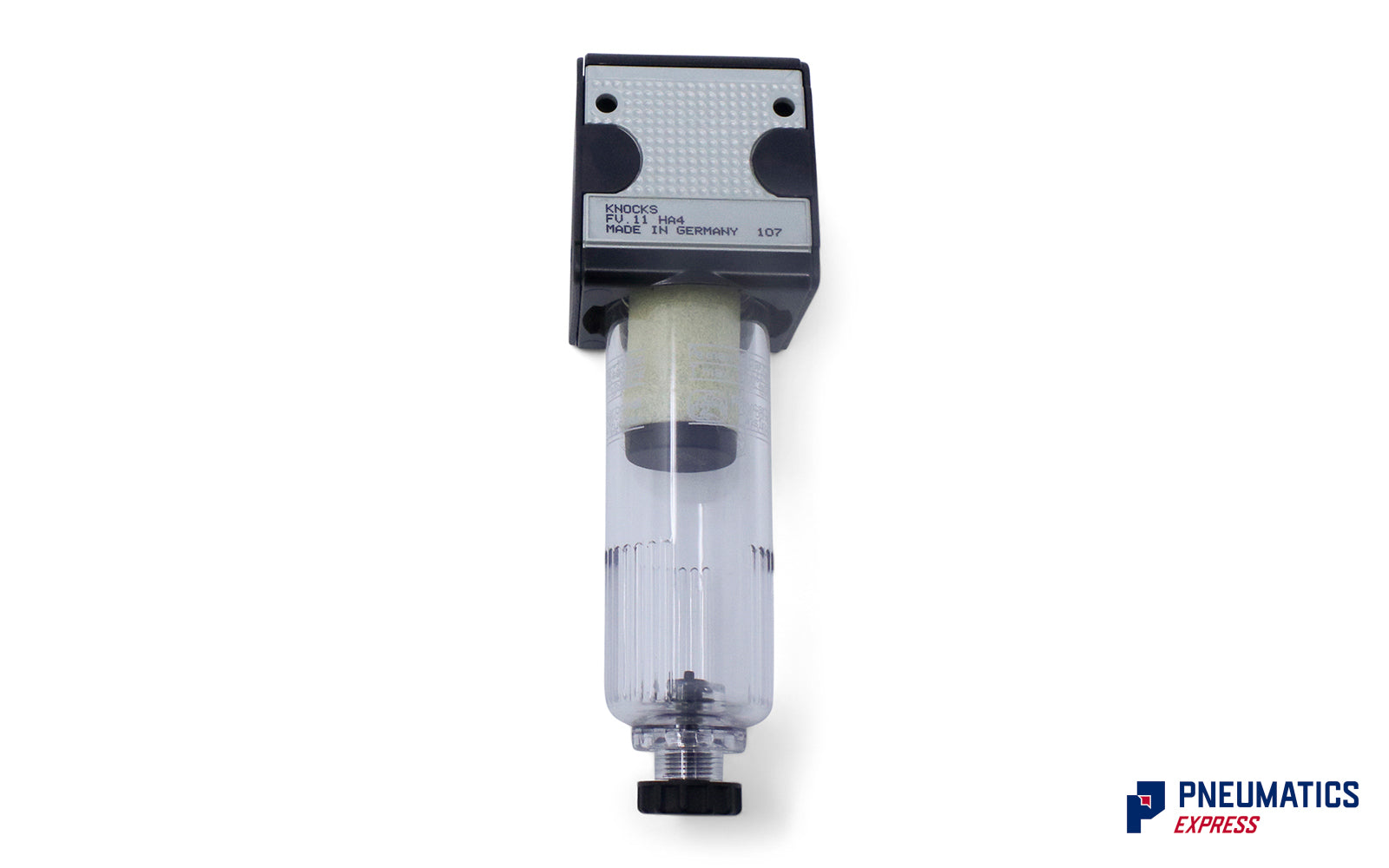

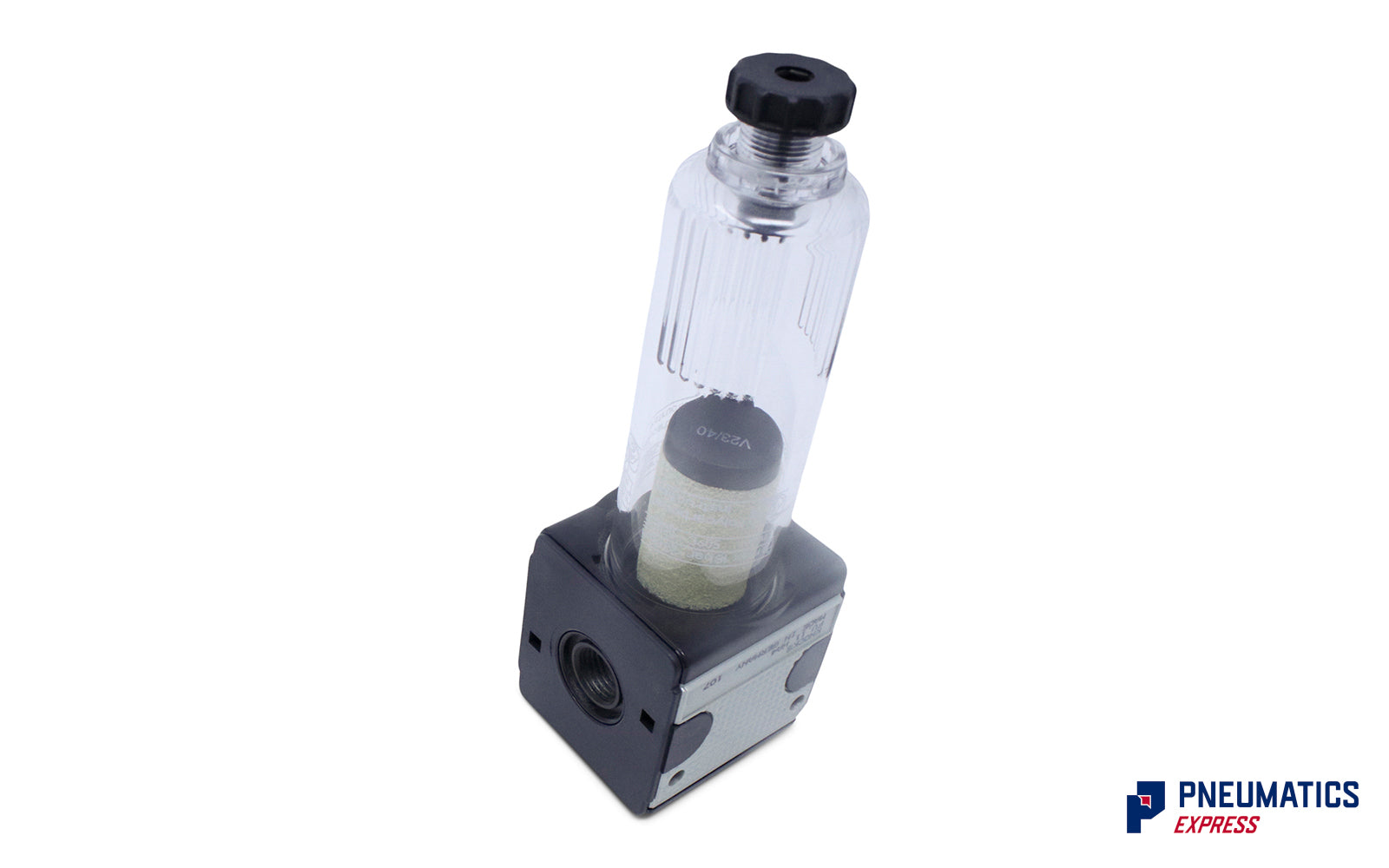

Knocks FV.11 HA4 Pneumatic Filter, 0.3 μm, 1/4"
- Regular price
- $124.10
- Sale price
- $124.10
Fully in Stock
The KNOCKS FV.11 HA4 Pneumatic Filter is designed for airline air treatment in industrial machinery, automation, and fluid power systems. Made in Germany, it features a G 1/4 port size and a fine-filter rating of 0.3 microns. With a maximum supply pressure of 16 bar and a minimum of 0.5 bar, it can achieve a particle separation of 99.999% at 0.3 microns. The filter's nominal discharge is 160 l/min, with a maximum bowl volume of 10 cm³. It is equipped with a manual drain as standard and can be mounted vertically with a drain plug at the bottom. Additionally, it can be fixed using two holes in the body or a bracket.
| Port size | G 1/4 |
| Description | Prefilter 0.3 μm |
| Mounting | Vertically, drain plug at bottom |
| Supply pressure | Pe max.16 bar Pe min.0,5 bar Pe min. 1,5 bar with auto drain |
| Particle separation | > 0.3 μm 99,999% |
| Media and ambient temperature | Max. 50℃ (oth. temperature ranges available upon request) |
| Nominal discharge | Qn 160 l/min |
| Bowl volume | Max. 10 cm³ |
| Drain model | Manual drain (MAN) standard |
| Fixing | 2 holes in the body or Bracket |
