Knocks DF.34 MAN Pneumatic Filter 3/4" (Germany)
- Regular price
- $128.10
- Sale price
- $128.10
Fully in Stock

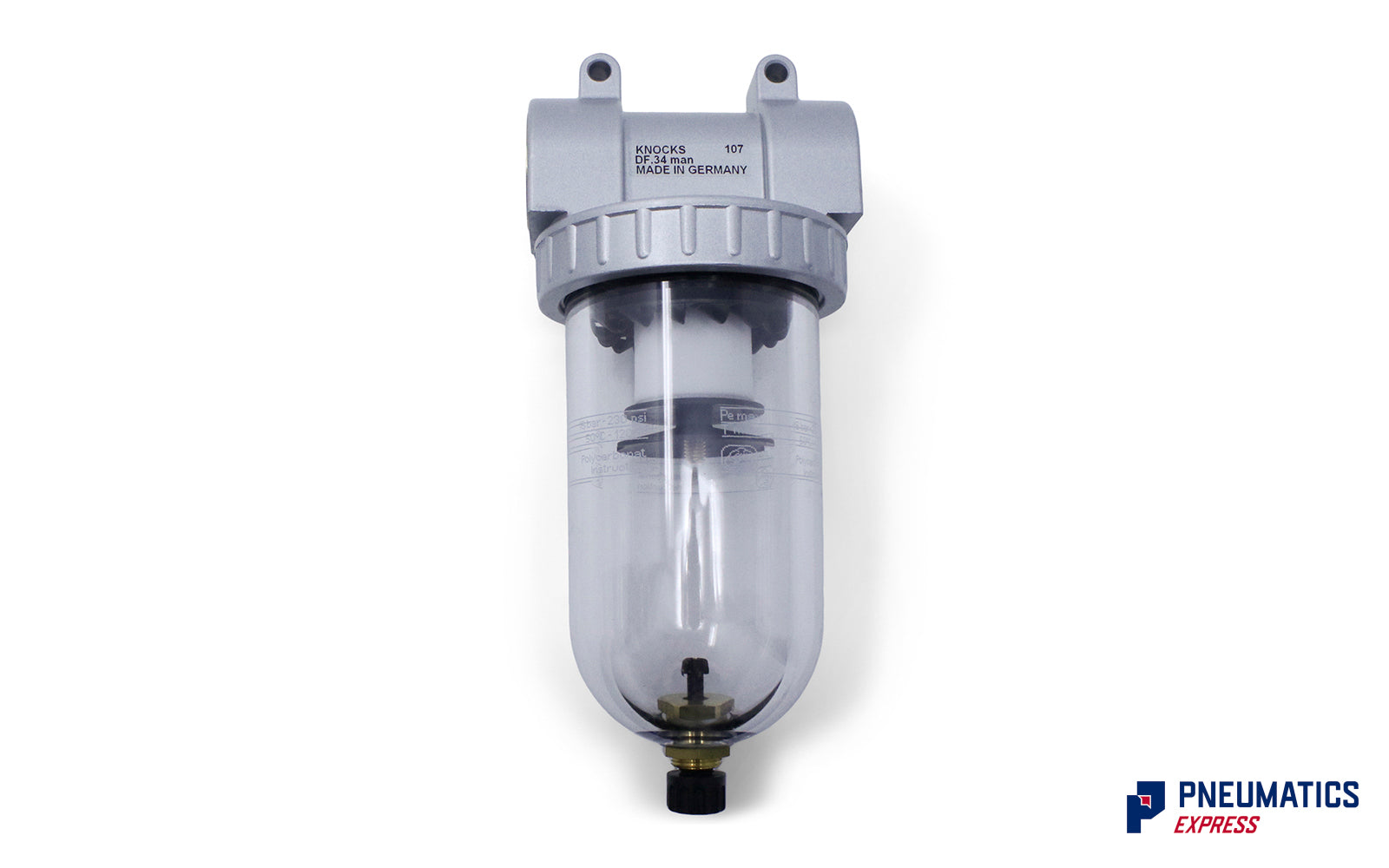

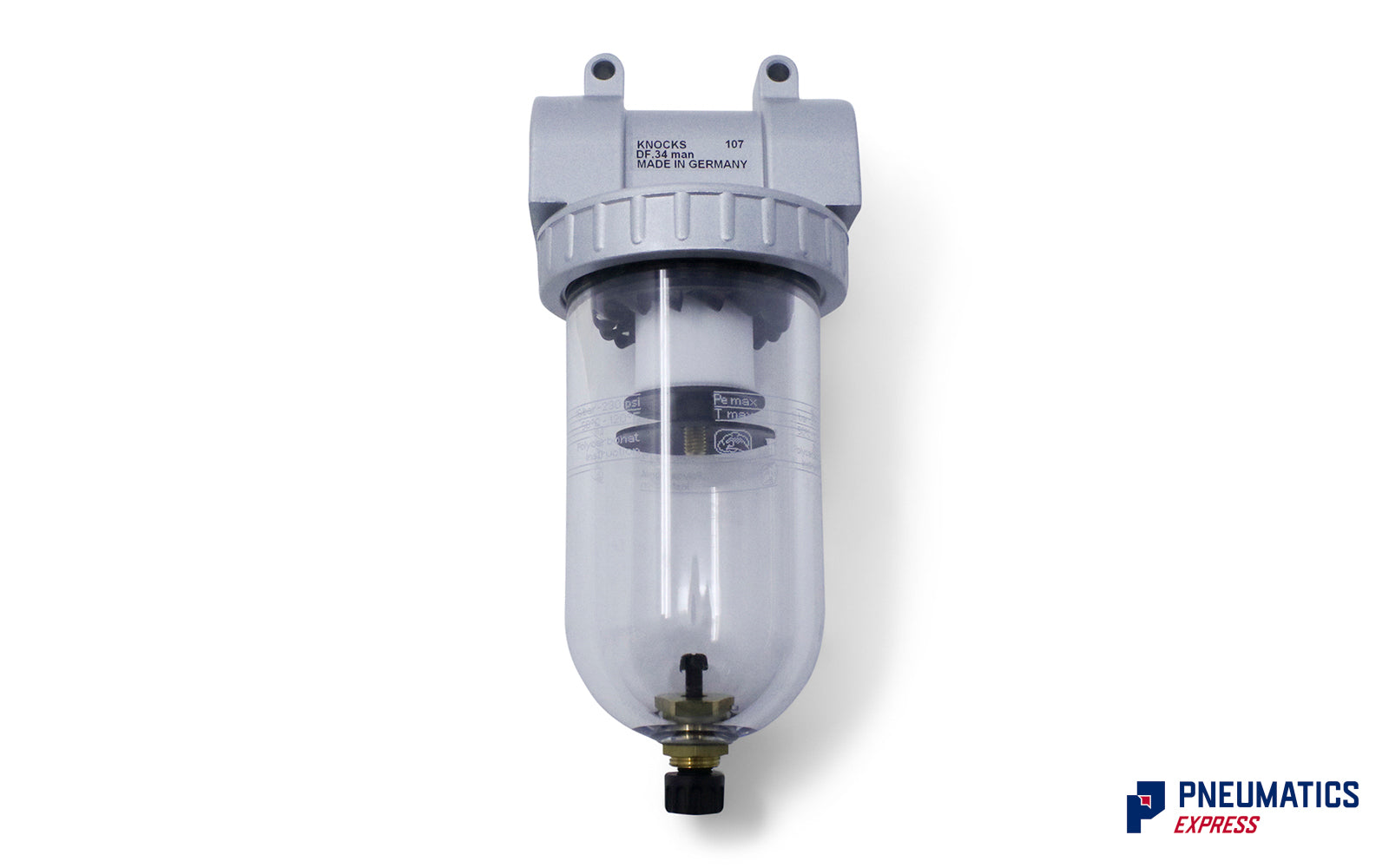

The Knocks DF.34 manual drain filter, made in Germany, features a G 3/4 port connection. Its zinc chassis and polycarbonate bowl ensure durability, while the drain plug at the bottom facilitates efficient drainage. Operating on the centrifugal force principle with a 40 µm sintered filter, the filter effectively traps impurities. For specific temperature requirements, alternative options are available upon request. It can be mounted vertically, providing a reliable solution for filtering industrial machinery fluids.
| Port size | G 3/4 |
| Description | Centrifugal force principle with sintered filter |
| Mounting | Vertically, drain plug at bottom |
| Supply pressure | Pe max.16 bar (also with automatic drain) Pe max. 25 bar with metal bowl Pe min. 1,5 bar with semi- and auto drain |
| Filter element | 40 μm standard, 8μm (absolutely) |
| Media and ambient temperature | Max. 60℃ (oth. temperature ranges available upon request) |
| Bowl volume | Max. 65cm³ condensation volume |
| Drain model | Manual drain standard, optional semi and auto drian |
| Fixing | Bracket |
