Knocks DF.12 AM10 Pneumatic Filter, 3/8" Auto Drain
- Regular price
- $104.20
- Sale price
- $104.20
Fully in Stock

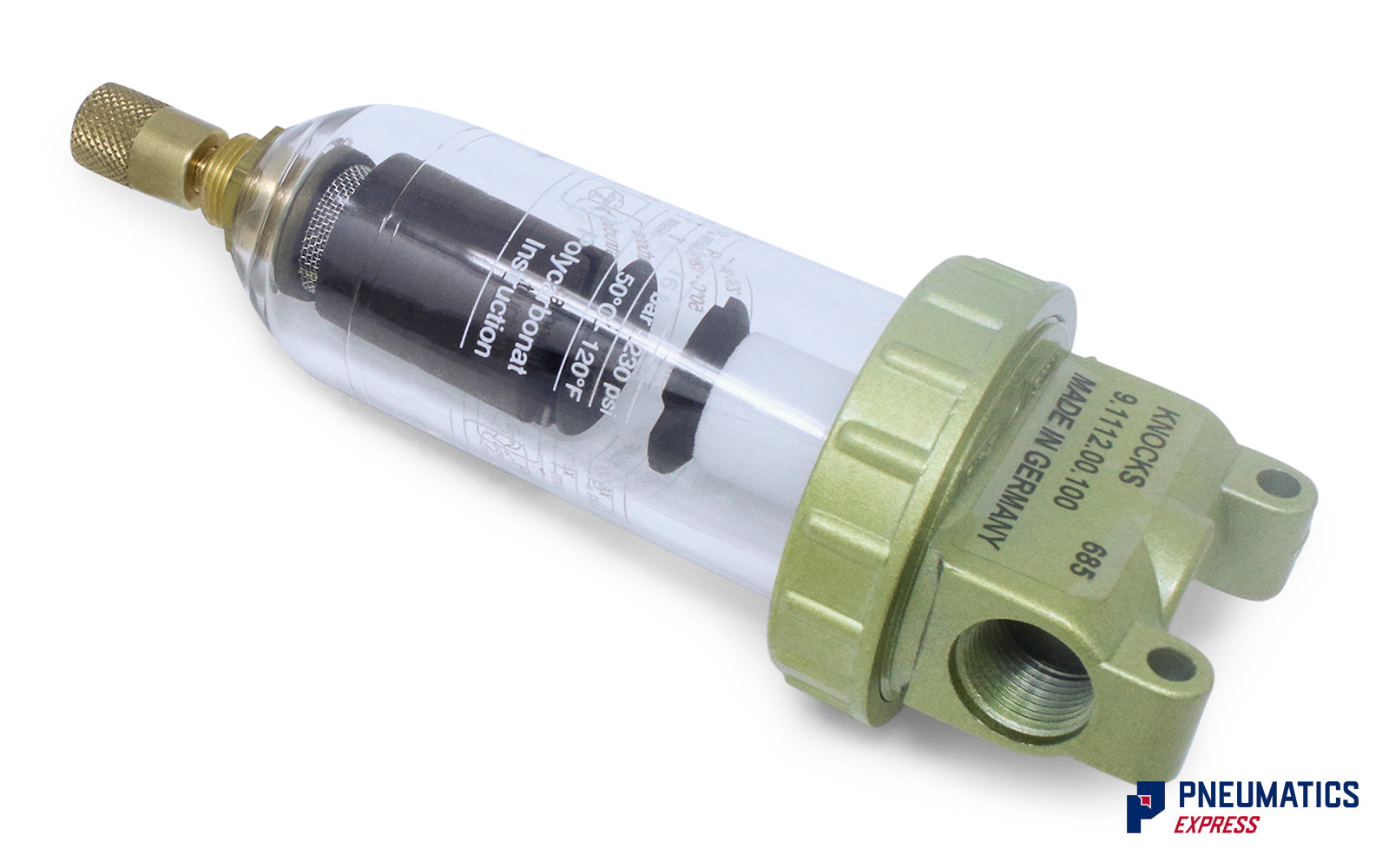

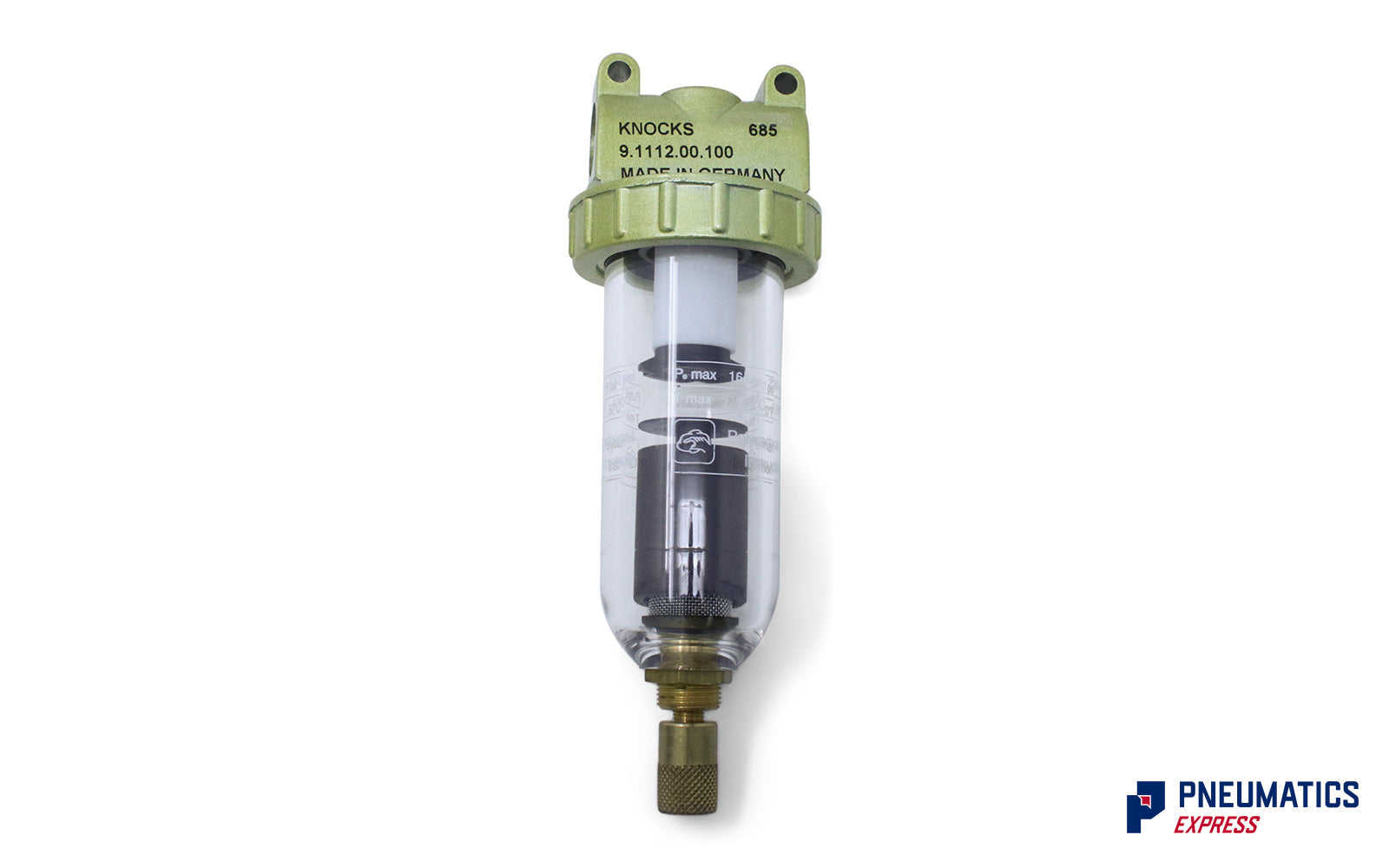

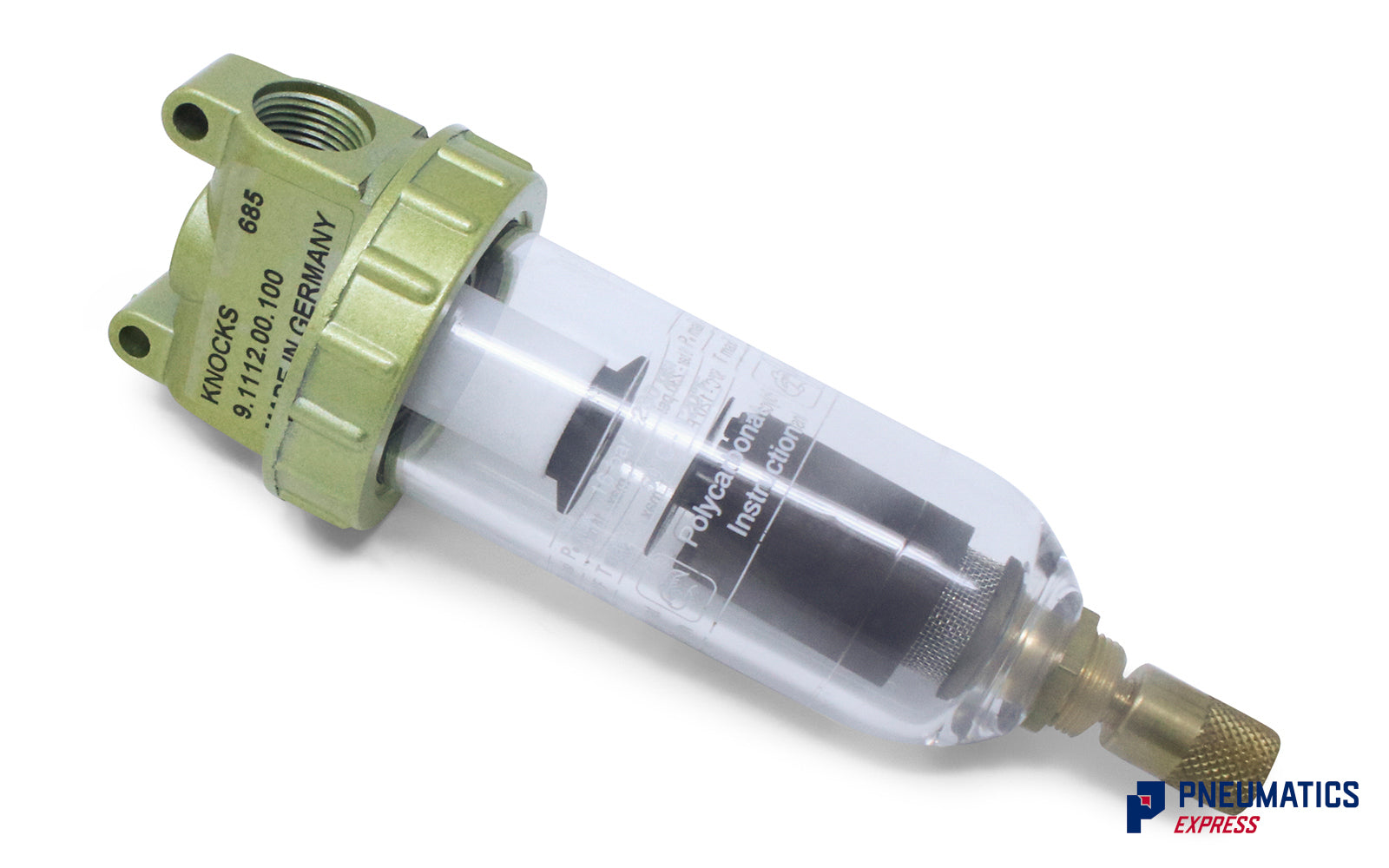

The KNOCKS DF.12 AM10 Pneumatic Filter is designed to remove particulates of 5 microns and drain contaminants and water automatically. It features 3/8" port connections, a zinc chassis, and a sintered filter. The filter is vertically mounted with the drain plug at the bottom, and it operates with a minimum supply pressure of 1.5 bar. It is made in Germany and has a maximum bowl volume of 35cm³.
| Port size | G 3/8 |
| Description |
Centrifugal force principle with sintered filter |
| Mounting | Vertically, drain plug at bottom |
| Supply pressure | Pe max.16 bar Pe max. 20 bar with metal bowl Pe min. 1,5 bar with auto drain |
| Filter element | 5 μm standard, (absolutely) |
| Media and ambient temperature | Max. 60℃ (oth. temperature ranges available upon request) |
| Bowl volume | Max. 35cm³ condensation volume |
| Drain model | Manual drain standard, optional Semi and auto drain |
| Fixing | Bracket |
