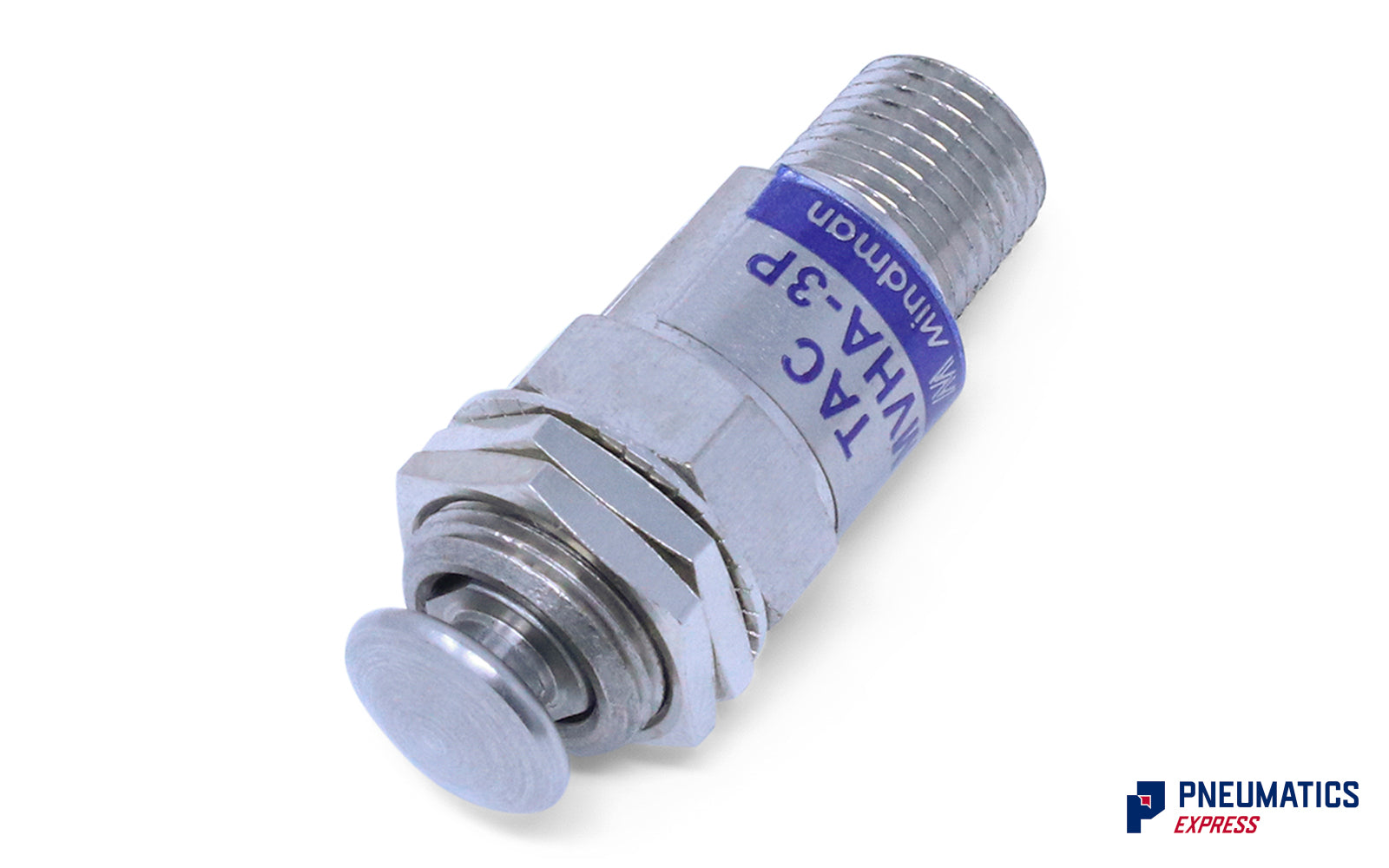

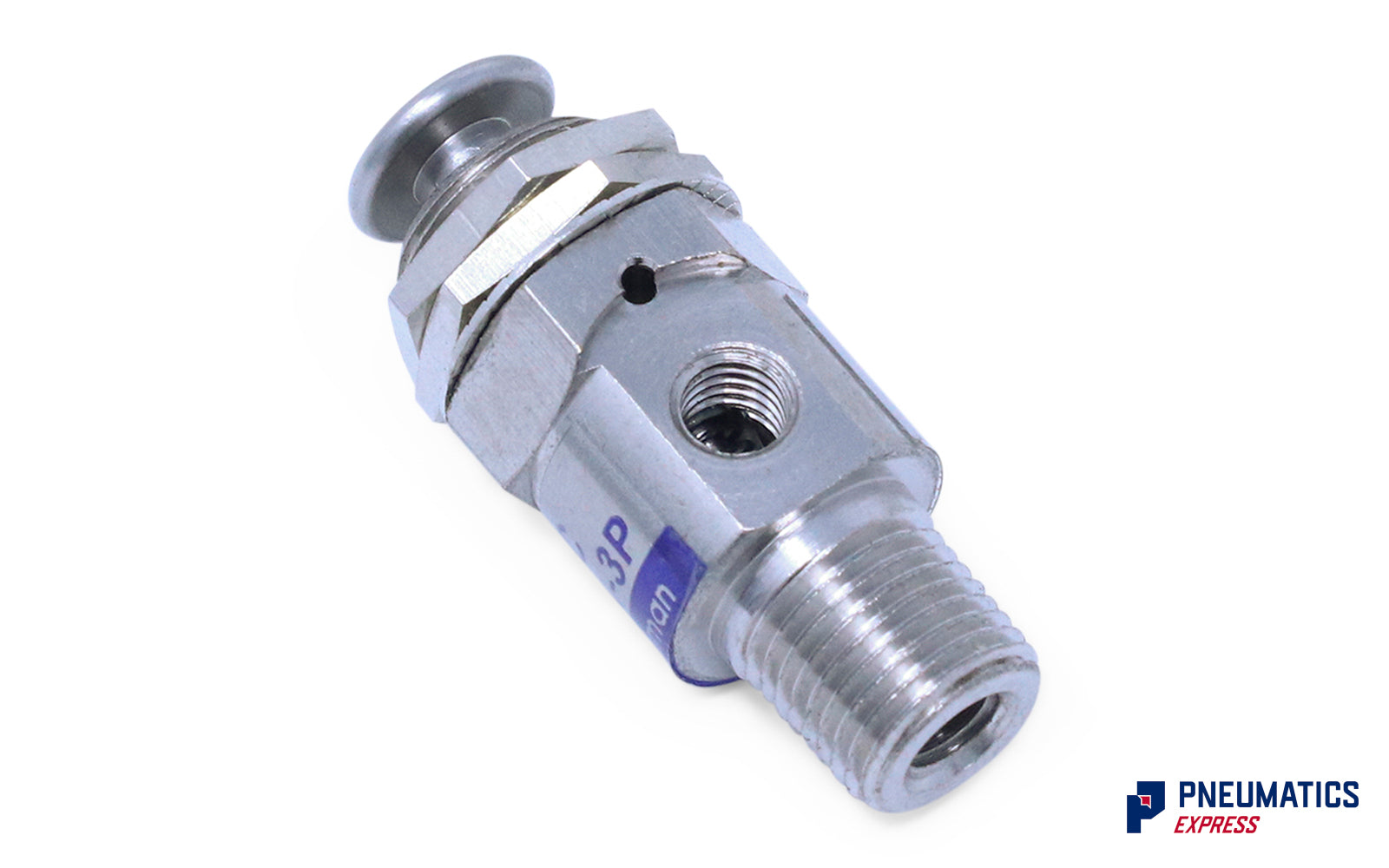

Mindman MVHA-3P Round Toggle Valve
The MINDMAN MVHA-3P Round Toggle Valve is part of the MVHA-2*/3* series of HAND Valves. It features two or three ports with an M5x0.8 port size and is designed to handle air as the medium. The valve has a two-position operation and an operating pressure range of 0~0.9 MPa. Its effective orifice is 1.8 mm². The valve's ambient temperature range is -5 to +60°C (non-freezing).
Model | MVHA-2*, 3* |
No.of port: | 2 or 3 |
Port size | M5x0.8 |
Medium | Air |
No. of position | 2 |
Operating pressure range | 0~0.9 MPa |
Ambient temperature | -5 ~ + 60℃ (No freezing) |
Effective orifice | 1.8 mm² |
