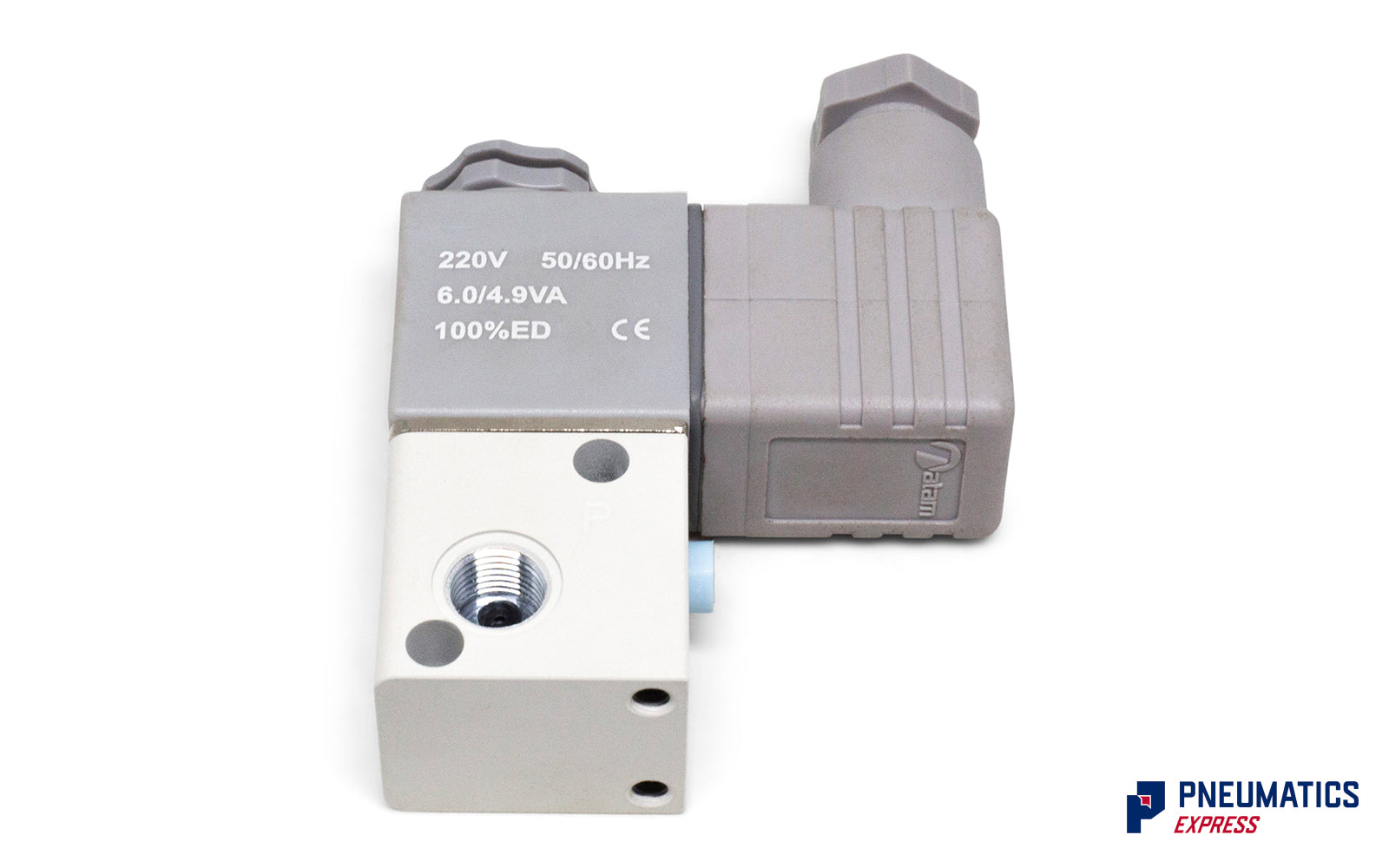

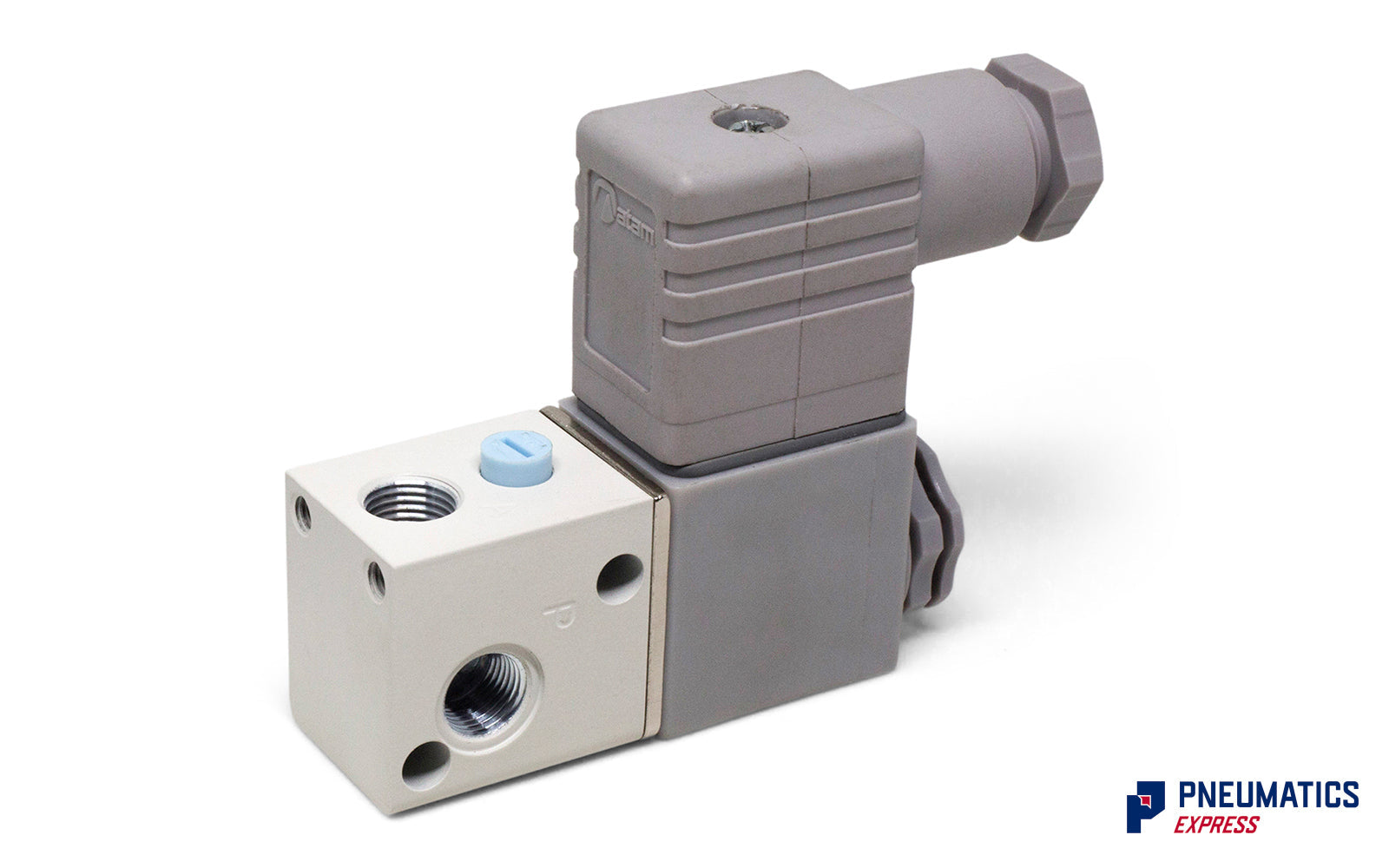

Mindman MVDC-220-3E1 AC220V (3V1) Solenoid Valve 3/2 1/8"
- Regular price
- $47.70
- Sale price
- $47.70
Fully in Stock
The Mindman MVDC-220-3E1 solenoid valve is suitable for industrial machinery applications in automation, motion control, and fluid power. It features a 3/2 configuration, a 1/8-inch port size, and an AC220V coil. Operating with an air medium, the valve has a pressure range of 0.01 to 0.7 MPa and a response time of 20 ms. Its effective orifice measures 0.8 mm², and it can withstand an ambient temperature range of -5 to +50 degrees Celsius. The available voltage range is AC110V, 220V (50/60 Hz), or DC24V, with a tolerance of ±10%.
| Model | 3E1 |
| Bore no.: | 6A |
| Port size | Rc 1/8 |
| Medium | Air |
| Operating pressure range | 0.01~0.7 MPa |
| Proof pressure | 1 MPa |
| Ambient temperature | -5 ~ + 50℃ (No freezing) |
| Effective orifice | 0.8 mm² |
| Reponse time | 20 ms |
| Voltage | AC110V, 220V (50/60)Hz, DC24V |
| Power consumption | AC=4.8/4.4VA, 6/4.9VA, DC=2W |
| Available voltage range | ± 10% |
