Mindman MVHC-300-4H-10A Hand Lever Valve 3/8"
- Regular price
- $56.60
- Sale price
- $56.60
Fully in Stock
Free shipping within the UK! Worldwide shipping also available.

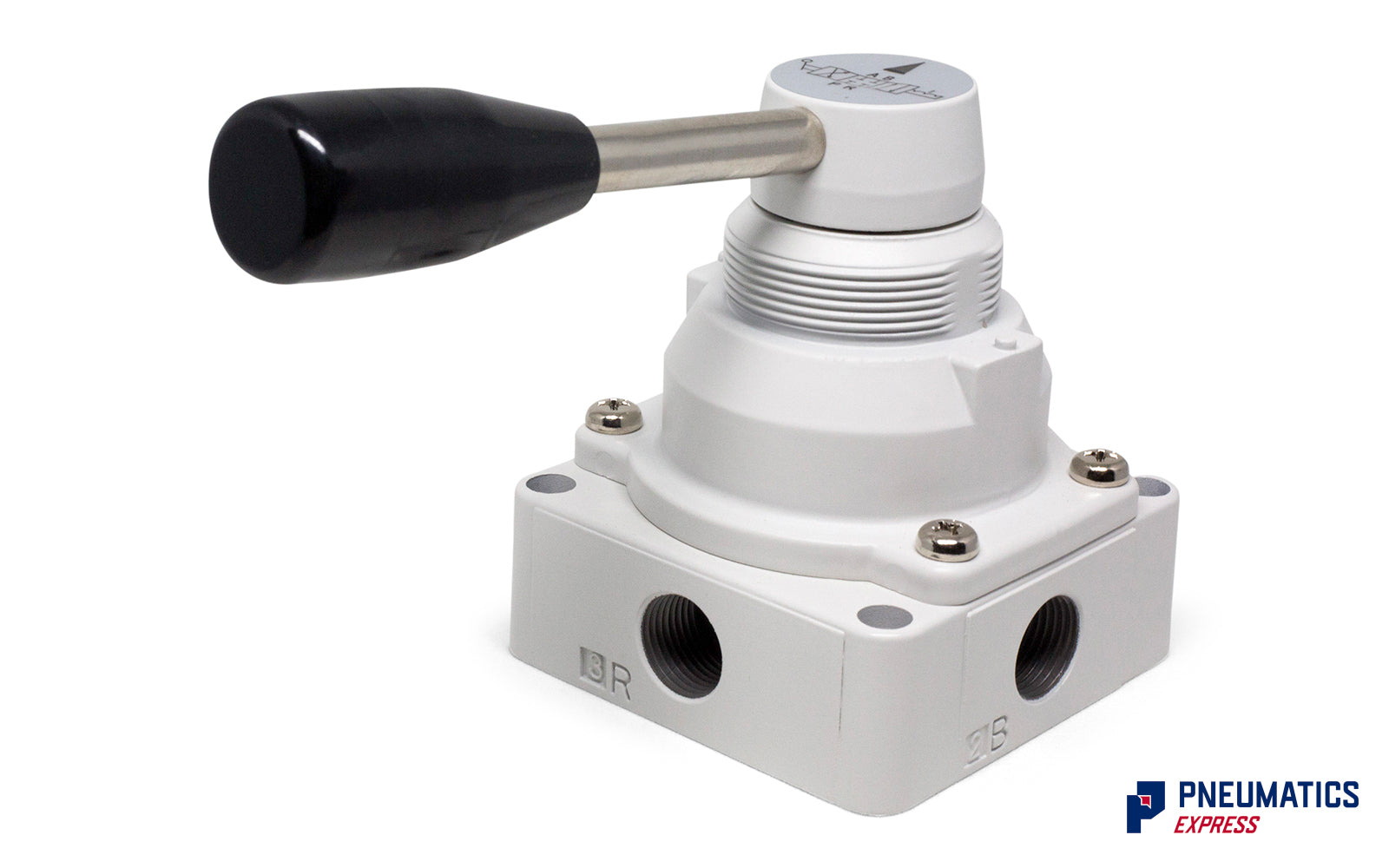

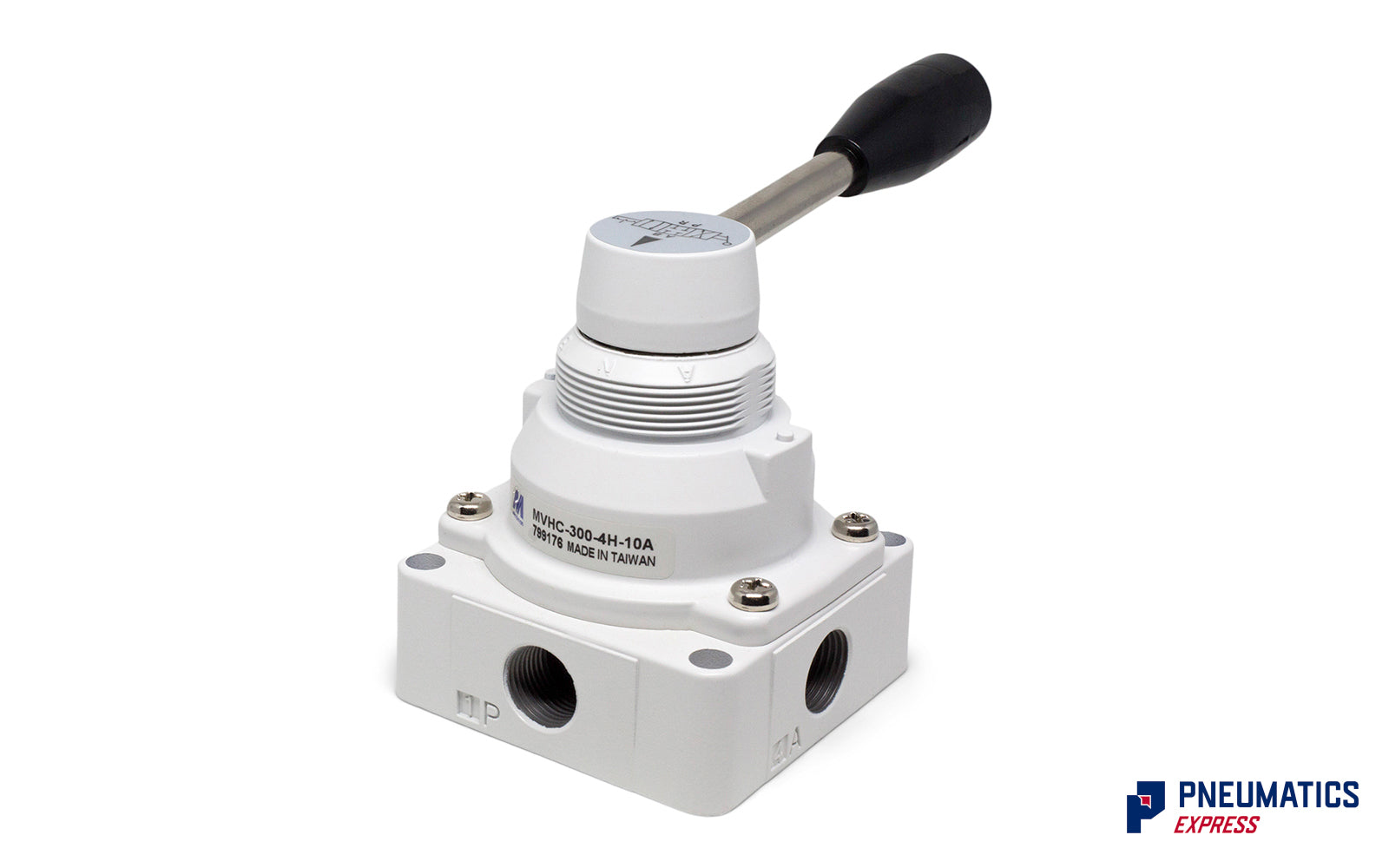

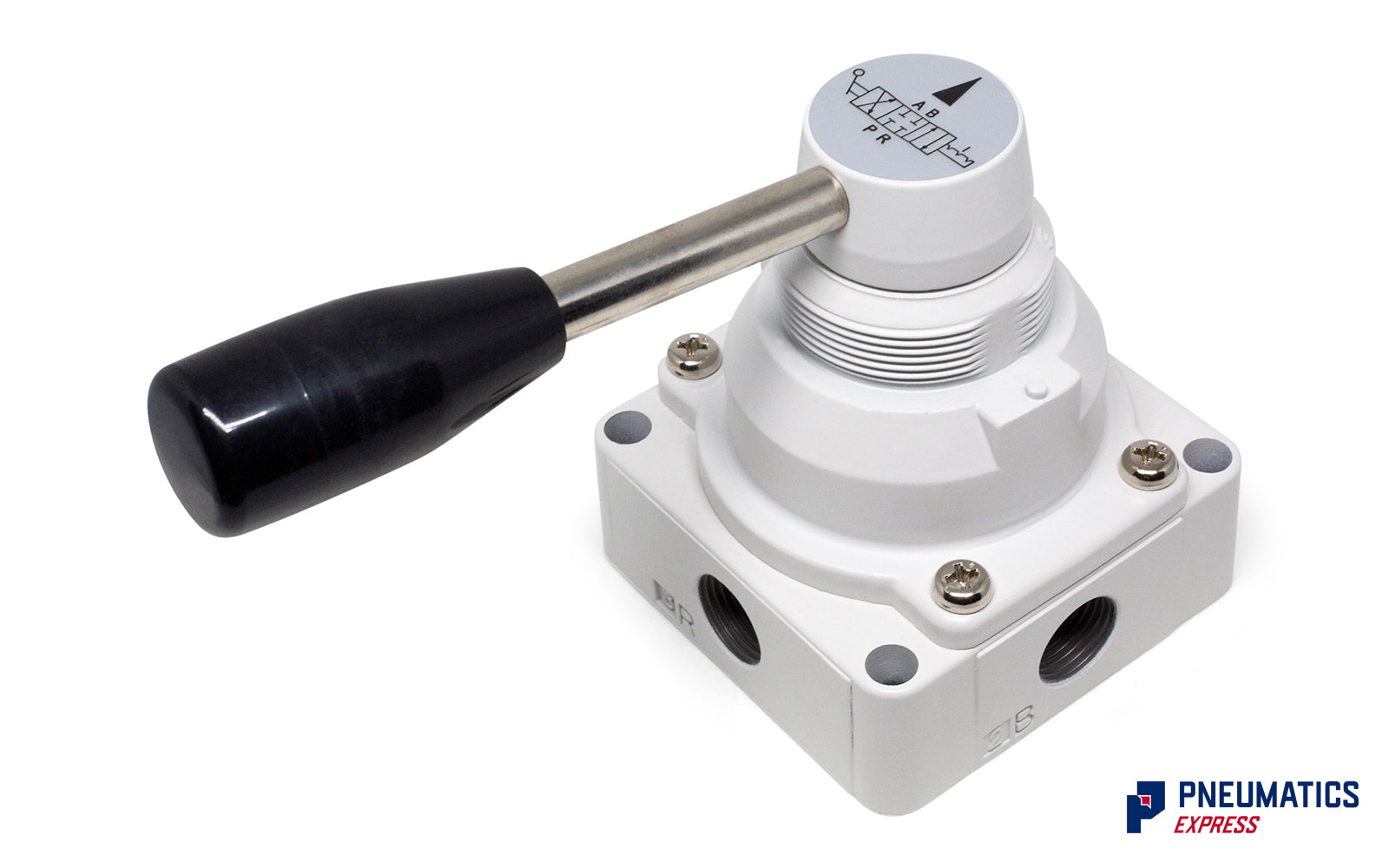

The Mindman MVHC-300-4H-10A Hand Lever Valve features rotary action and a distinct clicking sound. Equipped with four 3/8-inch port connections, it boasts a closed center position. This highly sought-after valve forms part of Pneumatics Express's popular MVHC series. It operates within a pressure range of 0.05 to 1 MPa and effectively withstands temperatures between -5 and 60 degrees Celsius.
| Model | MVHC-300-4H-10A |
| No.of port: | 4 |
| Bore no.: | 10A |
| Port size | Rc 3/8 |
| Medium | Air |
| Operating pressure range | 0.05~1 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Effective orifice | 29 mm² |
