Mindman MVHA-41V Hand Valve 1/8"
- Regular price
- $33.10
- Sale price
- $33.10
Fully in Stock
Free shipping within the UK! Worldwide shipping also available.

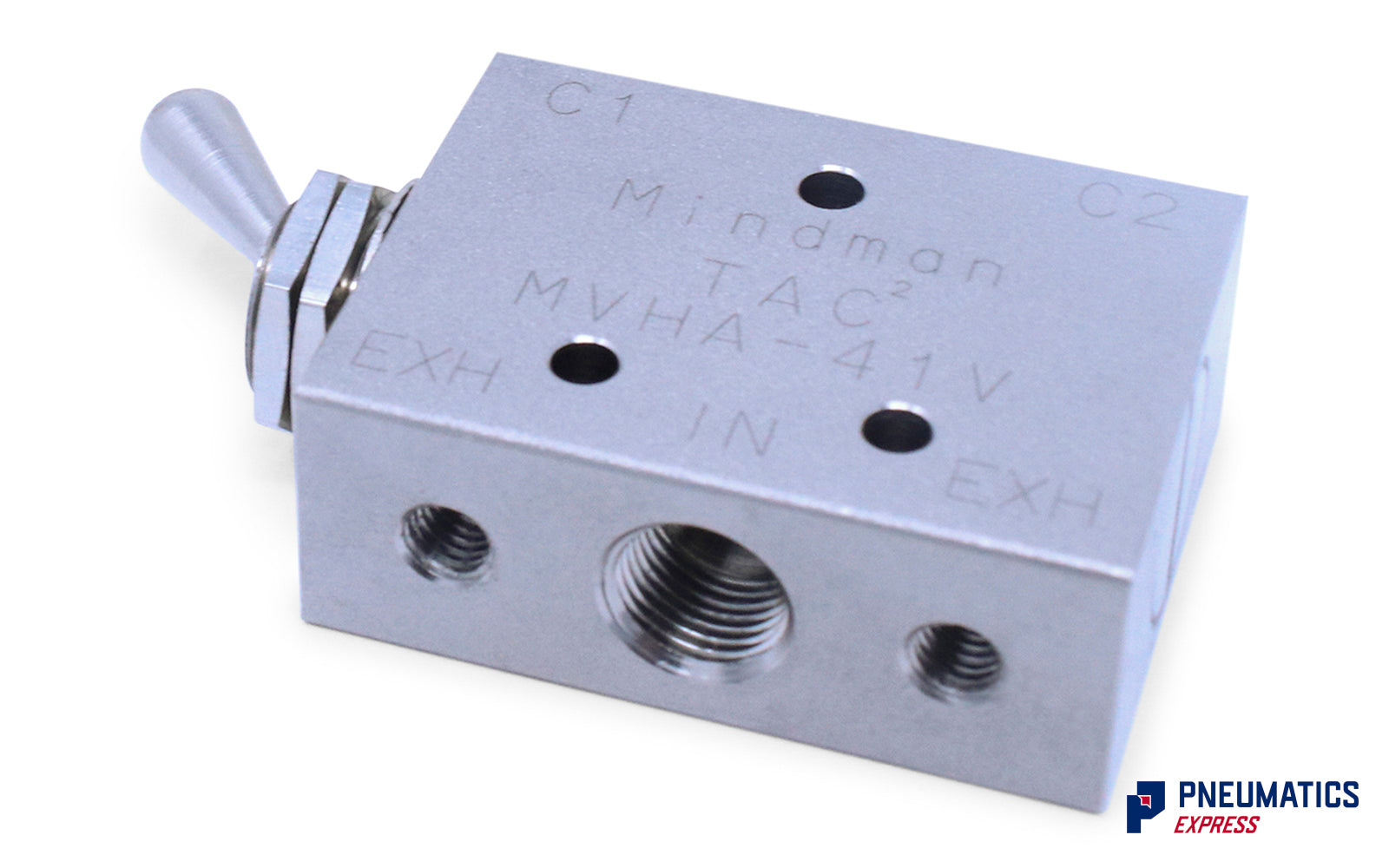

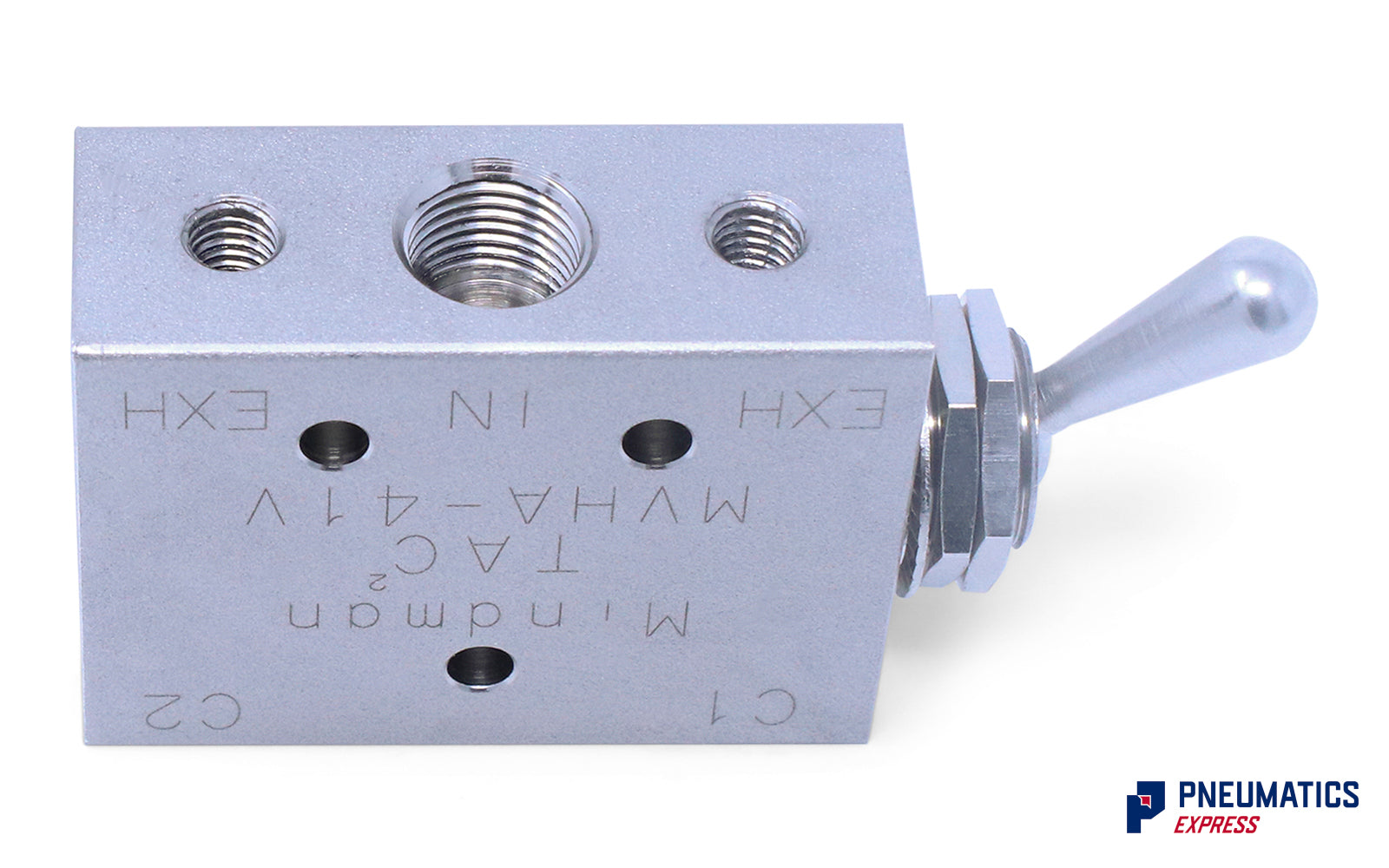

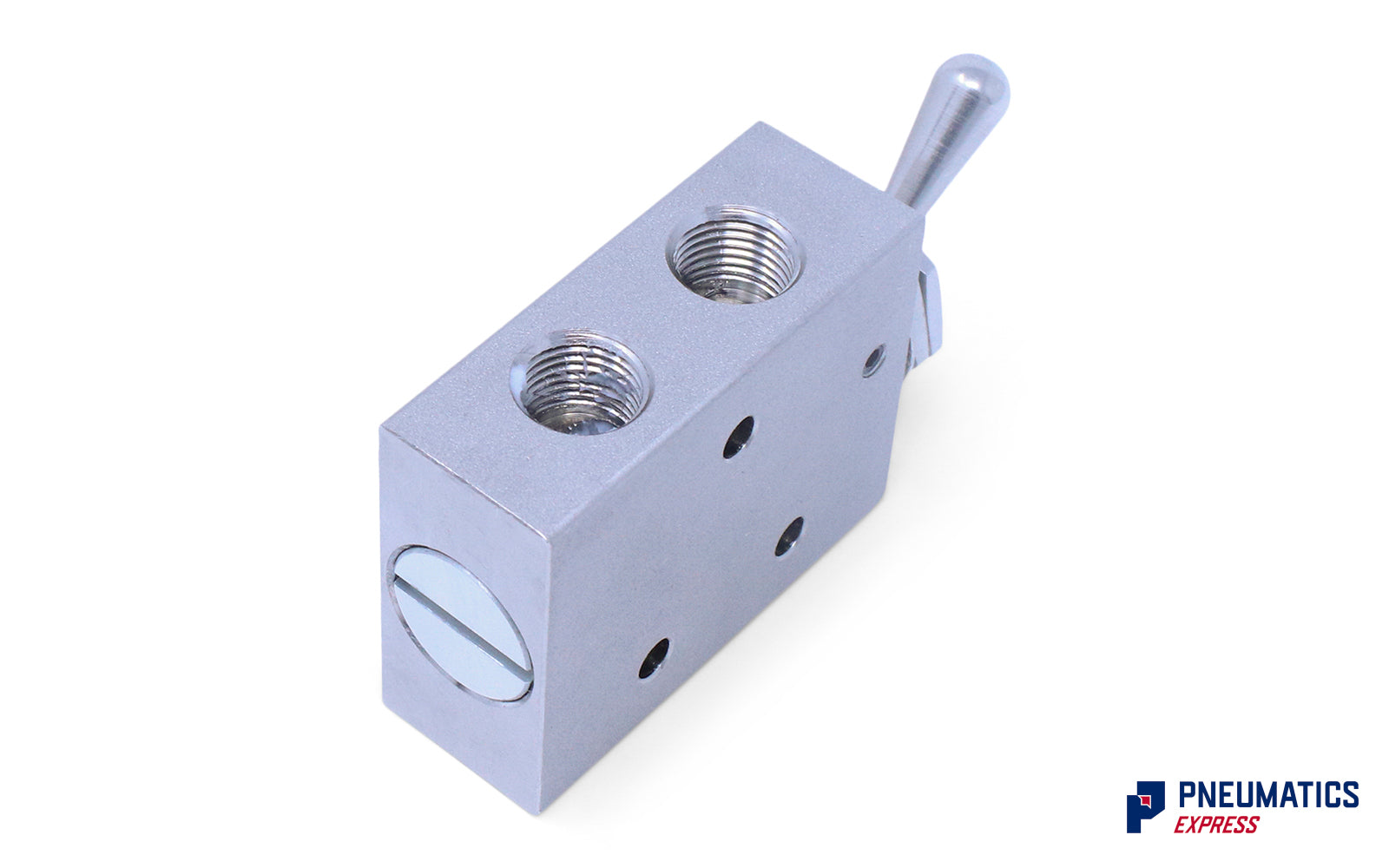

The MINDMAN MVHA-41V is a 5-port, 2-position hand valve. It has a port size of Rc 1/8 and an effective orifice of 5.5 mm². The valve is suitable for air and has an operating pressure range of 0~0.9 MPa. It operates at ambient temperatures ranging from -5 to +60 degrees Celsius.
| Model | MVHA-41V / 41P / 41PP |
| No.of port: | 5 |
| Bore no.: | 6A |
| Port size | Rc 1/8 |
| Medium | Air |
| No. of position | 2 |
| Operating pressure range | 0~0.9 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Effective orifice | 5.5 mm² |
