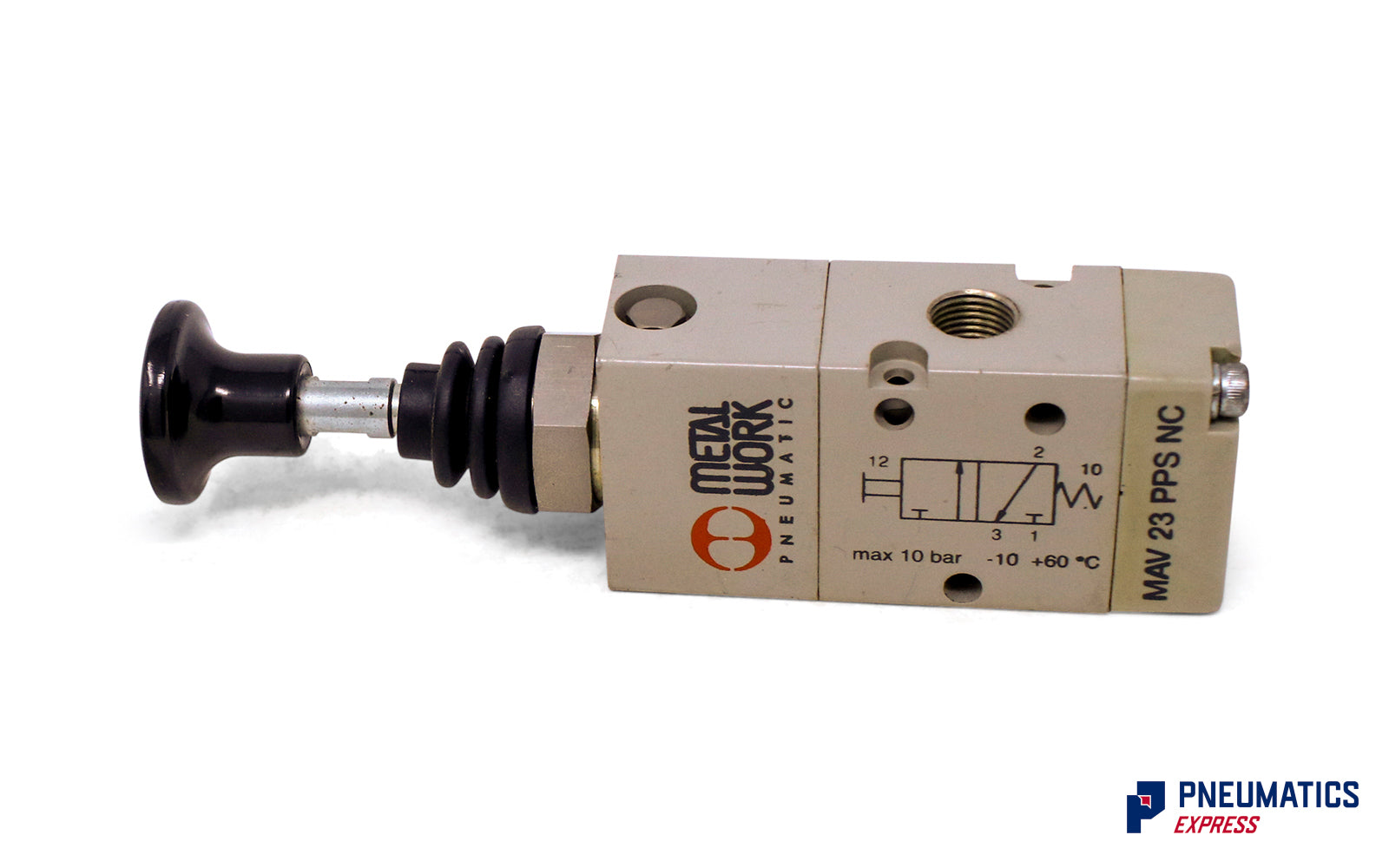

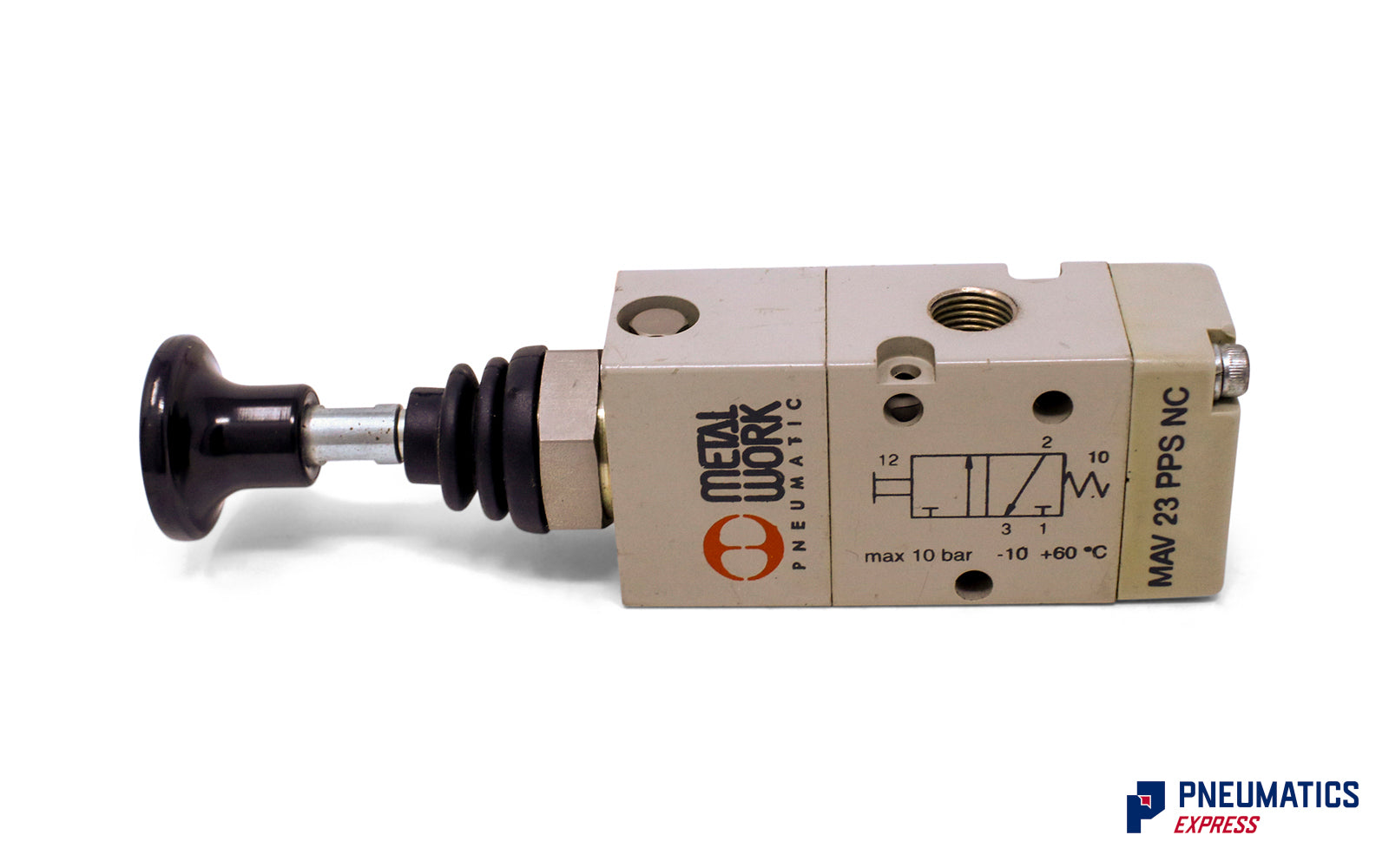

Metal Work MAV 23 PPS NC Manual Push Valve (7010001200) 1/8", 3/2

The Metal Work MAV 23 PPS NC Manual Push Valve (7010001200) is a 3-port, 2-position, 1/8-inch push button valve with spring return and aluminum chassis. It operates at a pressure range of vacuum to 10 bar and a temperature range of -10 to +60 degrees Celsius. The nominal diameter is 5mm, and it has a conductance of 121.43 Nl/min-bar. The flow rate at 6 bar ∆P 0.5 bar is 400 Nl/min, and the flow rate at 6 bar ∆P 1 bar is 550 Nl/min.
