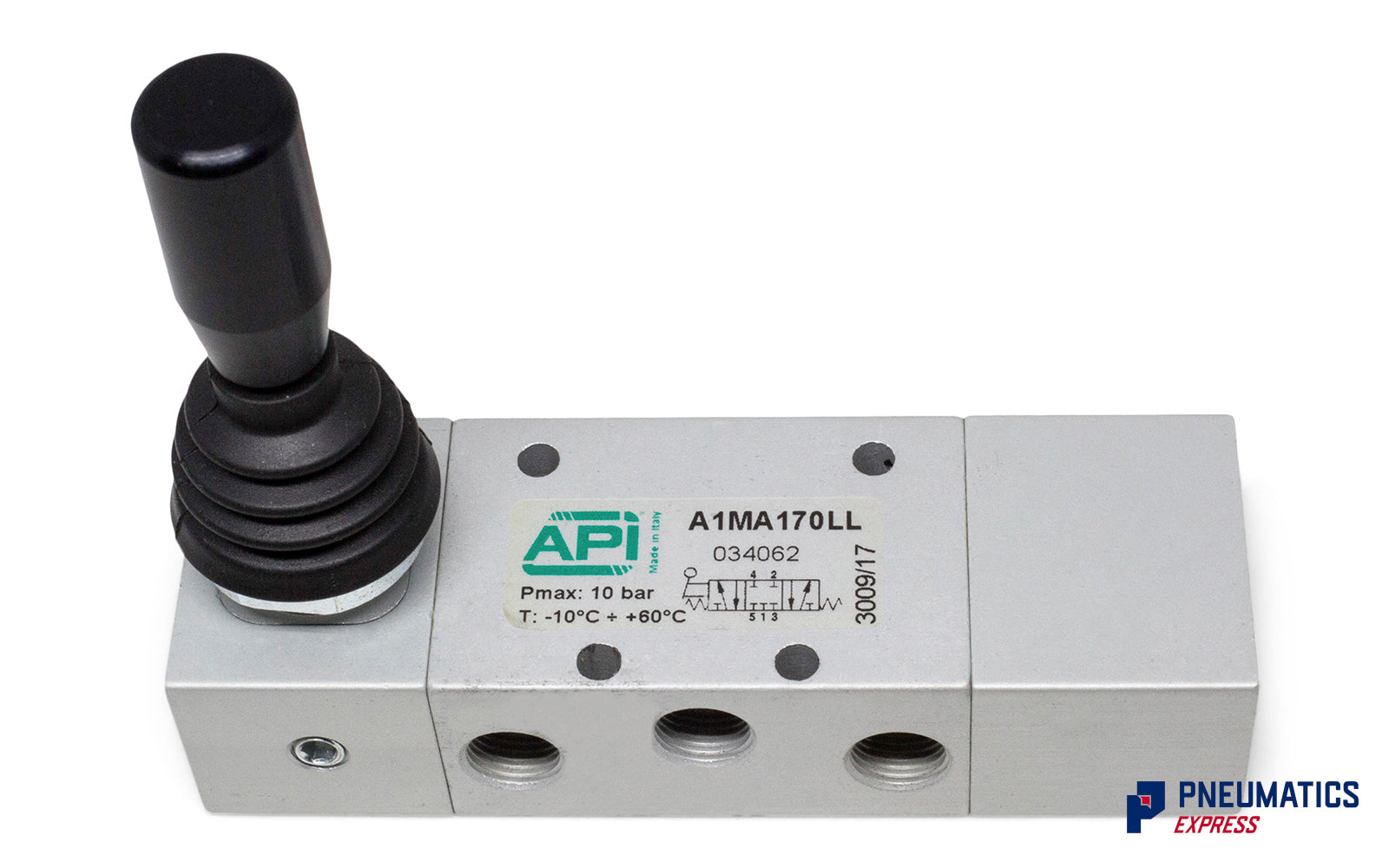

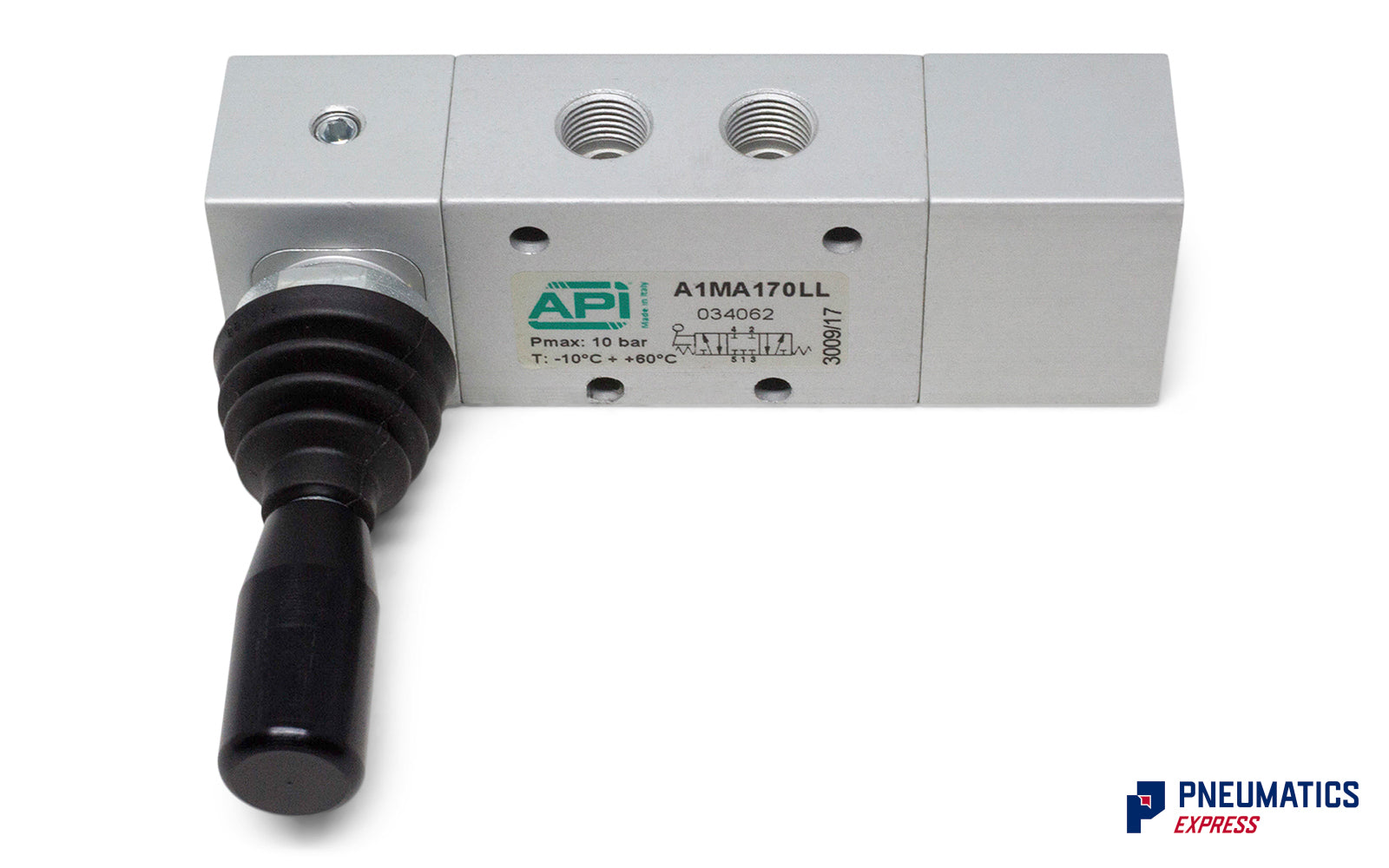

API A1MA170LL Manual Valve CC Spring Return Side Lever
- Regular price
- $89.30
- Sale price
- $89.30
Fully in Stock
'Quick Specs' of A1MA170LL: MPN 034062, 1/8" BSP, 5/3 side lever manual valve, 1 position. Made in Italy.
This is a 1/8", 5/3 side lever valve with a closed centre. HNBR provide tight seals within the valve body, and its alumnium chasis allow for longevity.
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | 0 ÷ 10 bar |
| Temperature range | -10℃ ÷ +80℃ |
| Orifice | 6,5 mm |
| Flow | 650 Nl/min. at 6bar with ΔP 1bar |
| Mounting | In any position |
| Materials |
Body: Anodised aluminium |
