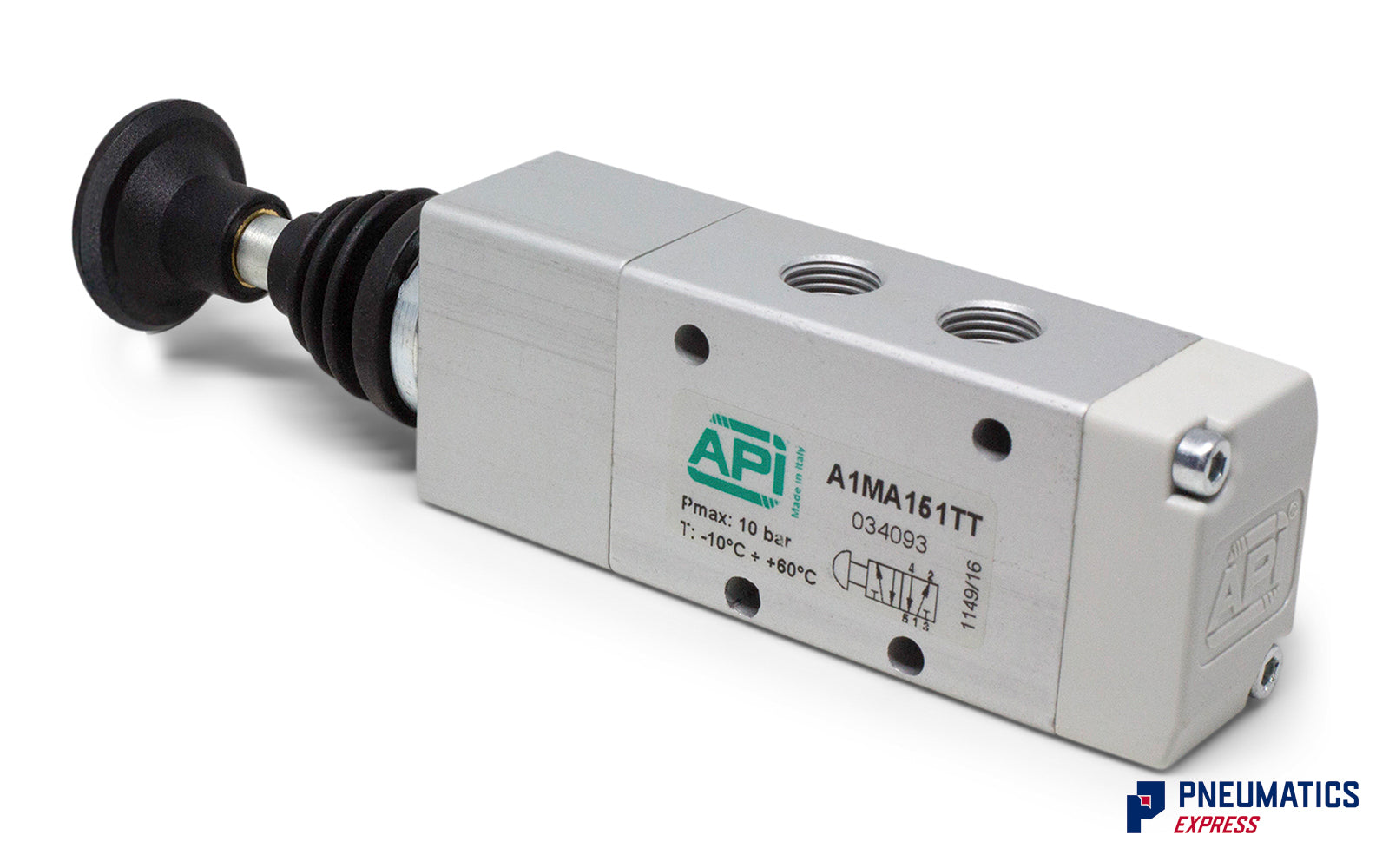

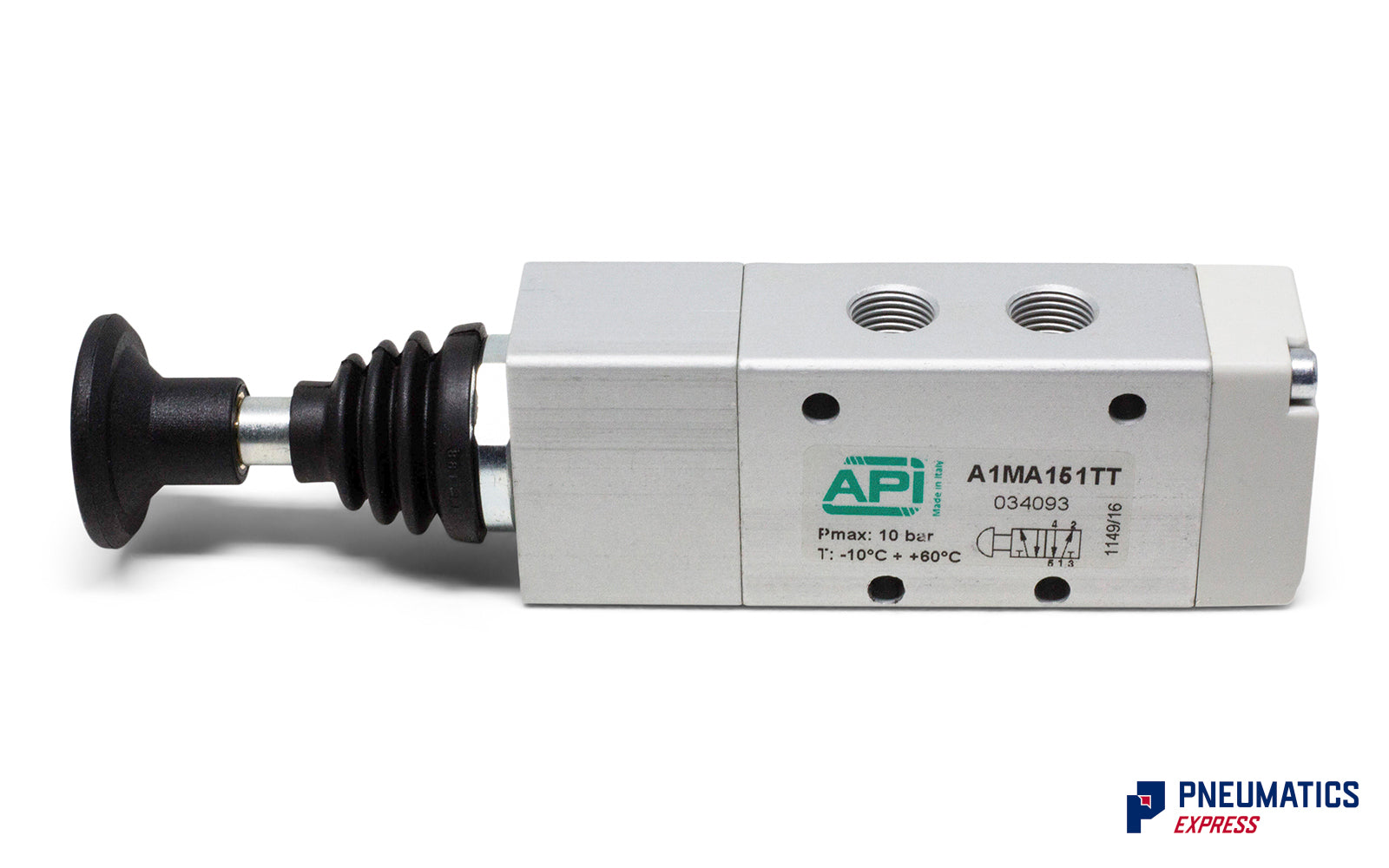

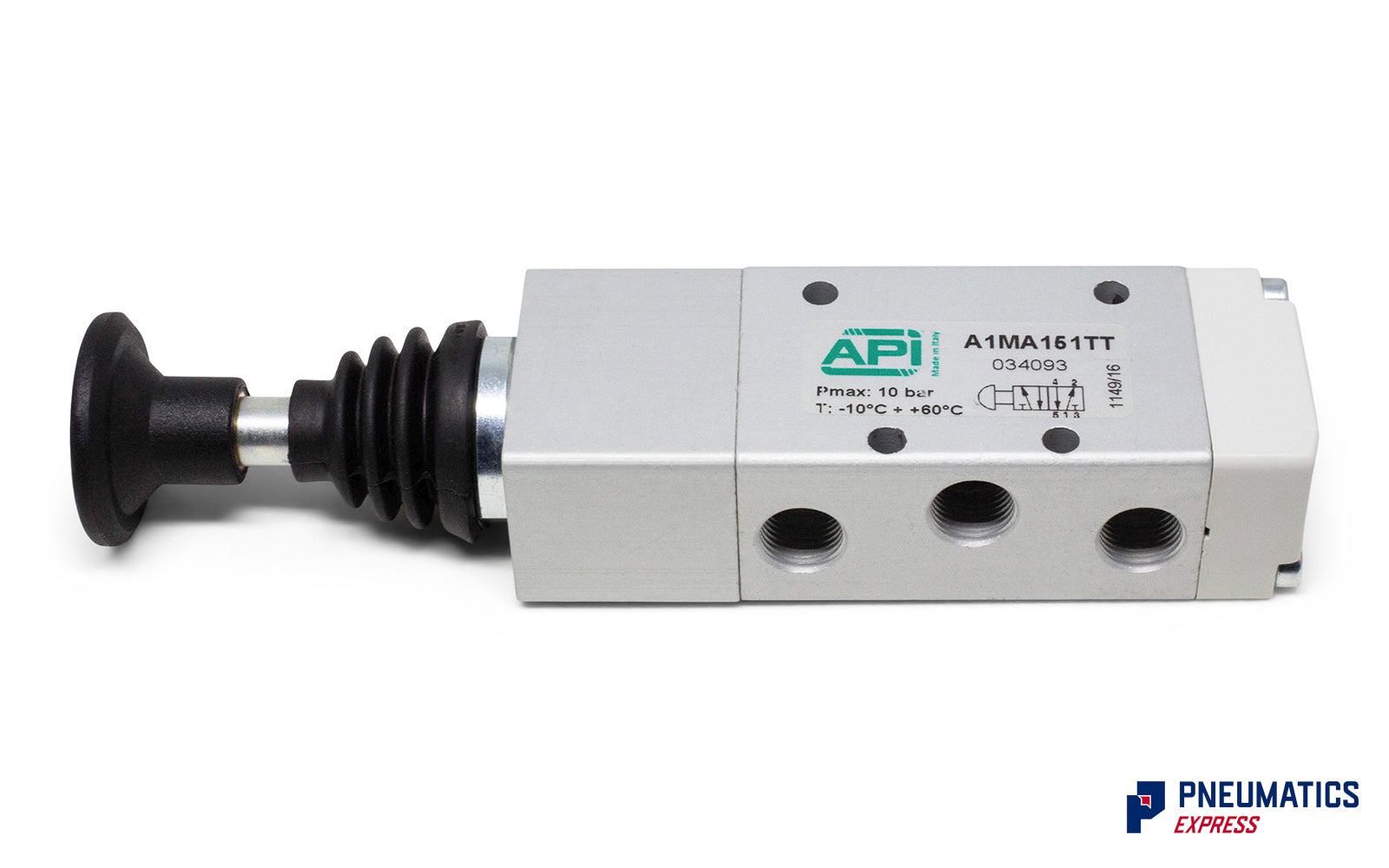

API A1MA151TT Push Button Manual Valve 1/8", 5/2, Push Pull
- Regular price
- $74.10
- Sale price
- $74.10
Fully in Stock
'Quick Specs': MPN 034093, 1/8" BSP, 5/2 push-pull manual valve, 2 positions. Made in Italy.
The API A1MA151TT is a high-end push button pneumatic valve that is manufactured in Italy. It has a robust alumnium valve chasis and its port size is 1/8" BSP. The valve is 5/2 (5 Ports, 2 Positions). When the button is pushed, air flows from Port 1 to Port 4, and air exhausts from Port 2 to Port 3.
The lever valve can be mounted in a variety of positions; there is no restriction here.
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | 0 ÷ 10 bar |
| Temperature range | -10℃ ÷ +80℃ |
| Orifice | 6,5 mm |
| Flow | 650 Nl/min. at 6bar with ΔP 1bar |
| Mounting | In any position |
| Materials |
Body: Anodised aluminium |
