API A1MA151LT Manual Lever Valve 1/8", 5/2
- Regular price
- $66.90
- Sale price
- $66.90
Fully in Stock
'Quick Specs': MPN 034091, 1/8" BSP, 5/2 top lever manual valve, 2 positions. Made in Italy. Anodised alumnium body.

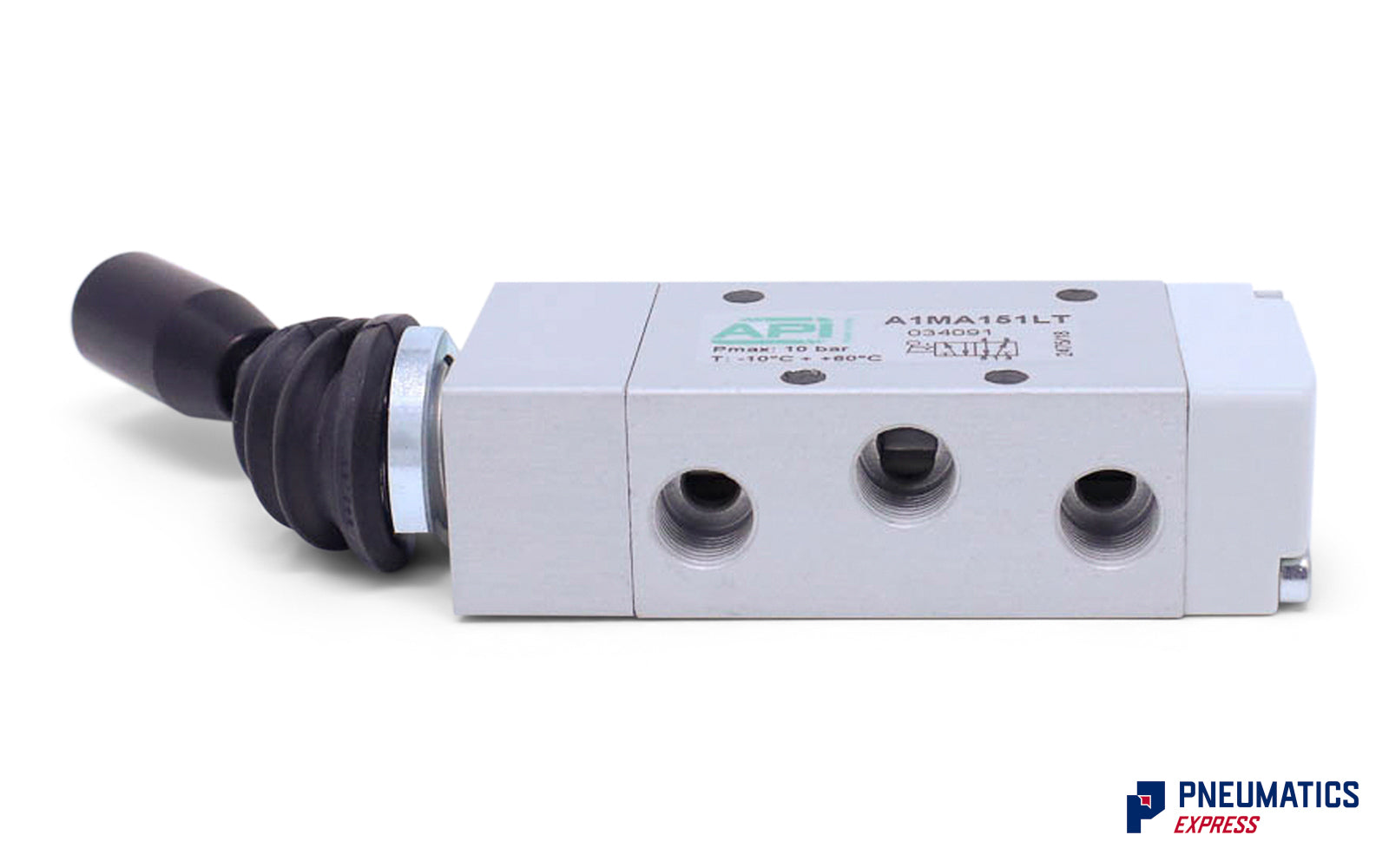

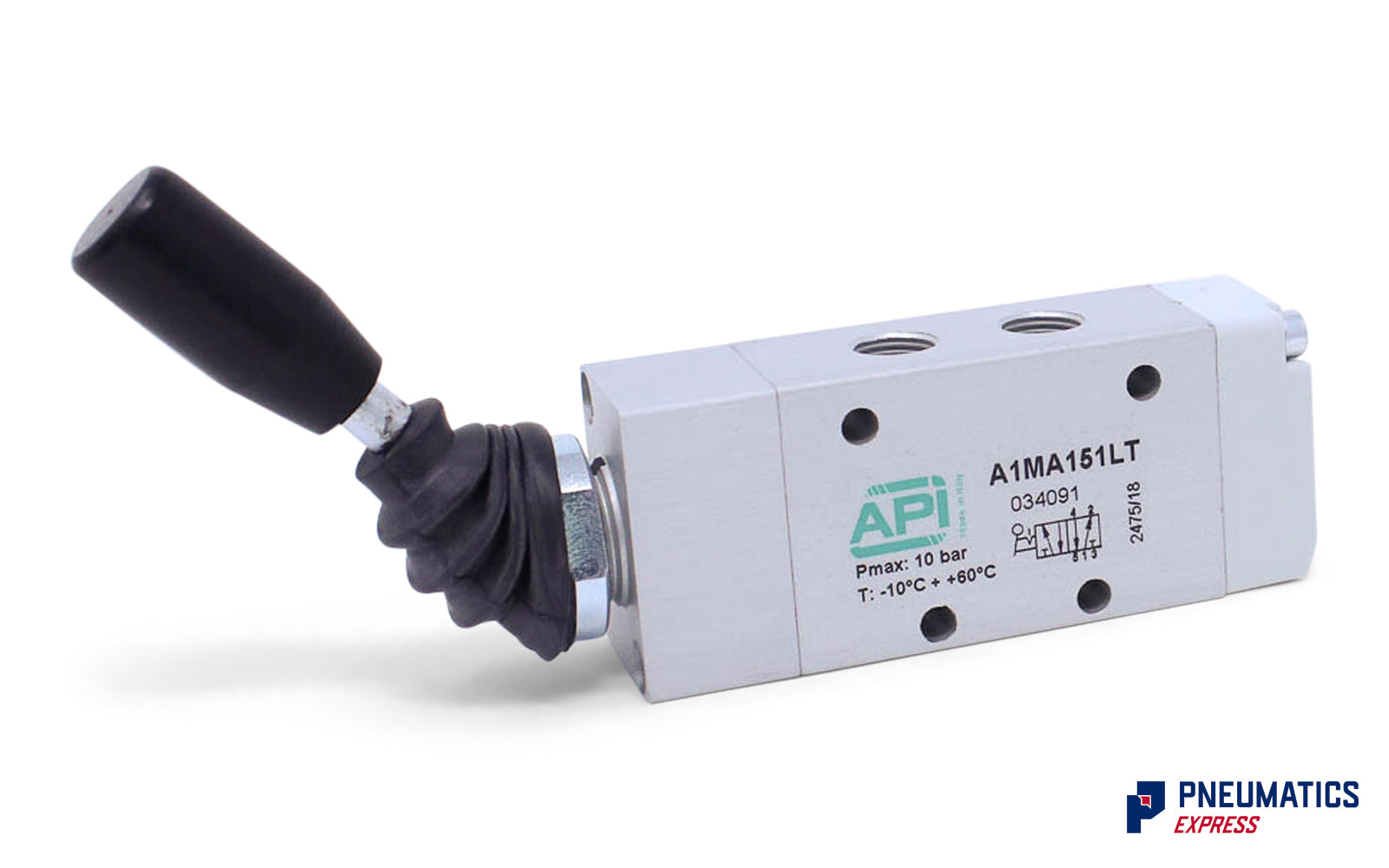

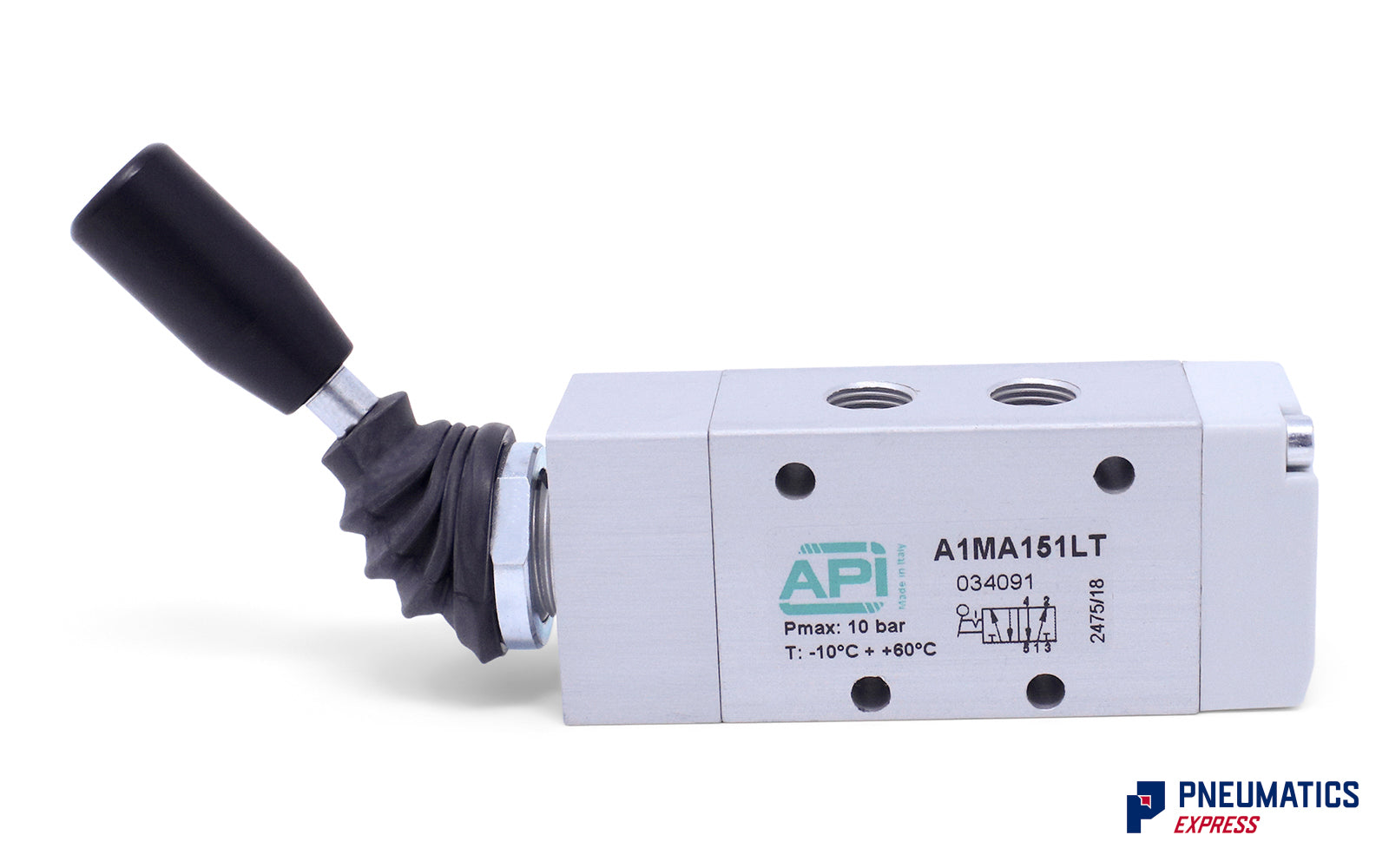

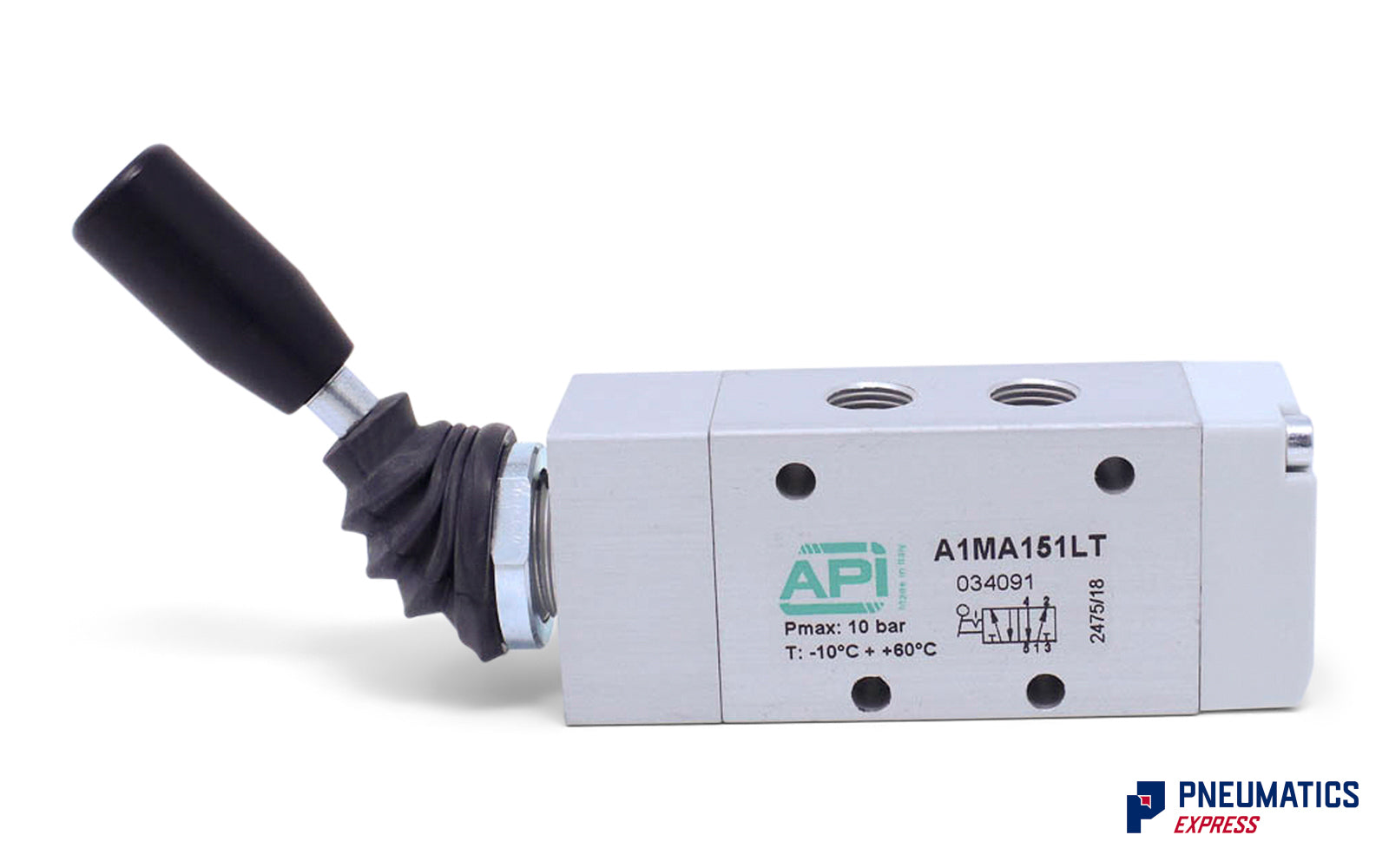

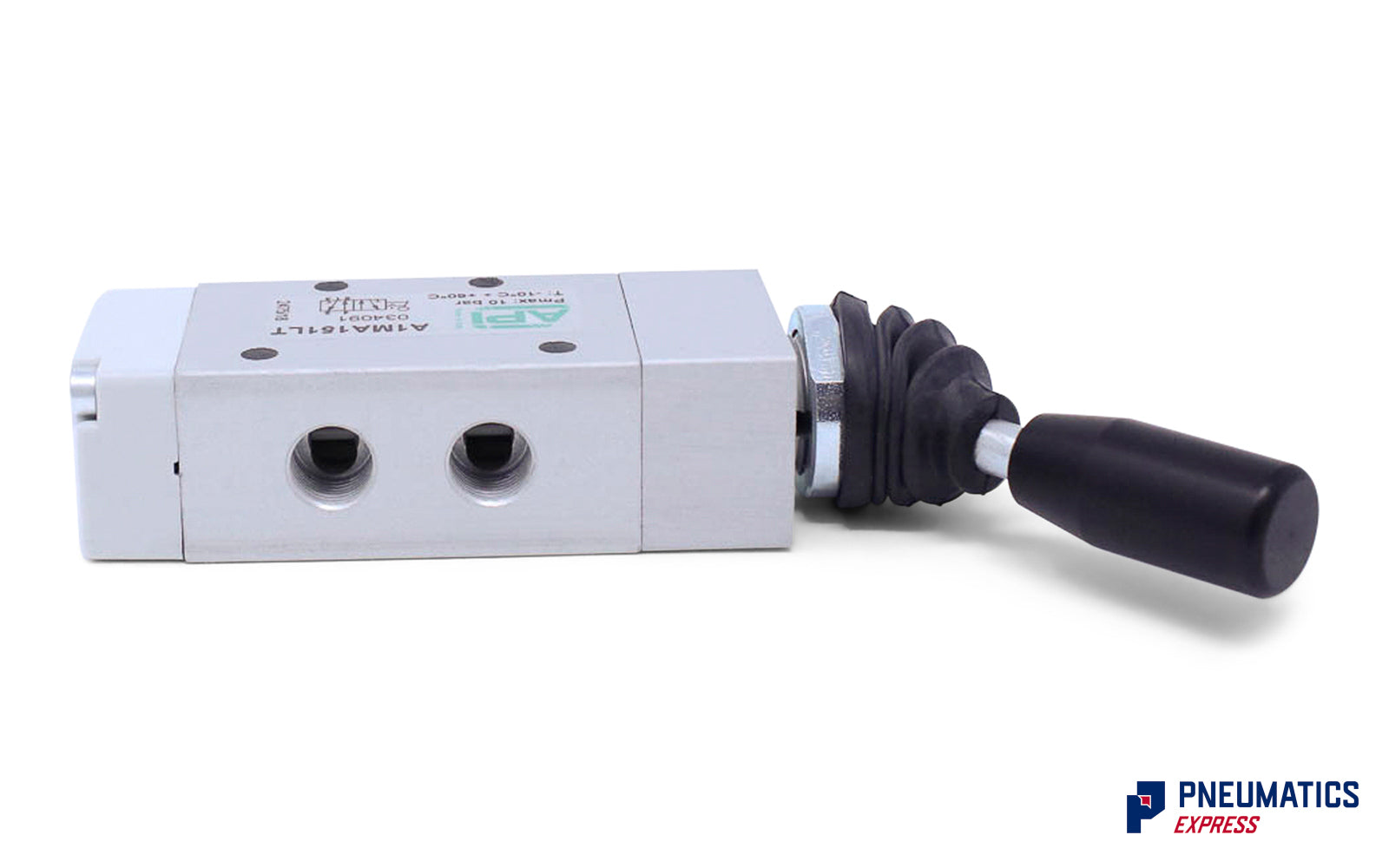

This APY A1MA151LT is a pneumatic lever valve with 3 ports, 2 positions. Each port is 1/8" BSP (G Thread). Pitted at an attractive price point, this valve is popular amongst our clients as it offers impeccable value given its metallic body, HNBR seals, and region of manufacture.
The valve can be mounted in a variety of positions.
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | 0 ÷ 10 bar |
| Temperature range | -10℃ ÷ +80℃ |
| Orifice | 6,5 mm |
| Flow | 650 Nl/min. at 6bar with ΔP 1bar |
| Mounting | In any position |
| Materials |
Body: Anodised aluminium |
