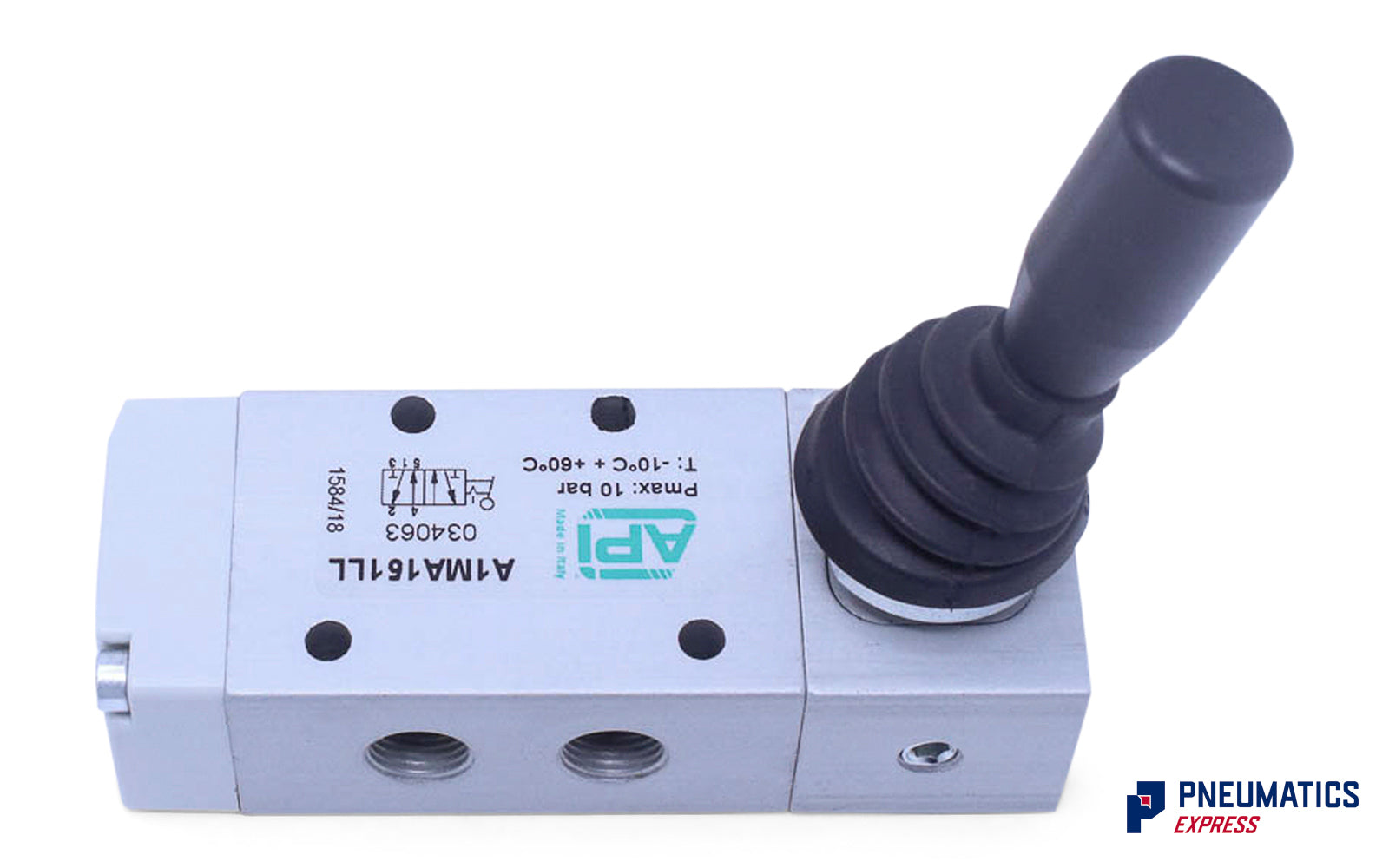

API A1MA151LL Manual Lever Valve 1/8", 5/2, Two Stable Positions Side Lever
- Regular price
- $100.40
- Sale price
- $100.40
Fully in Stock
'Quick Specs': MPN 034063, 1/8" BSP, 5/2 side lever manual valve, 2 positions. Made in Italy.
The API A1MA151LL is a lever valve with 1/8" port connections, 5 ports, and two stable positions. As there is no spring, the positon elected by the mechanical operator will remain stable. The body is lightweight alumnium and can be mounted in a variety of positions.
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | 0 ÷ 10 bar |
| Temperature range | -10℃ ÷ +80℃ |
| Orifice | 6,5 mm |
| Flow | 650 Nl/min. at 6bar with ΔP 1bar |
| Mounting | In any position |
| Materials |
Body: Anodised aluminium |
