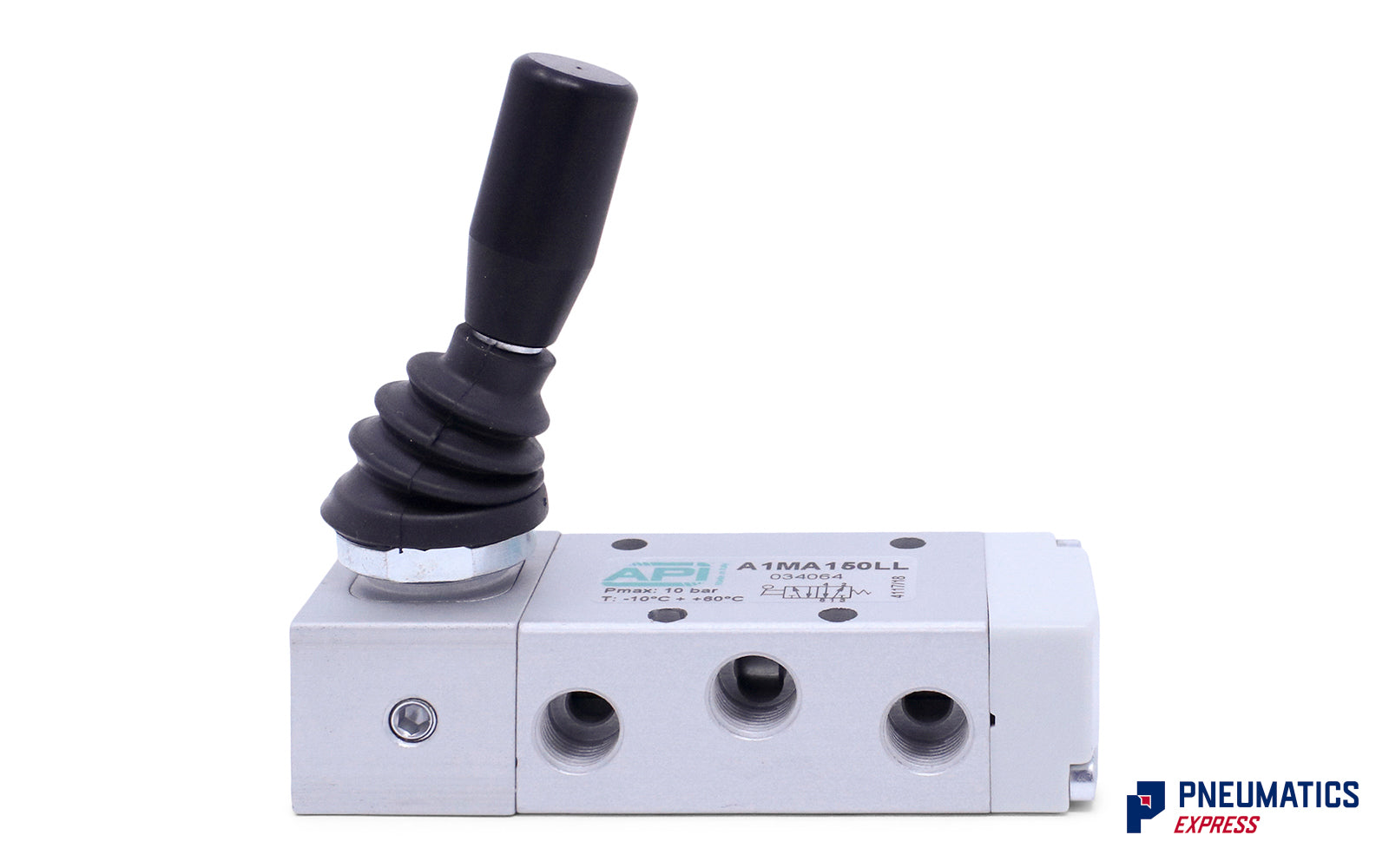

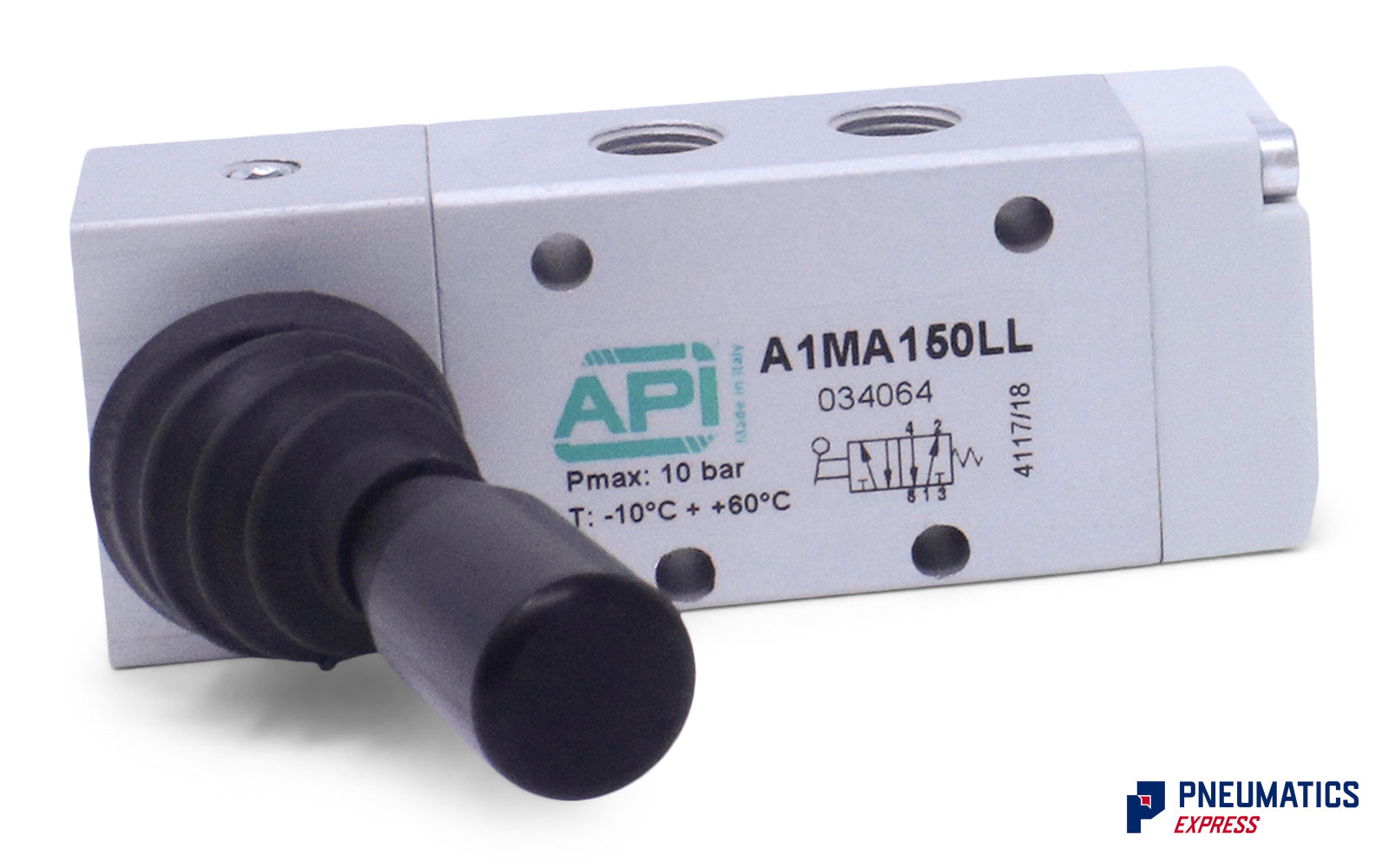

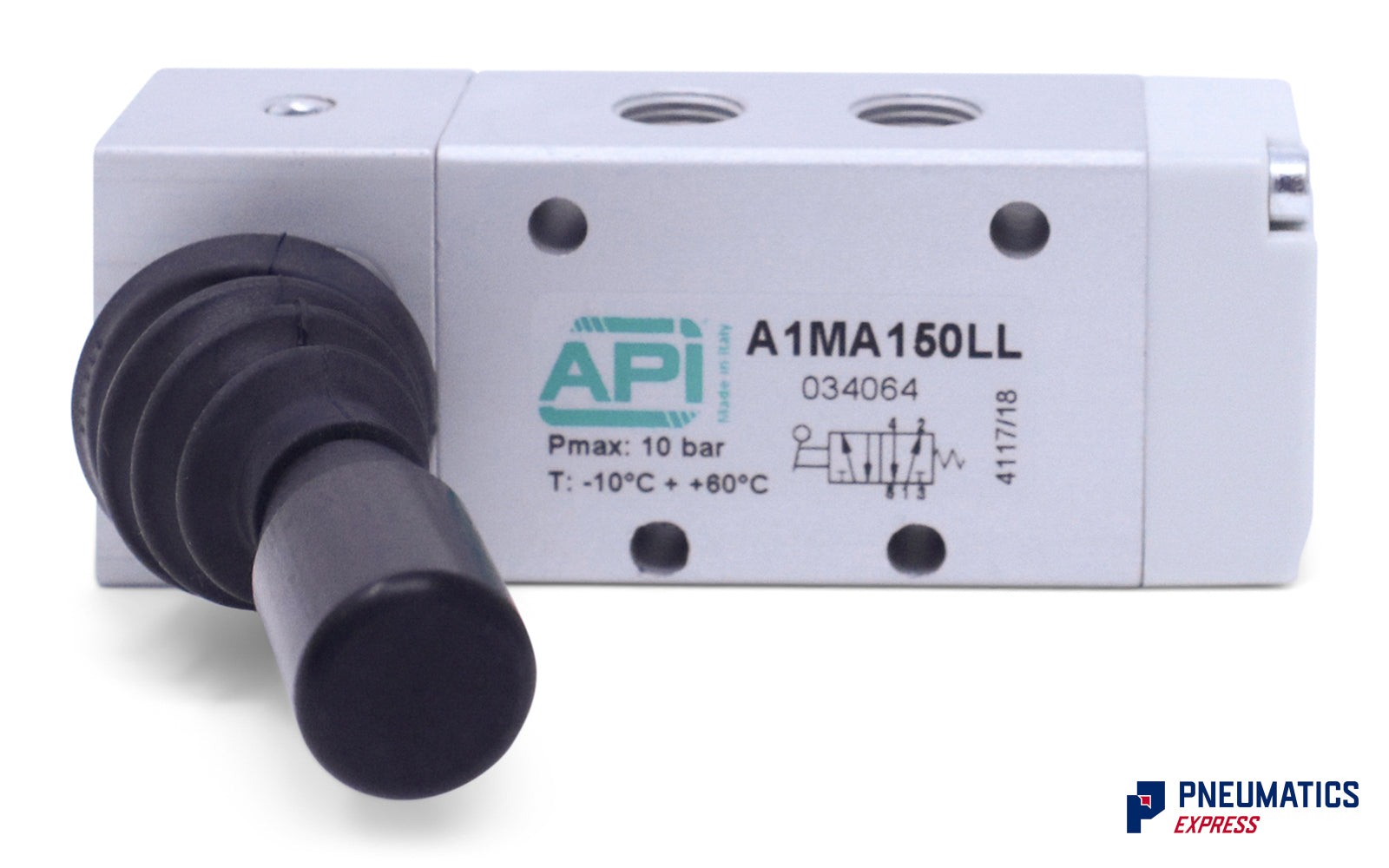

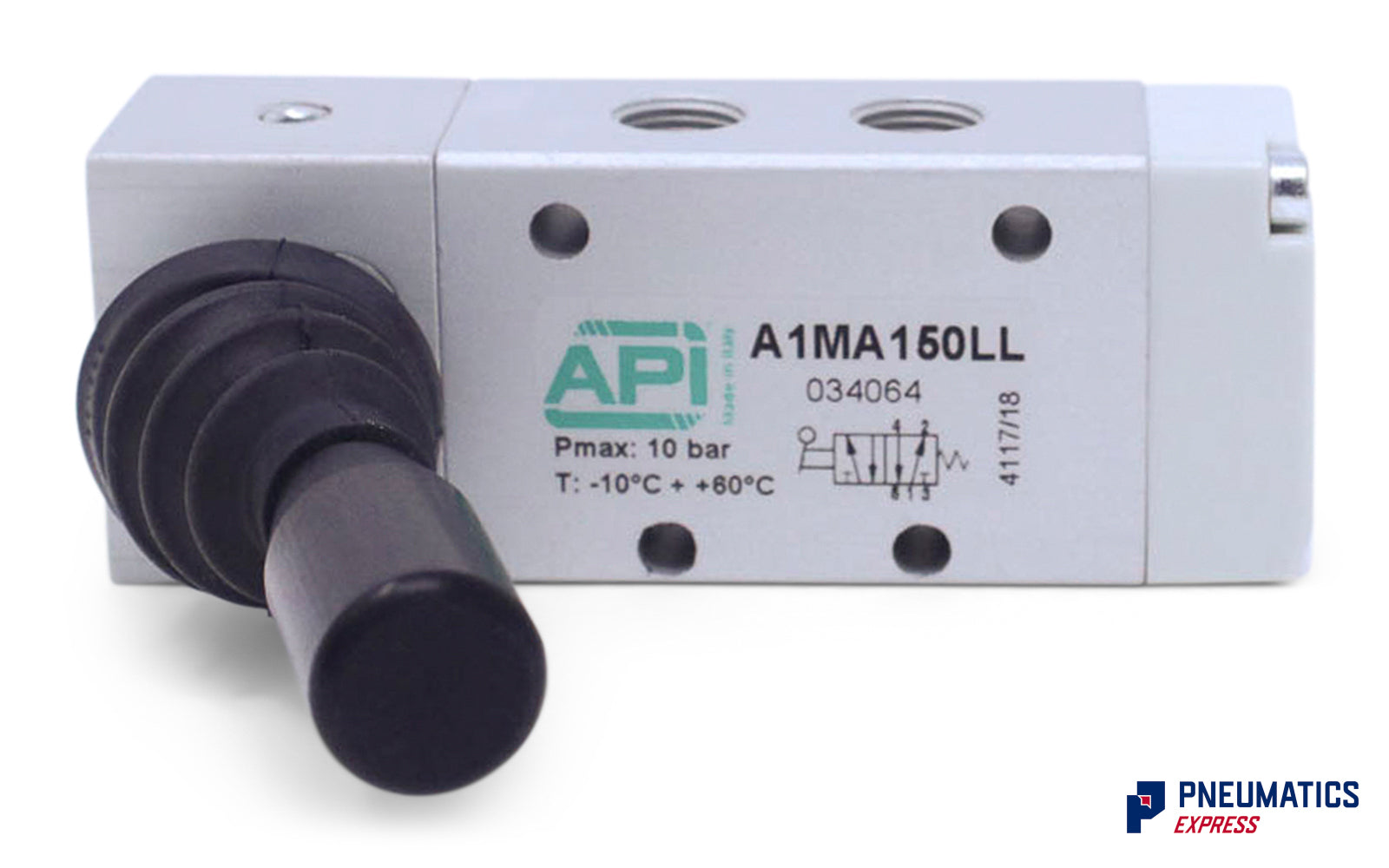

API A1MA150LL Lever Valve 1/8" (Automatic Spring Return)
- Regular price
- $69.10
- Sale price
- $69.10
Fully in Stock
'Quick Specs': MPN 034064, 1/8" BSP, 5/2 side lever manual valve, 1 position. Made in Italy.
The API A1MA150LL manual lever valve is a staple in industry due to its strong and premium alumnium chasis. Spools are in anodised alumnium and has a long life cycle. The lever valve has G 1/8" port connections, with 5 ports and 2 positions. On or Off; it's up to the mechanical operator, but there is an automatic spring return.
The lever valve can be mounted in a variety of ways.
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | 0 ÷ 10 bar |
| Temperature range | -10℃ ÷ +80℃ |
| Orifice | 6,5 mm |
| Flow | 650 Nl/min. at 6bar with ΔP 1bar |
| Mounting | In any position |
| Materials |
Body: Anodised aluminium |
