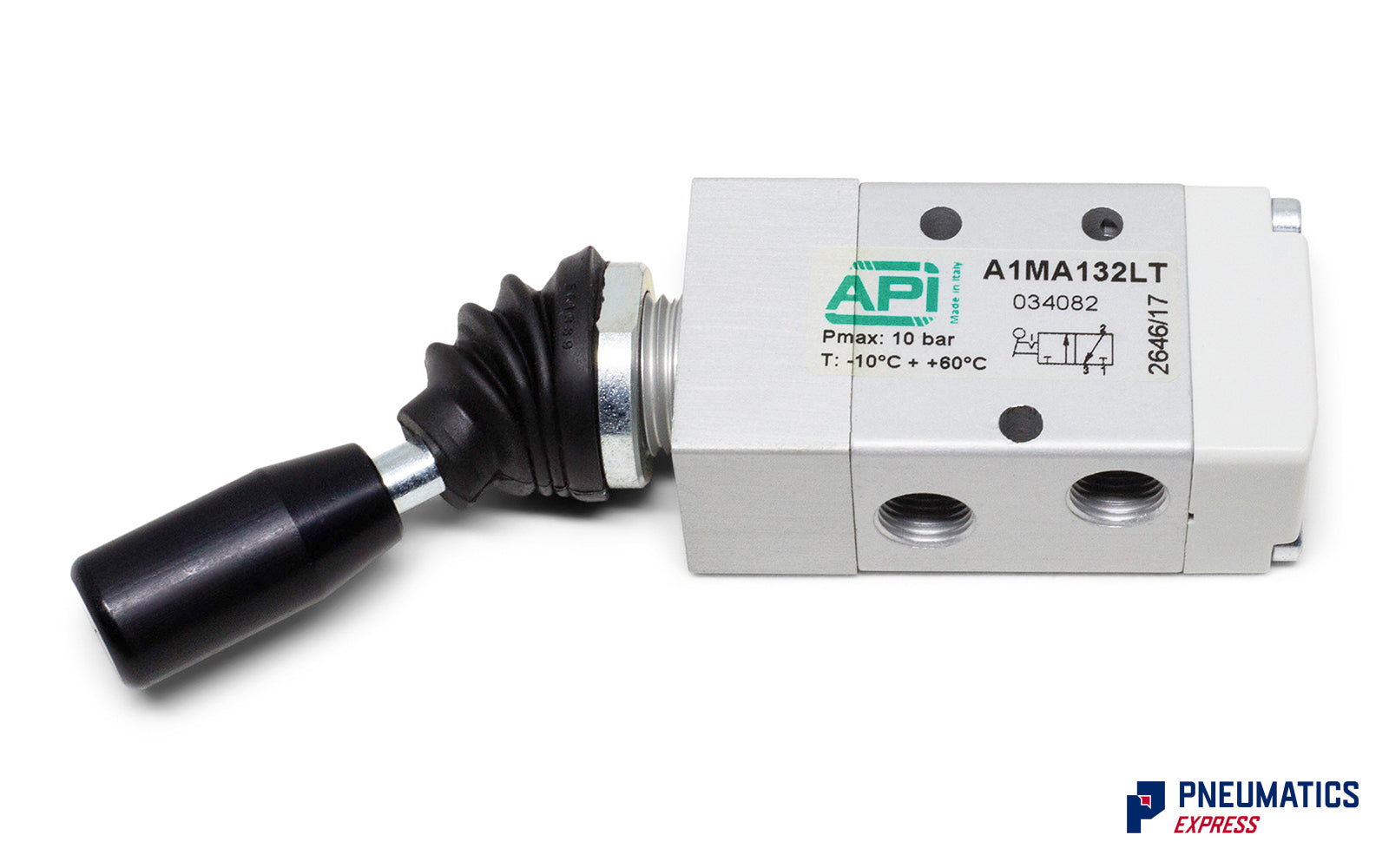

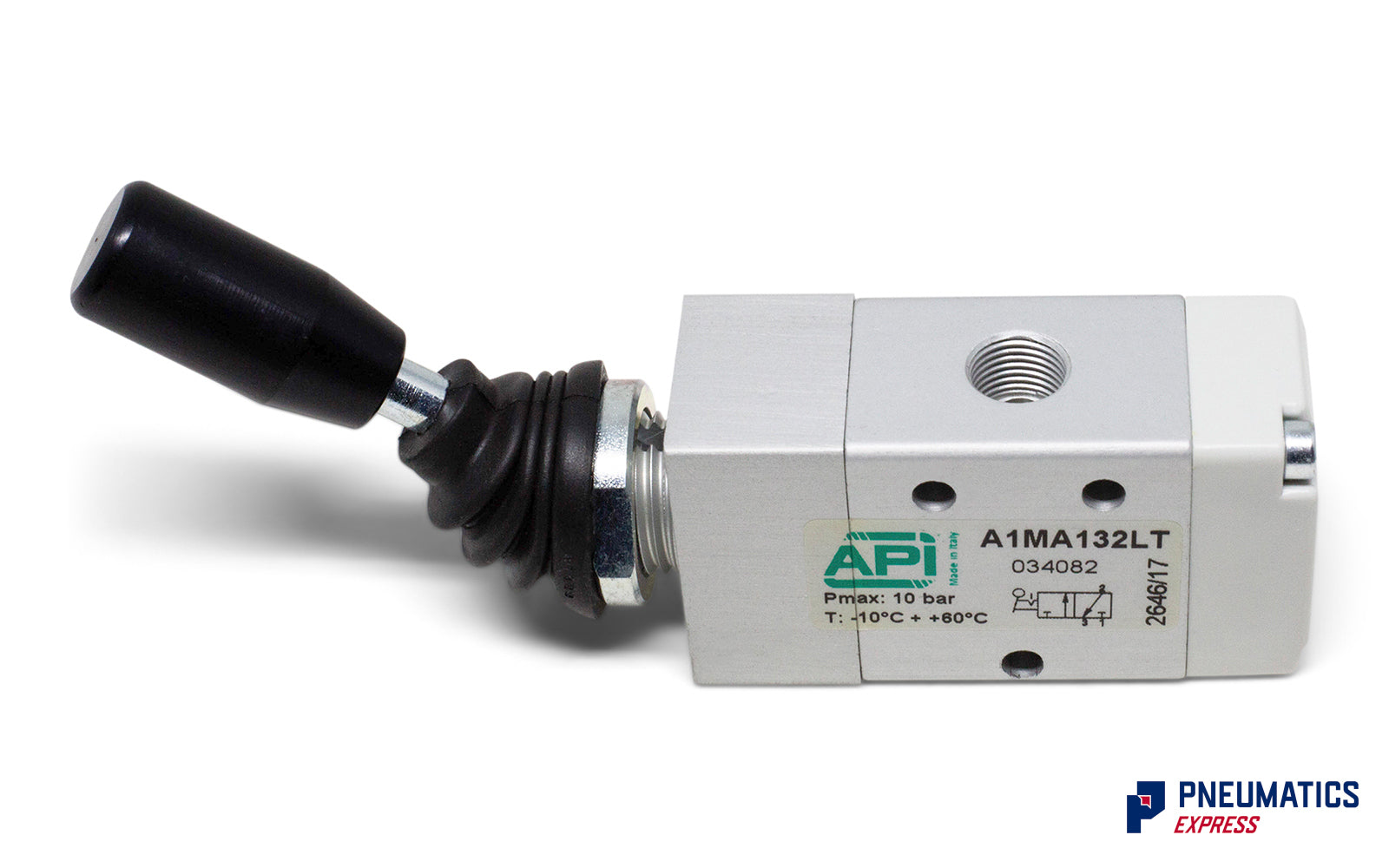

API A1MA132LT Manual Valve 1/8", 3/2 Push Pull
- Regular price
- $88.10
- Sale price
- $88.10
Fully in Stock
'Quick Specs': MPN 034082, 1/8" BSP, 3/2 top lever manual valve, 2 positions. Made in Italy.
The API A1MA132LT is a pneumatic lever valve with 1/8 port connections. Its lever is located on the top face on the valve and is useful for certain mounting positions. It has three ports and two positions.
Its metallic valve body, robust spring, and high quality lever are markets of a high end lever valve. Due to its competitve price point, it is one of our more popular hand valves.
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | 0 ÷ 10 bar |
| Temperature range | -10℃ ÷ +80℃ |
| Orifice | 6,5 mm |
| Flow | 650 Nl/min. at 6bar with ΔP 1bar |
| Mounting | In any position |
| Materials |
Body: Anodised aluminium |
