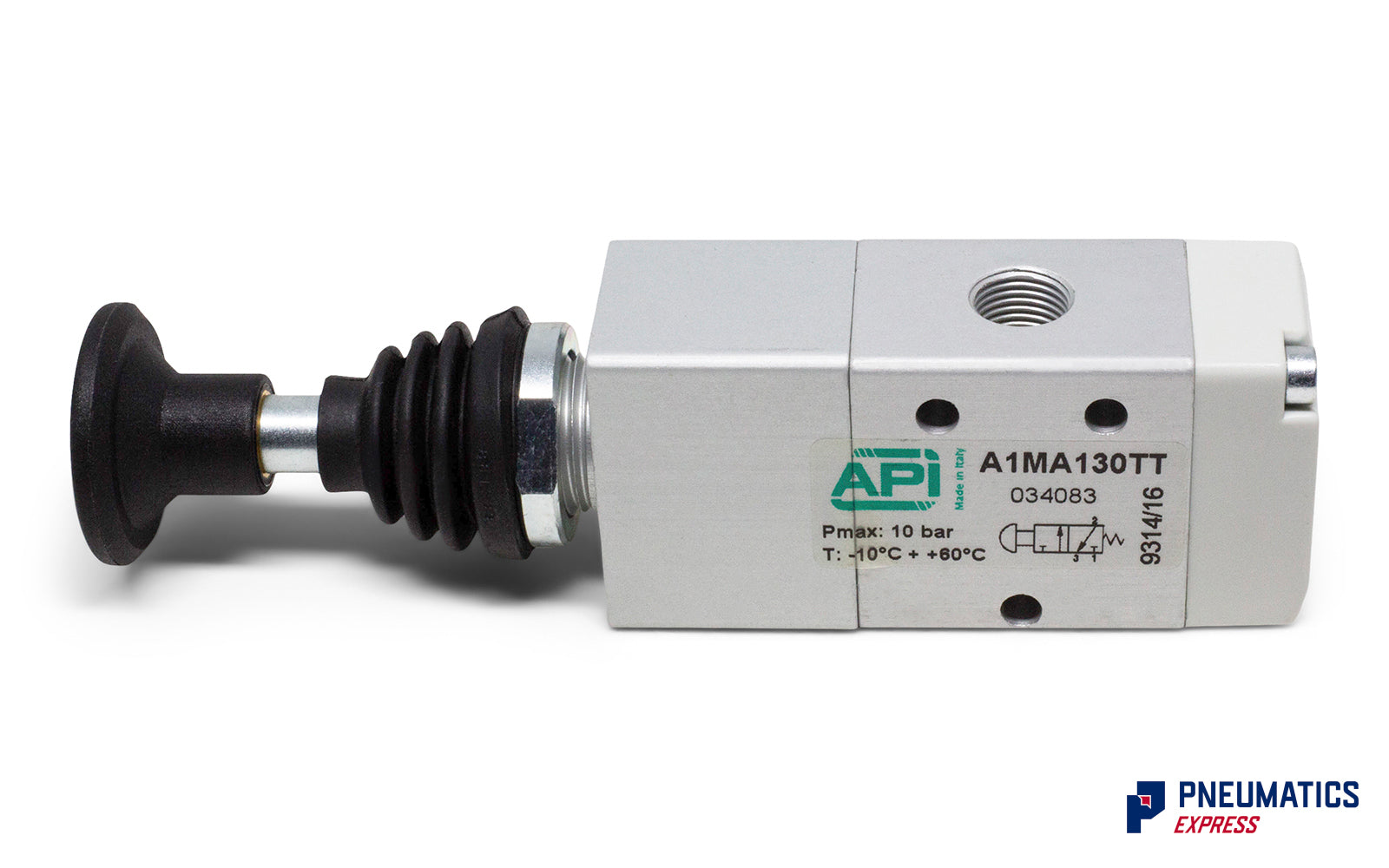

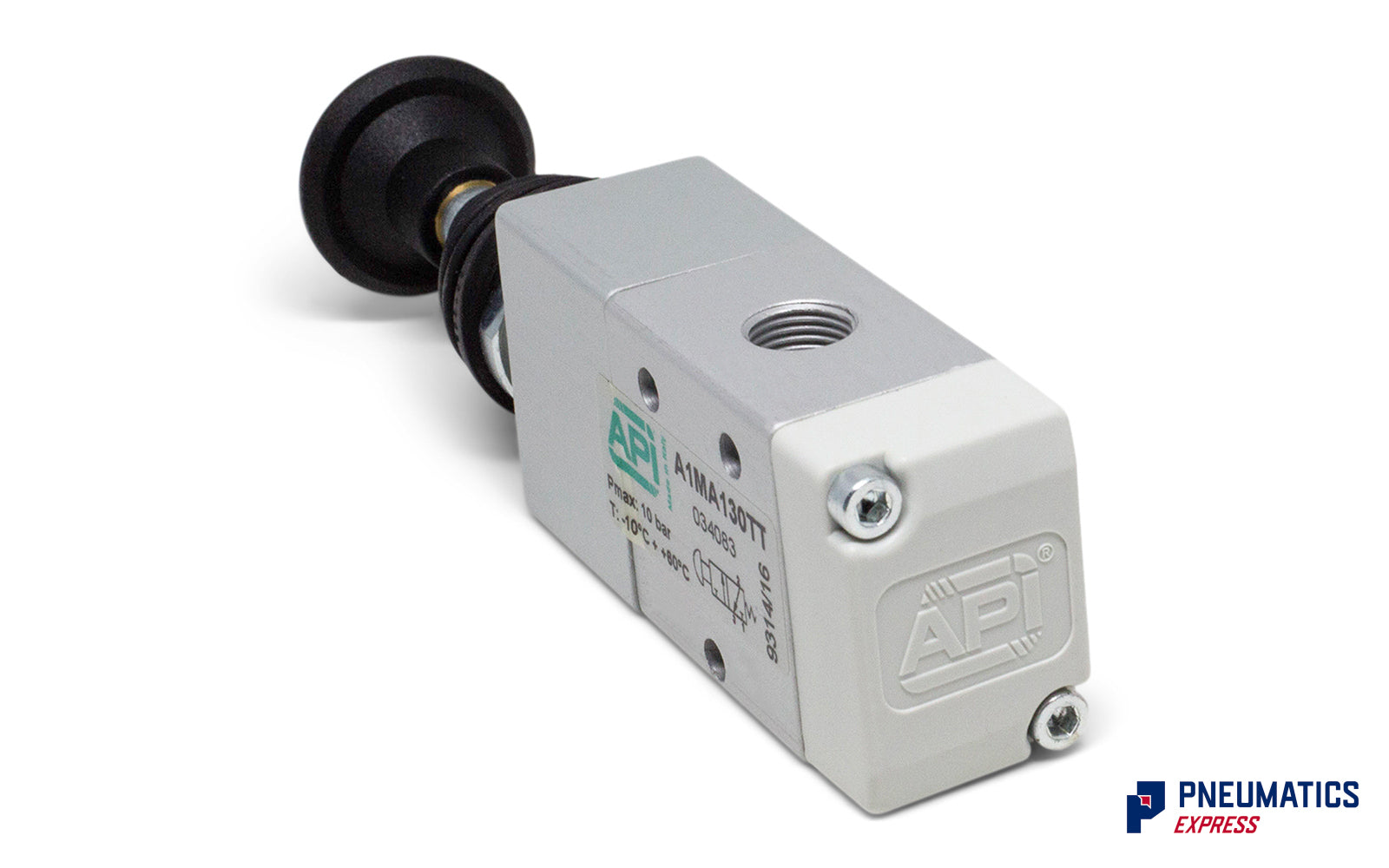

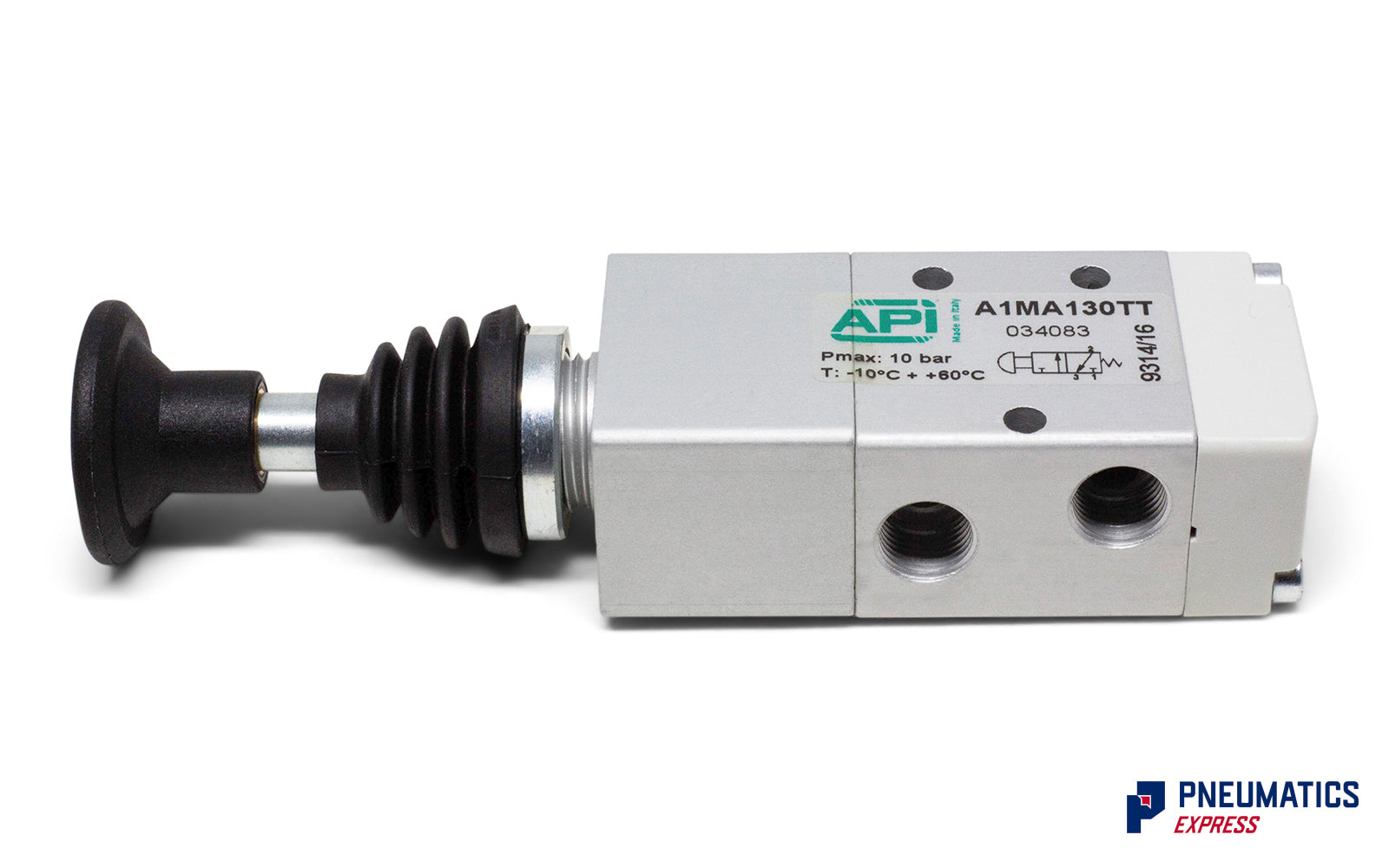

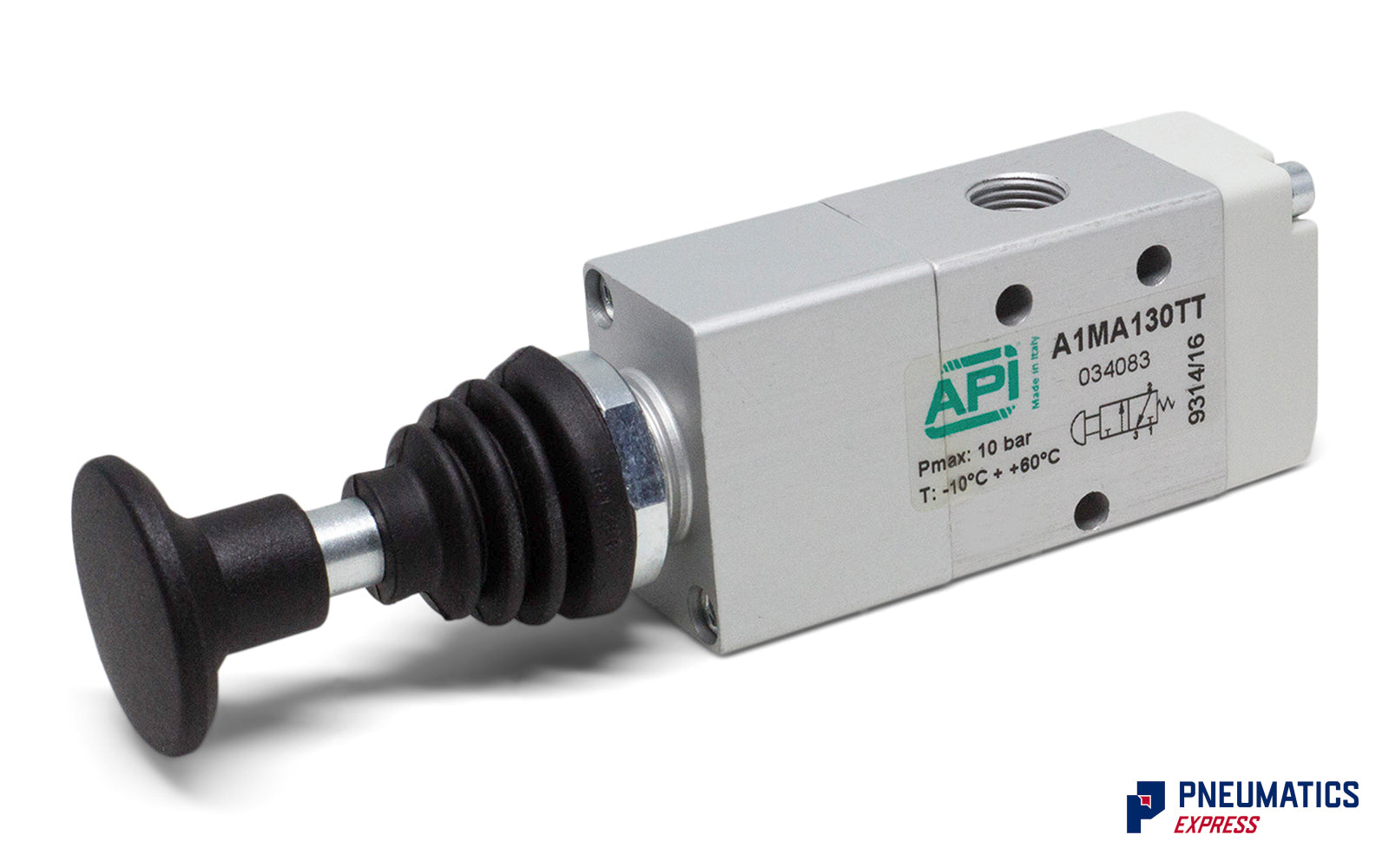

API A1MA130TT Manual Valve 1/8"", 3/2 Push/Pull
- Regular price
- $71.70
- Sale price
- $71.70
Fully in Stock
Free shipping within the UK! Worldwide shipping also available.
MPN 034083, 1/8" BSP 3/2 NC manual valve, push-pull, 1 position
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | 0 ÷ 10 bar |
| Temperature range | -10℃ ÷ +80℃ |
| Orifice | 6,5 mm |
| Flow | 650 Nl/min. at 6bar with ΔP 1bar |
| Mounting | In any position |
| Materials |
Body: Anodised aluminium |
