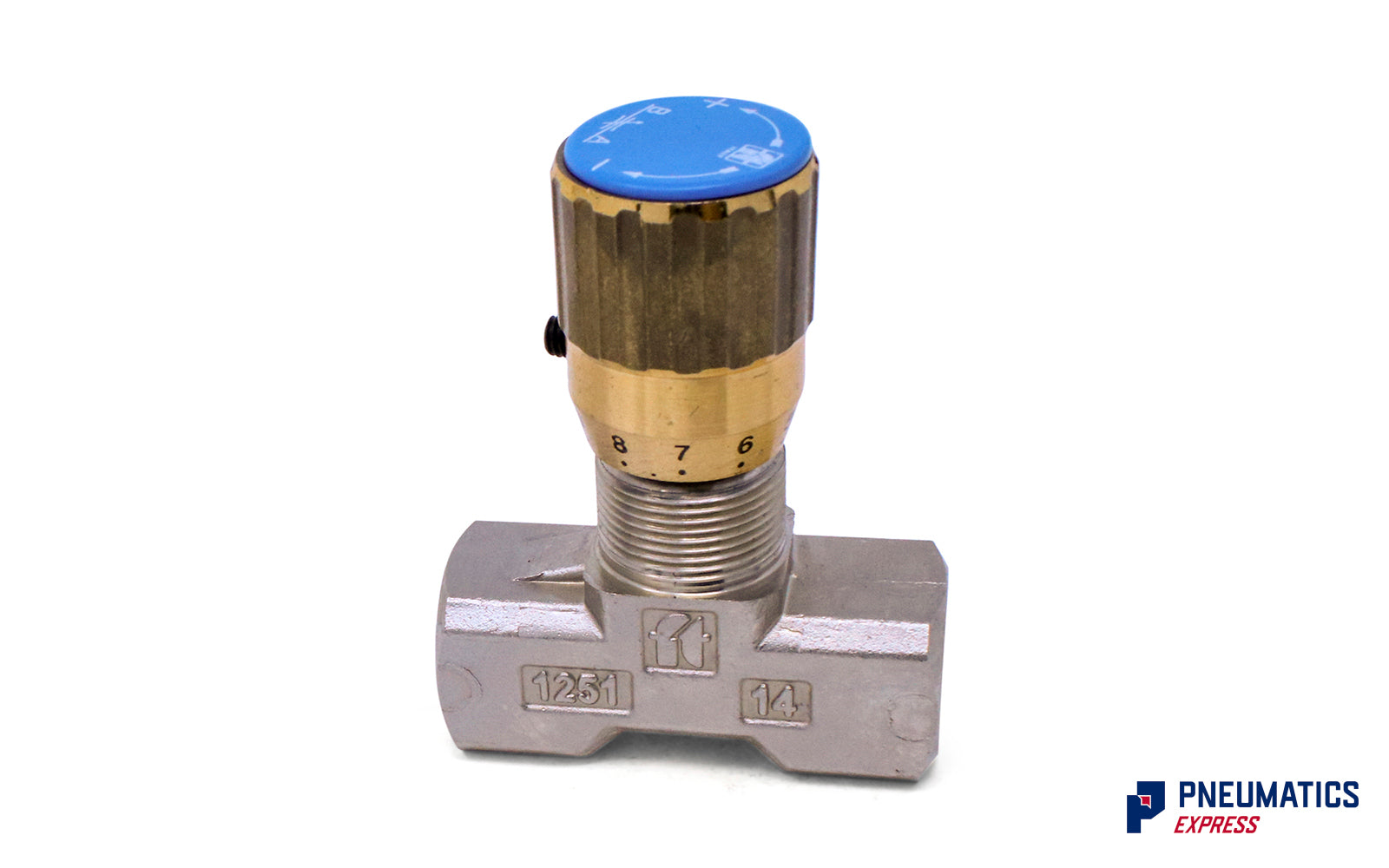

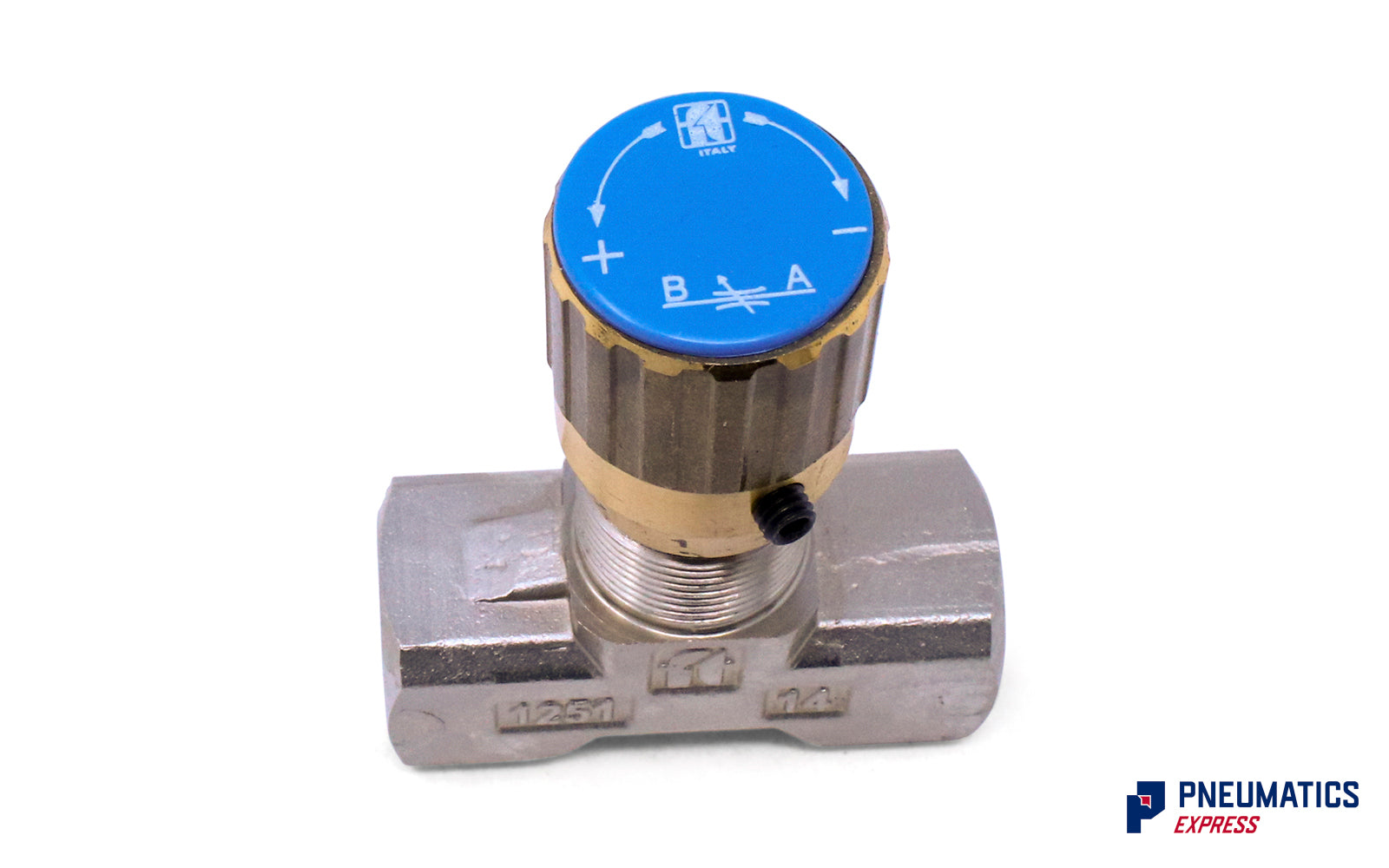

Tognella FT 1251/2-01-14 | 2-way Hydraulic Flow Regulator 1/4" (Max 210 bar)
TOGNELLA FT 1251/2-01-14 is a double acting, 1/4-inch hydraulic flow regulator with fine control. It has a maximum working pressure of 210 bar and can be used with hydraulic oil. Made in Italy, this regulator has a body made of OT 58 - UNI 5705-NICKEL PLATED and a needle made of X 10 CR NI S 1809- UNI 6900 or NITROLE. The antiextrusion ring is made of PTFE and the knob is made of GD AL SI 12 - UNI 5706.
TYPE:14 | G 1/4 |
FLOW SQ MM² | 12,57 |
MAX WORKING PRESSURE BAR | 210 bar |
WORKING TEMPERATURE ℃ | -20℃ to 100℃ |
FILTRATION GRADE μM | 25 μm |
