12mm to 12mm Elbow Union Push-In Fitting (Nickel Plated Brass)
- Regular price
- $9.20
- Sale price
- $9.20
Good stock – Lead time 4-7 days
Free shipping within the UK! Worldwide shipping also available.

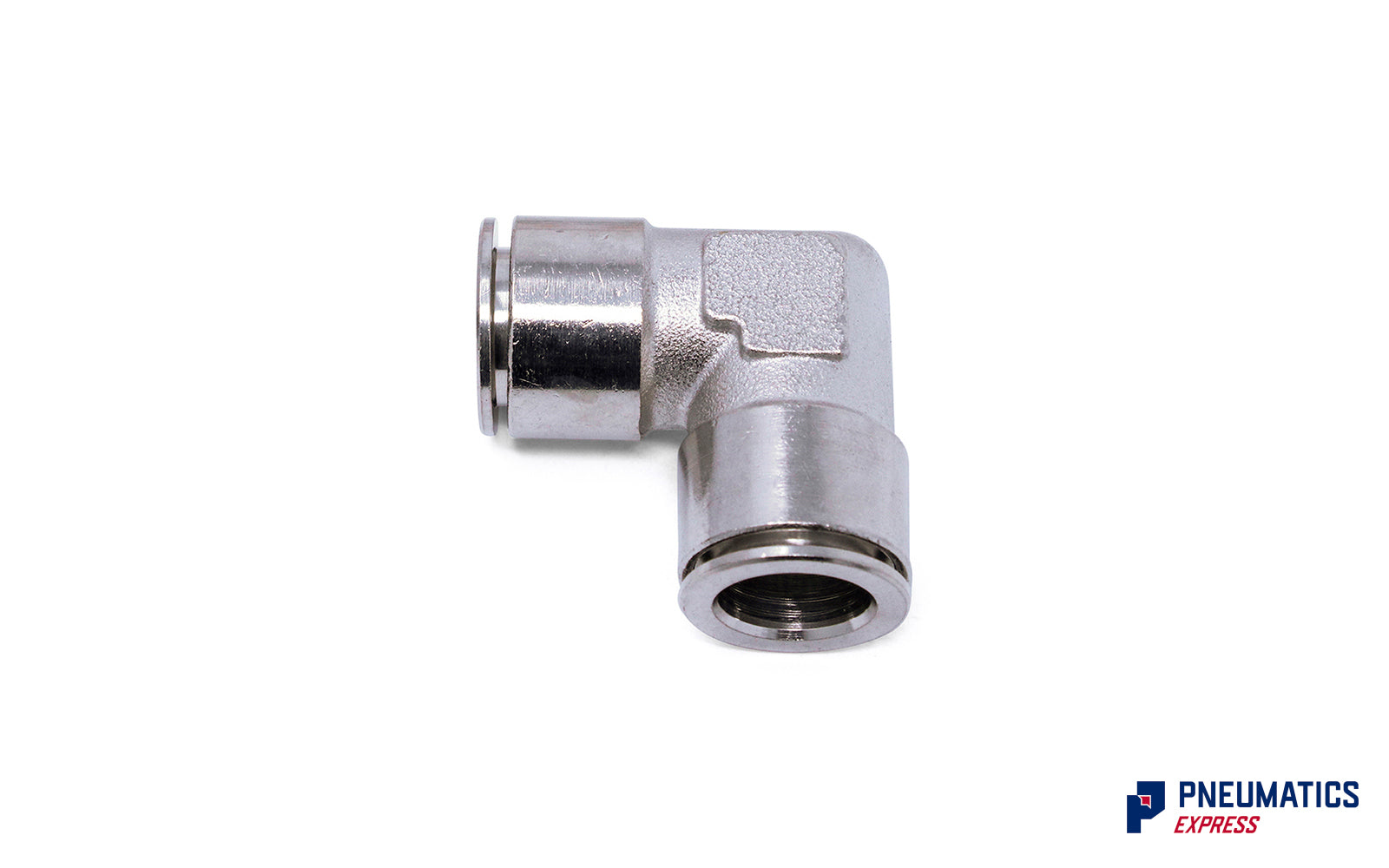

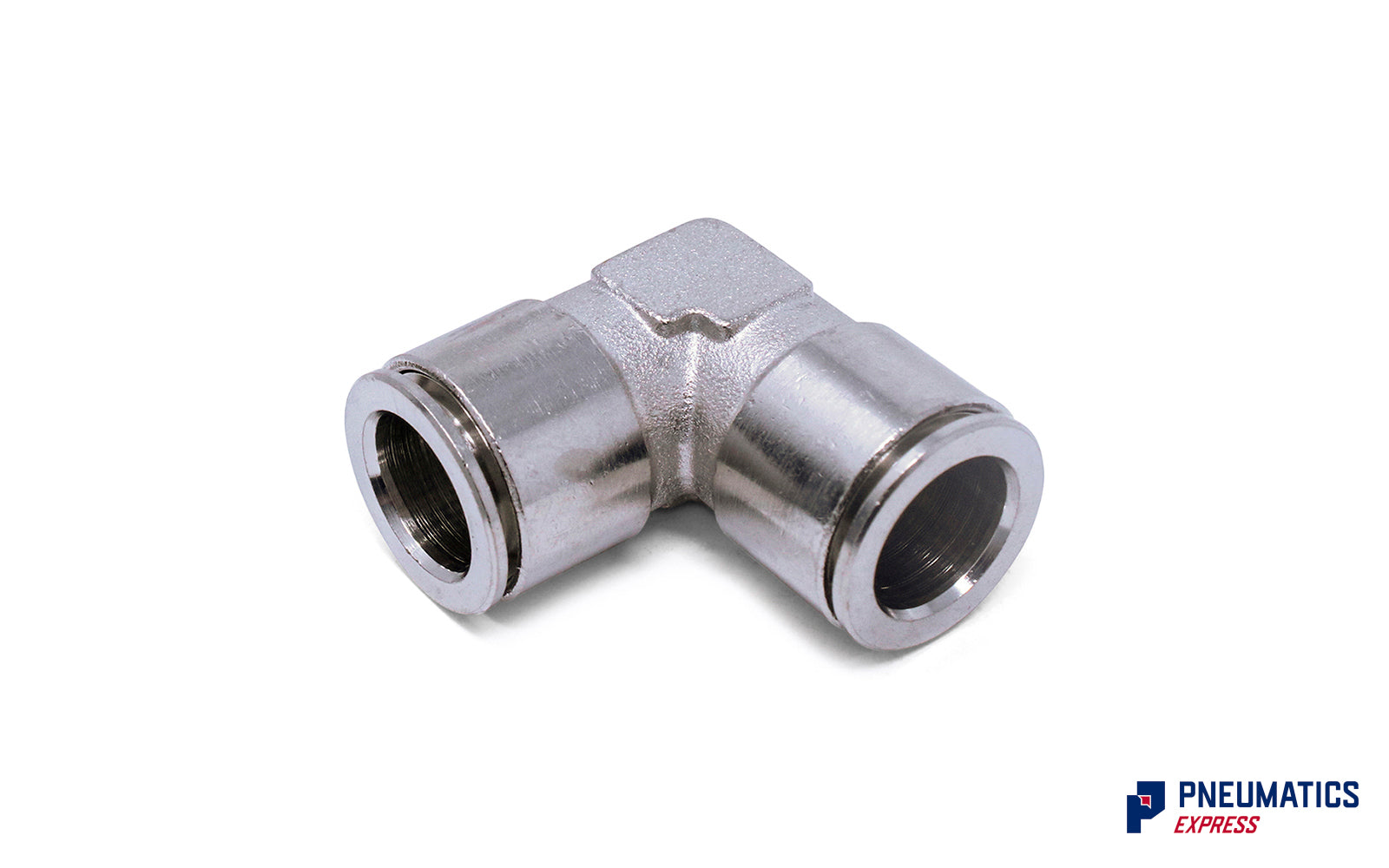

Tube Ø12 Equal elbow Push-in fitting in nickel plated brass. Made in Italy by API. This is a high-end elbow union pneumatic fitting as both release rings are finished in NPB for added robustness. The collet is stainless steel.
MPN R181212
Technical Specifications
| Fluid | Compressed air |
| Pressure range | 0,5 ÷ 12 bar (Vacuum resistance: 750mm.Hg) |
| Temperature range | -20℃ ÷ +70℃ |
| Parallel threads | UNI-ISO 228/1 (BSP) |
| Taper threads | UNI-ISO 7/1 (BSPT) |
| Metric threads | ISO R/262 |
| Connection tubes | Calibrated nylon, Polyurethane and Rilsan |
| Tube tolerances | from Ø3 mm to 10mm: ±0,05mm Ø12mm and 14mm : ±0,1mm |
| Materials |
Body and release collar: Nickel plated brass |
