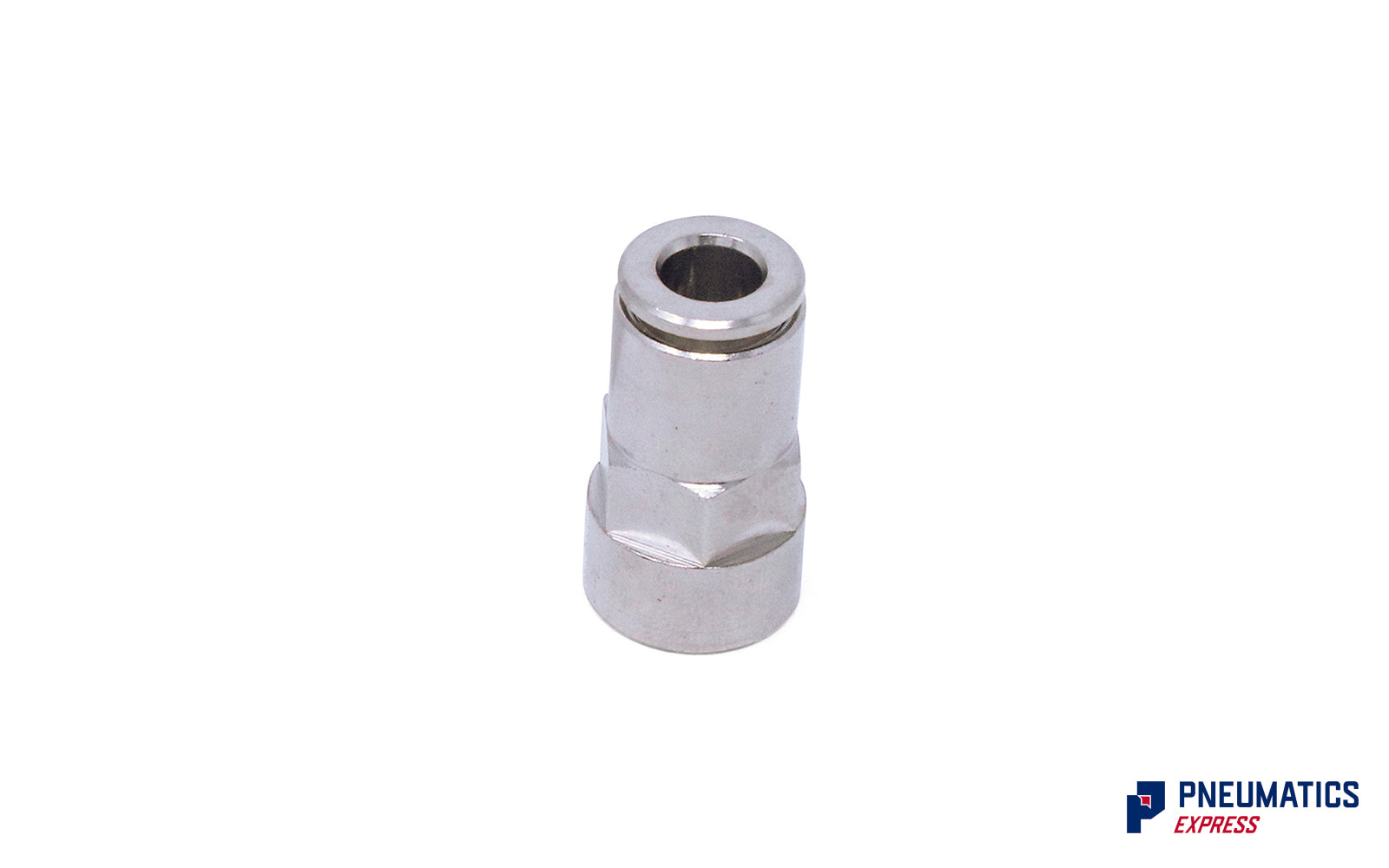

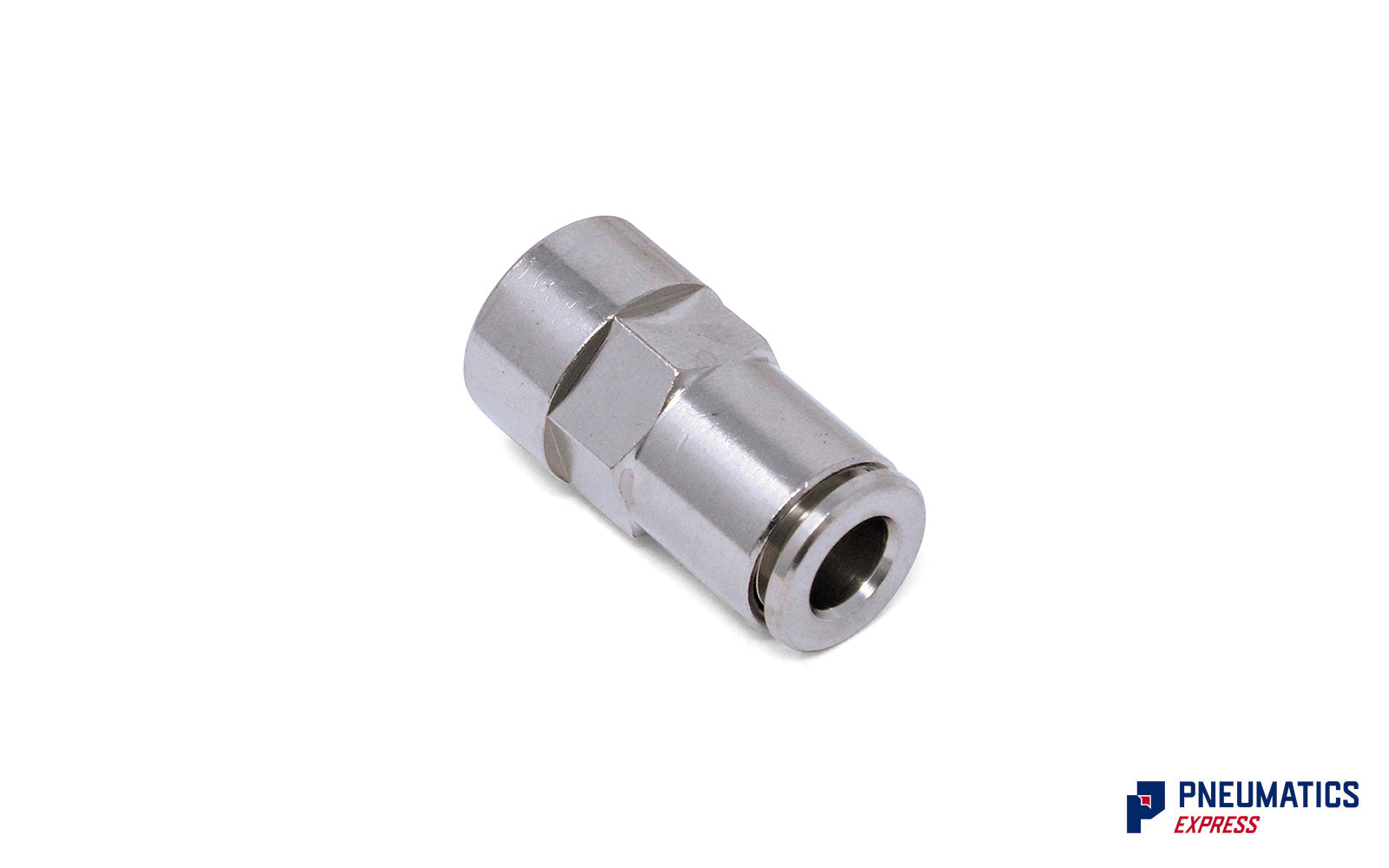

R130618 1/8" to 6mm Female Stud Push-In Fitting (Nickel Plated Brass)

Regular price: $5.30
Sale price: $5.30

Fully in Stock

API Push-in fittings series R

In nickel plated brass

MPN 020064 , TubeØ6x 1/8" Female BSP Stud

Technical Specifications

Fluid	Compressed air
Pressure range	0,5 ÷ 12 bar (Vacuum resistance: 750mm.Hg)
Temperature range	-20℃ ÷ +70℃
Parallel threads	UNI-ISO 228/1 (BSP)
Taper threads	UNI-ISO 7/1 (BSPT)
Metric threads	ISO R/262
Connection tubes	Calibrated nylon, Polyurethane and Rilsan
Tube tolerances	from Ø3 mm to 10mm: ±0,05mm Ø12mm and 14mm : ±0,1mm
Materials	Body and release collar: Nickel plated brass Collet: Stainless steel Seals: Nitrile rubber (NBR)
