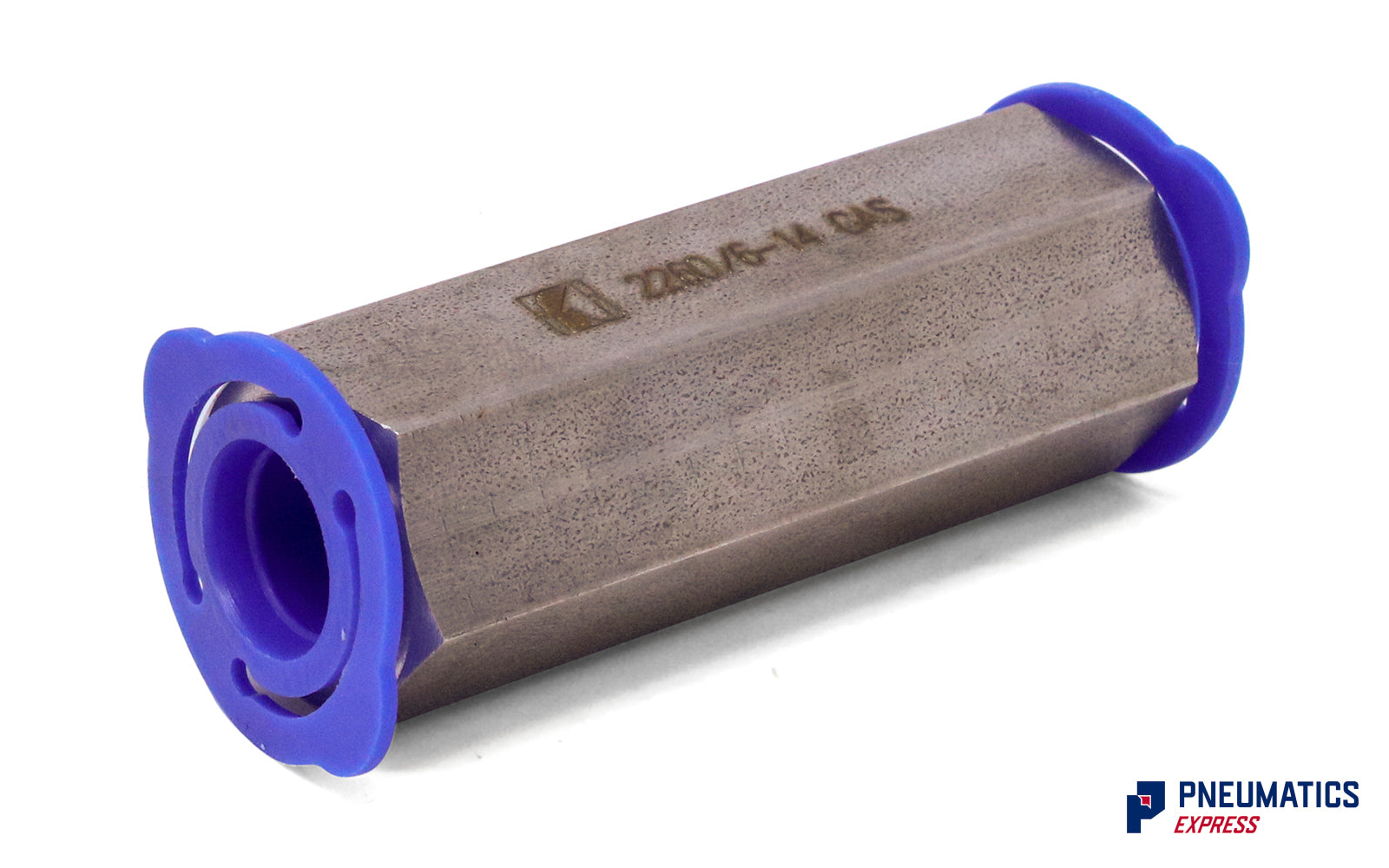

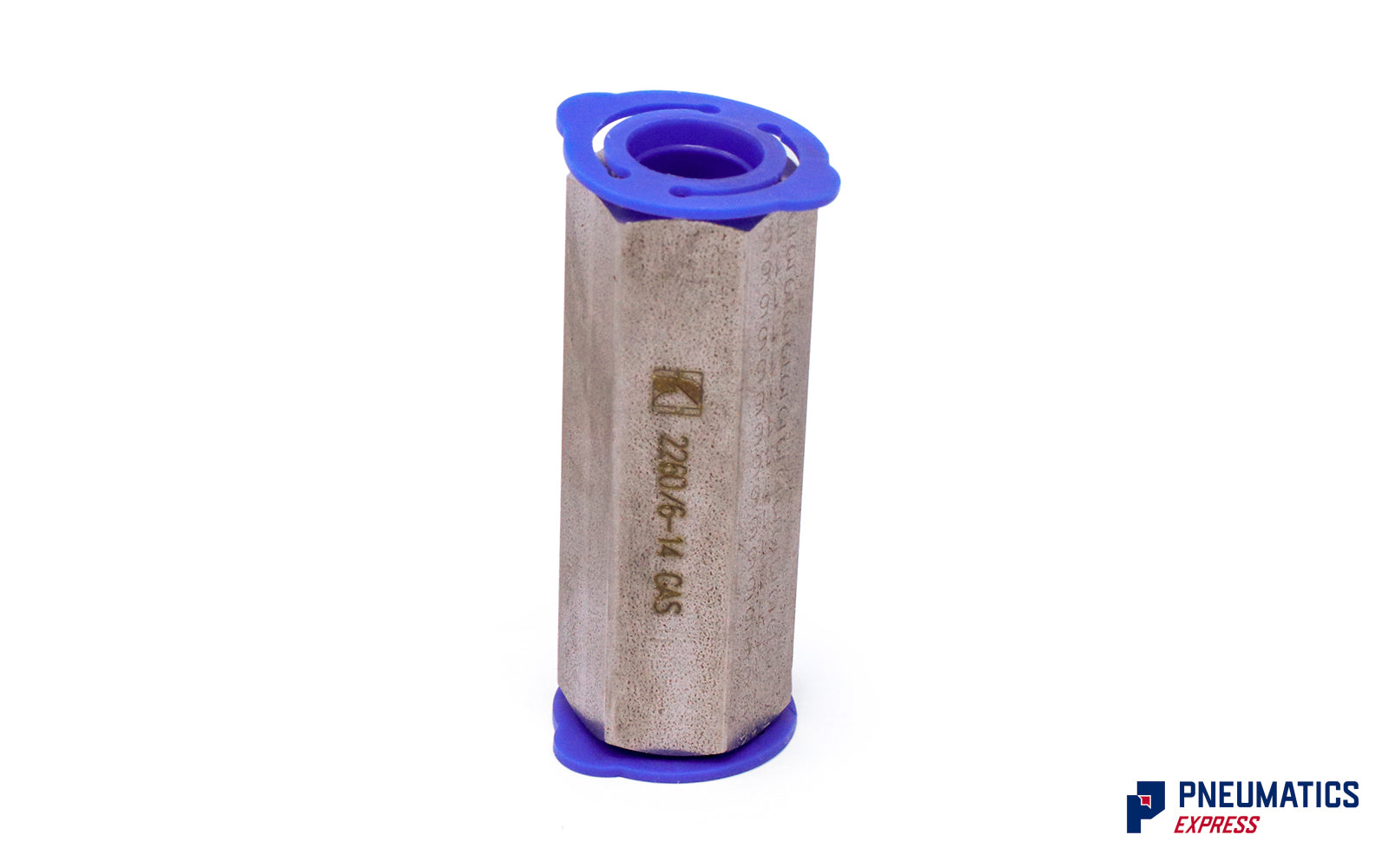

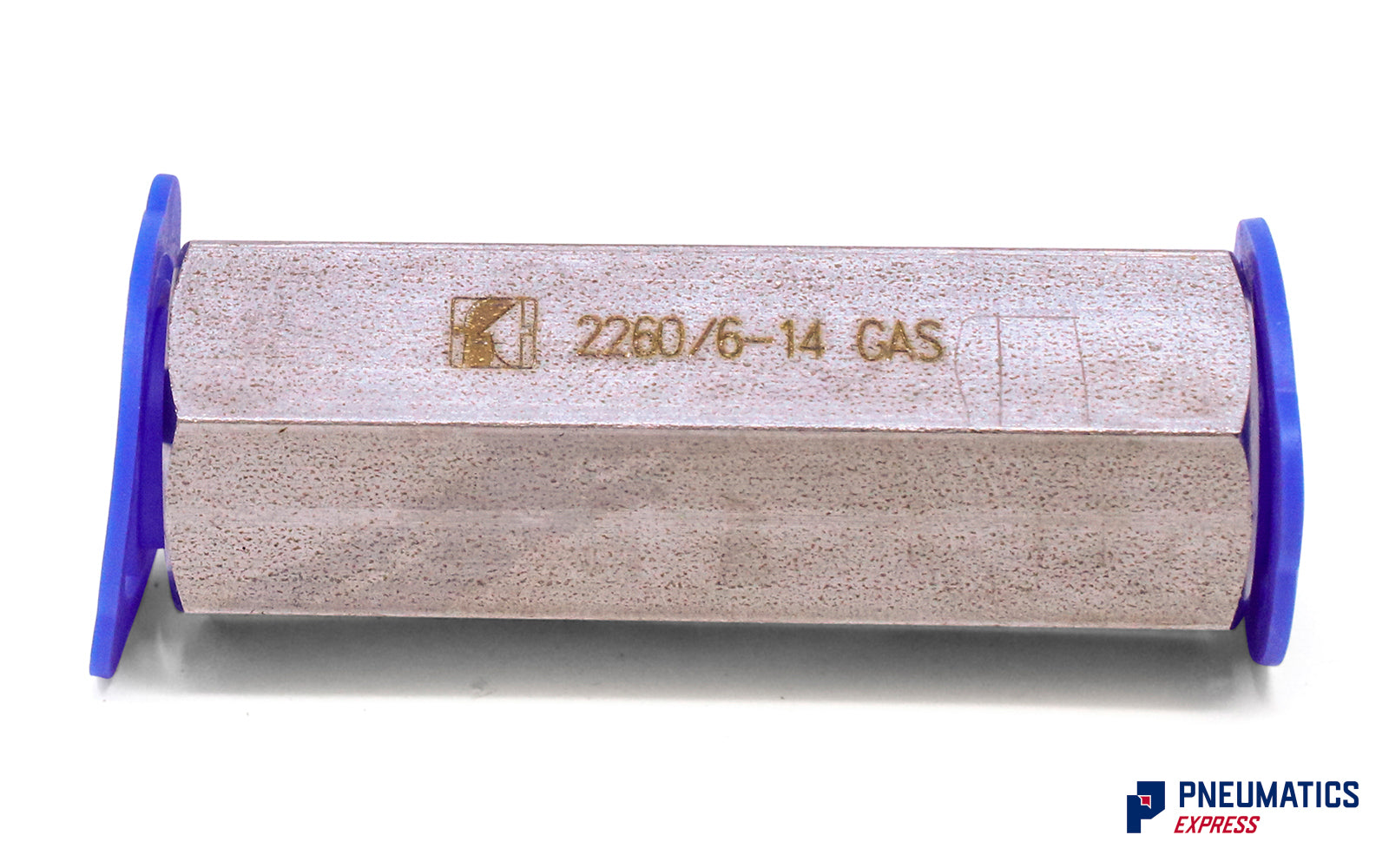

Tognella FT 2260/6-14 Hydraulic Check Valve 1/4"

TOGNELLA's FT 2260/6-14 Hydraulic Check Valve features an inline, single-acting design with a ball type alignment guide made of high-strength composite material. This construction allows for unobstructed flow and exceptional breaking strength and wear resistance, as confirmed by extensive testing. Available with two opening pressure calibrations, the valve has a working pressure of 400 bar and a minimum bursting pressure of 1600 bar. It is designed for a working temperature range of -20°F to 100°F and requires a filtration grade of 25 μm. The body is made of 9S MN PB 23 material, the spring is AISI 302, the ball is UNI 100 C6, and the ball guide is made of nylon 66 with carbon fiber.
