1/8" BSP to 4mm Male Stud Push-In Fitting (Nickel Plated Brass)
- Regular price
- $3.20
- Sale price
- $3.20
Fully in Stock
Free shipping within the UK! Worldwide shipping also available.

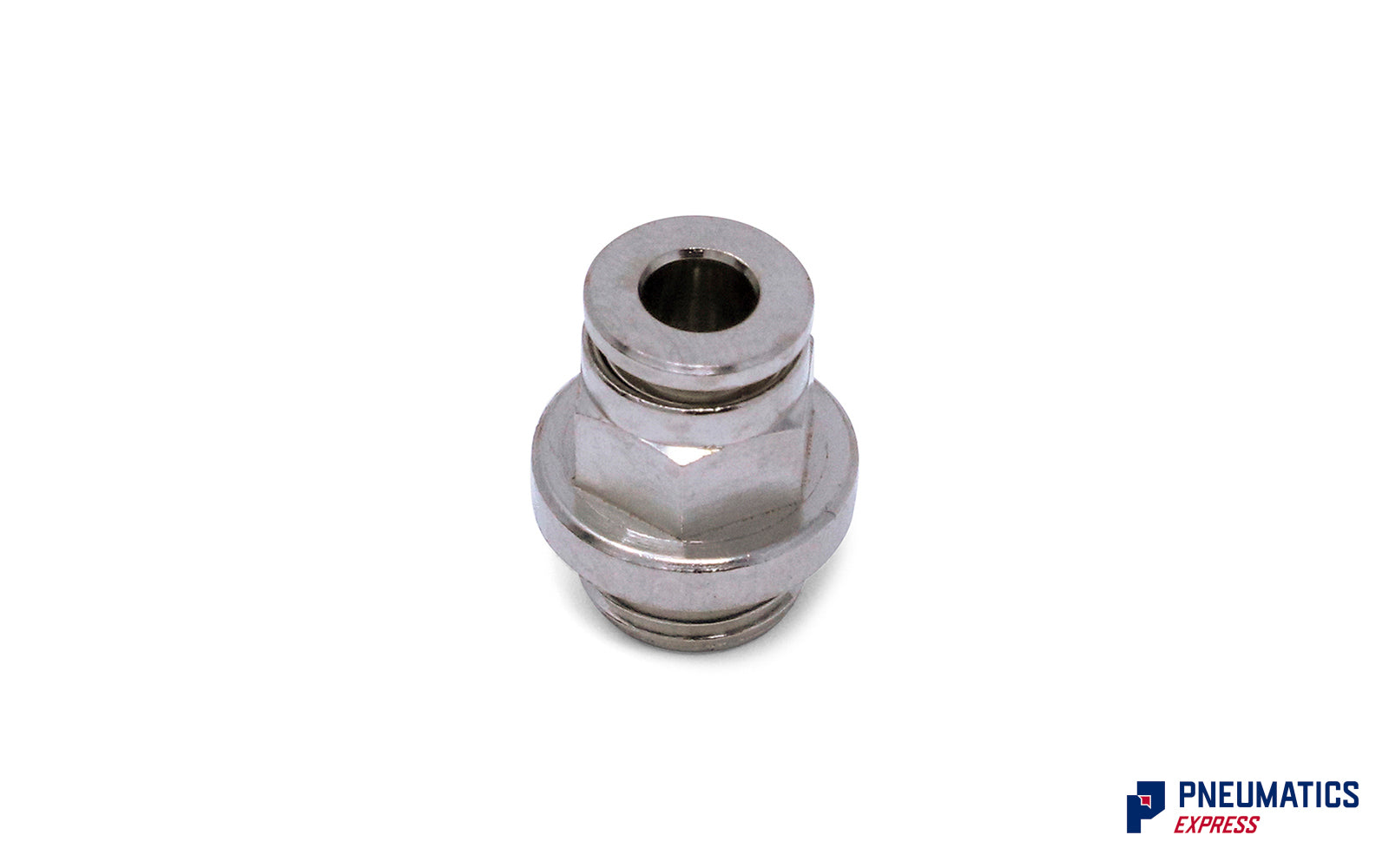

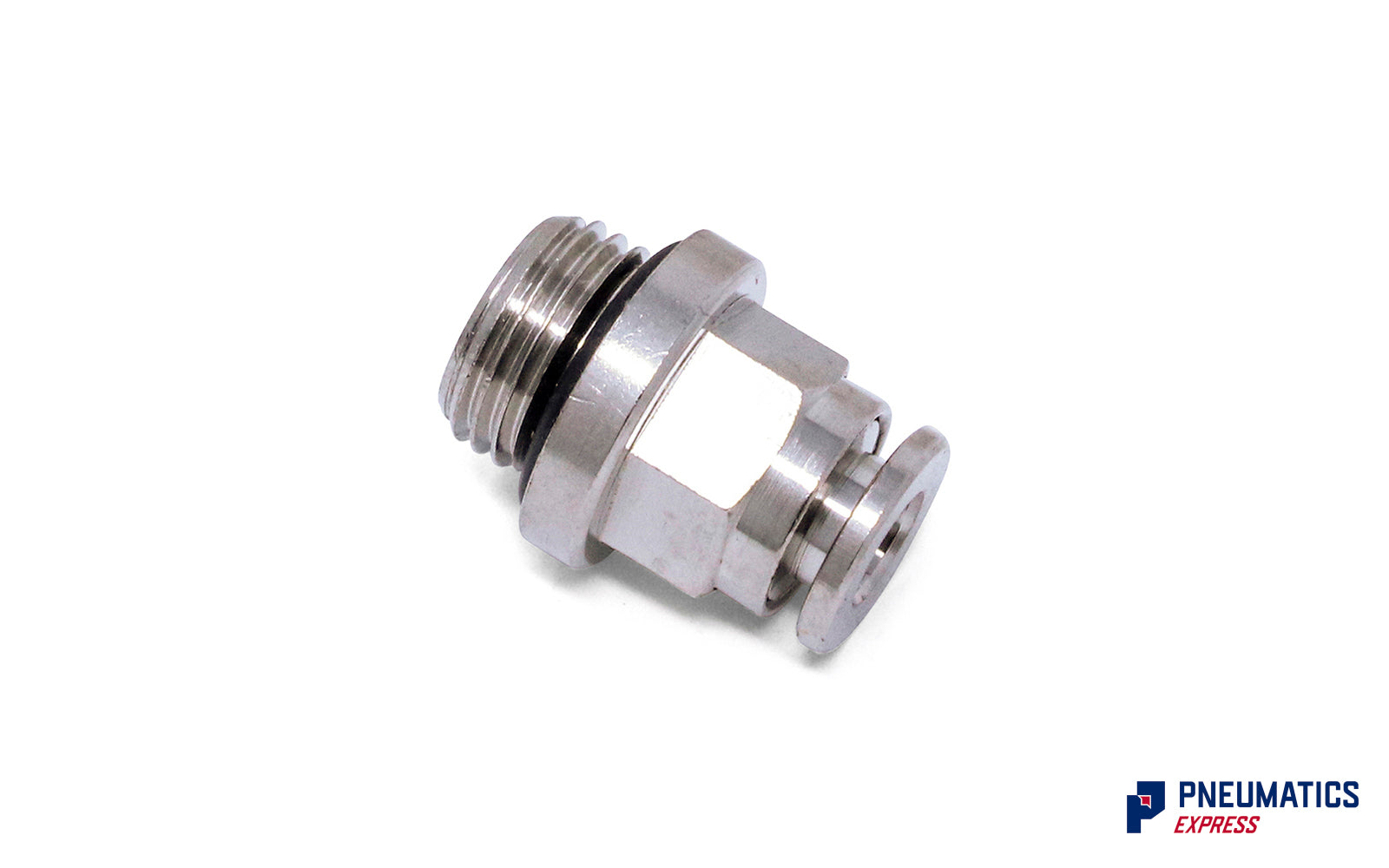

Tube Ø4 x 1/8"BSP Stud Push-in fitting in nickel plated brass. Made in Italy.
MPN R120418
Technical Specifications
| Fluid | Compressed air |
| Pressure range | 0,5 ÷ 12 bar (Vacuum resistance: 750mm.Hg) |
| Temperature range | -20℃ ÷ +70℃ |
| Parallel threads | UNI-ISO 228/1 (BSP) |
| Taper threads | UNI-ISO 7/1 (BSPT) |
| Metric threads | ISO R/262 |
| Connection tubes | Calibrated nylon, Polyurethane and Rilsan |
| Tube tolerances | from Ø3 mm to 10mm: ±0,05mm Ø12mm and 14mm : ±0,1mm |
| Materials |
Body and release collar: Nickel plated brass |
