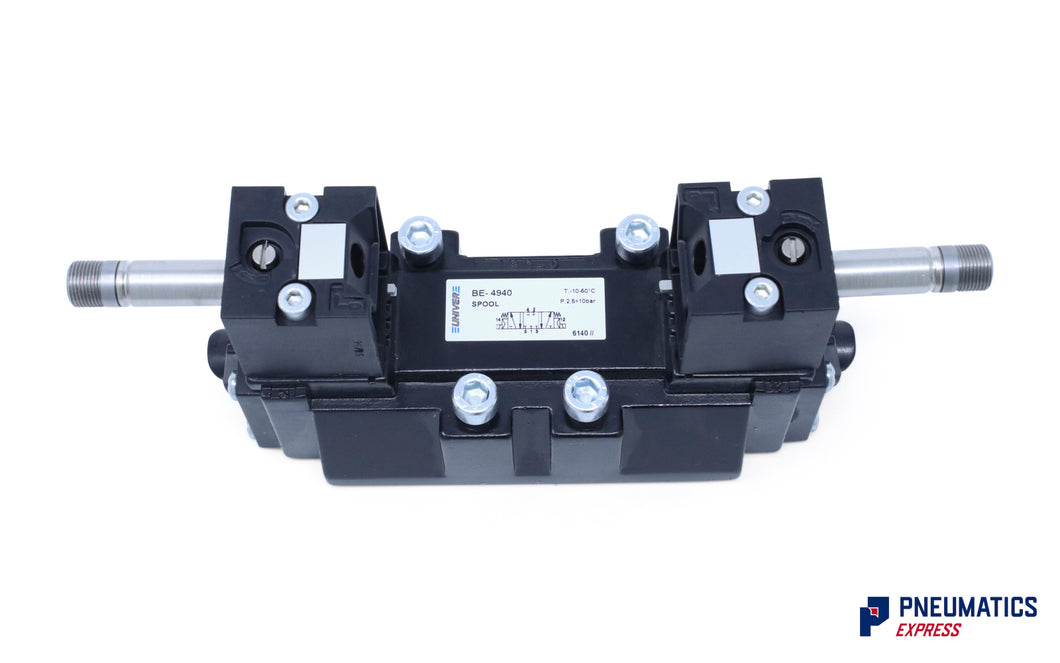

Univer BE-4940 ISO5599 Solenoid Valve

Univer BE-4940 ISO5599 Solenoid Valve is a size 2 ISO 5599/1 Valve with a double electrical impulse spool system. The manual control of the electropilot is available in two stable positions and can be operated with a screwdriver. For added safety, a version with an embedded button that can only be activated by a center punch is available. This electropilot is compatible with various fluids including 50 µm filtered air with or without dehumidification. It features an acetalic resin with zamak cover and seals made from nitrile rubber and polyurethane. The electropilot/coil is an AA series/U3 with a power consumption of 2.5W (DC) - 5VA (AC) and a voltage of 12VDC-24VDC-24VAC-110VAC-230VAC. The valve has a nominal bore of 10 mm and a nominal flow rate of 2300 Nl/min.
