Univer AG-3051 Poppet Valve for Vacuum 1" 3/2 Normally Closed
- Regular price
- $965.30
- Sale price
- $965.30
Fully in Stock

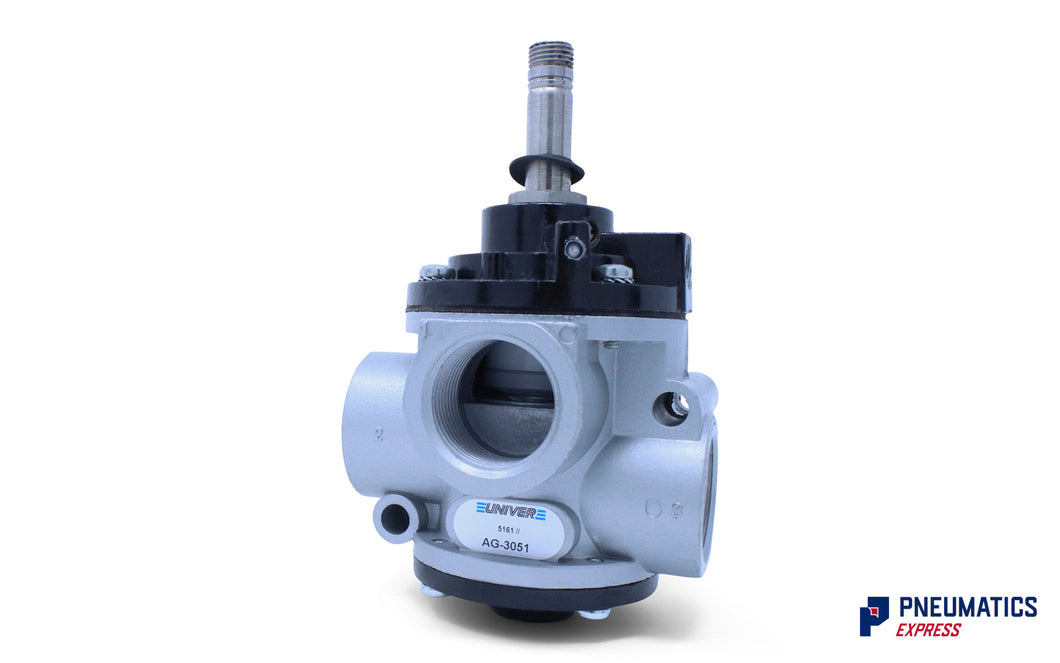

The Univer AG-3051 is a 3/2 poppet solenoid valve for vacuum applications. It has a normally closed operation and 1" port connections. The valve body is made of zamak and is suitable for all environments. The AG-3051 is servoassisted with compressed air, which is a feature appreciated by Univer for decades. It is compatible with Univer (U2) coils and has various voltage options including 12 V DC, 24 V DC, 24 V AC, 110 V AC, and 230 V AC.
| Ambient temperature | Max +50℃ |
| Fluid | 50 μm filtered air, with or without lubrication-vacuum |
| Commutation System | Poppet |
| Vacuum Max | 759,5 mm Hg |
| Valve body | Zamak (G 1/8÷G 1), Aluminium (G 1½) |
| Seals | Polyurethane conical poppets and Vulkollan diaphragm / silicon poppets |
| Spool | Aluminium (G 1/8 ÷ G 3/8), Steel + plastic (G 1/2÷G 1½) |
