Mindman MVSC-220-4E1-AC110-L-G, 5/2 G1/4" LED Indicator
- Regular price
- $49.10
- Sale price
- $49.10
Fully in Stock

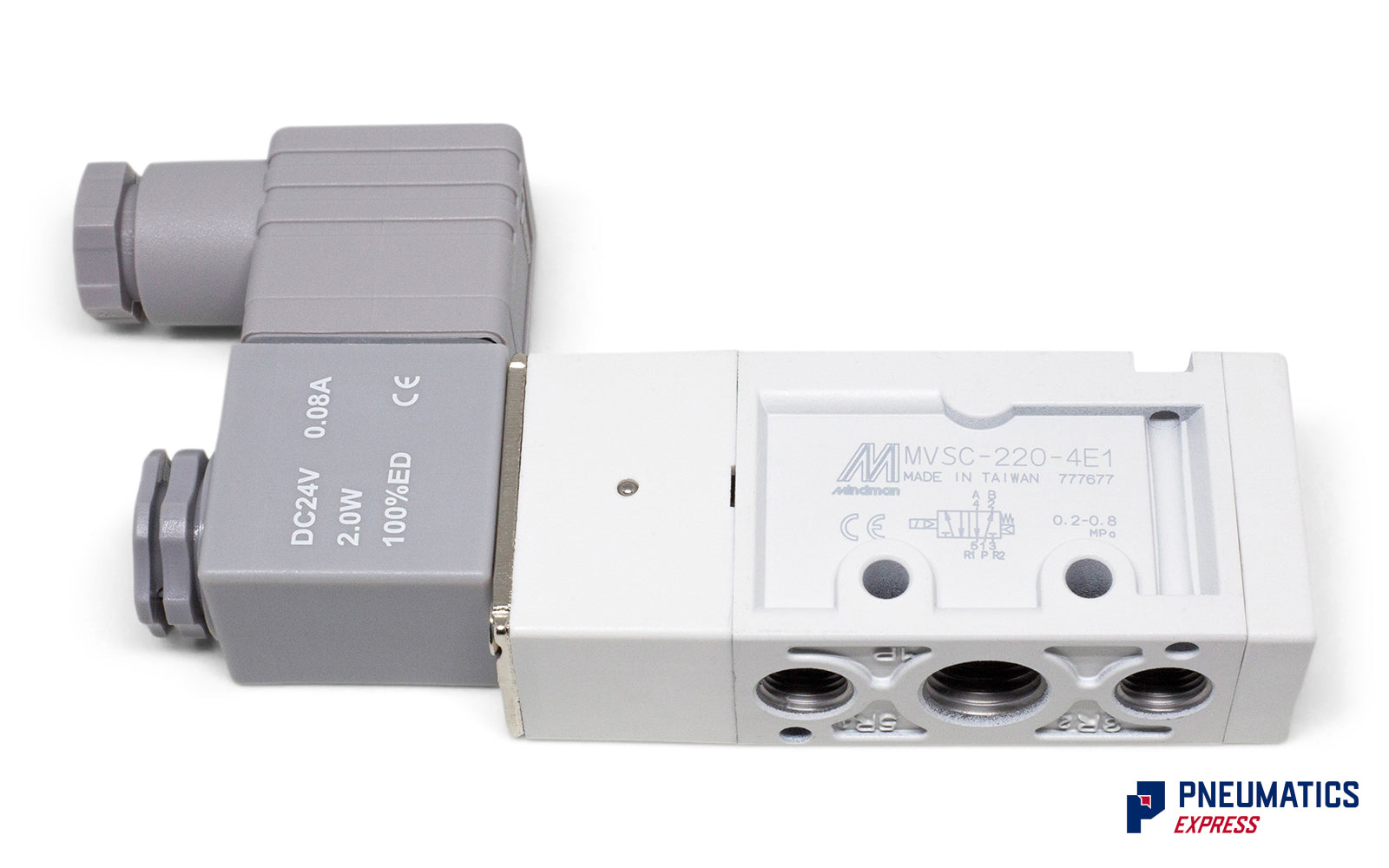

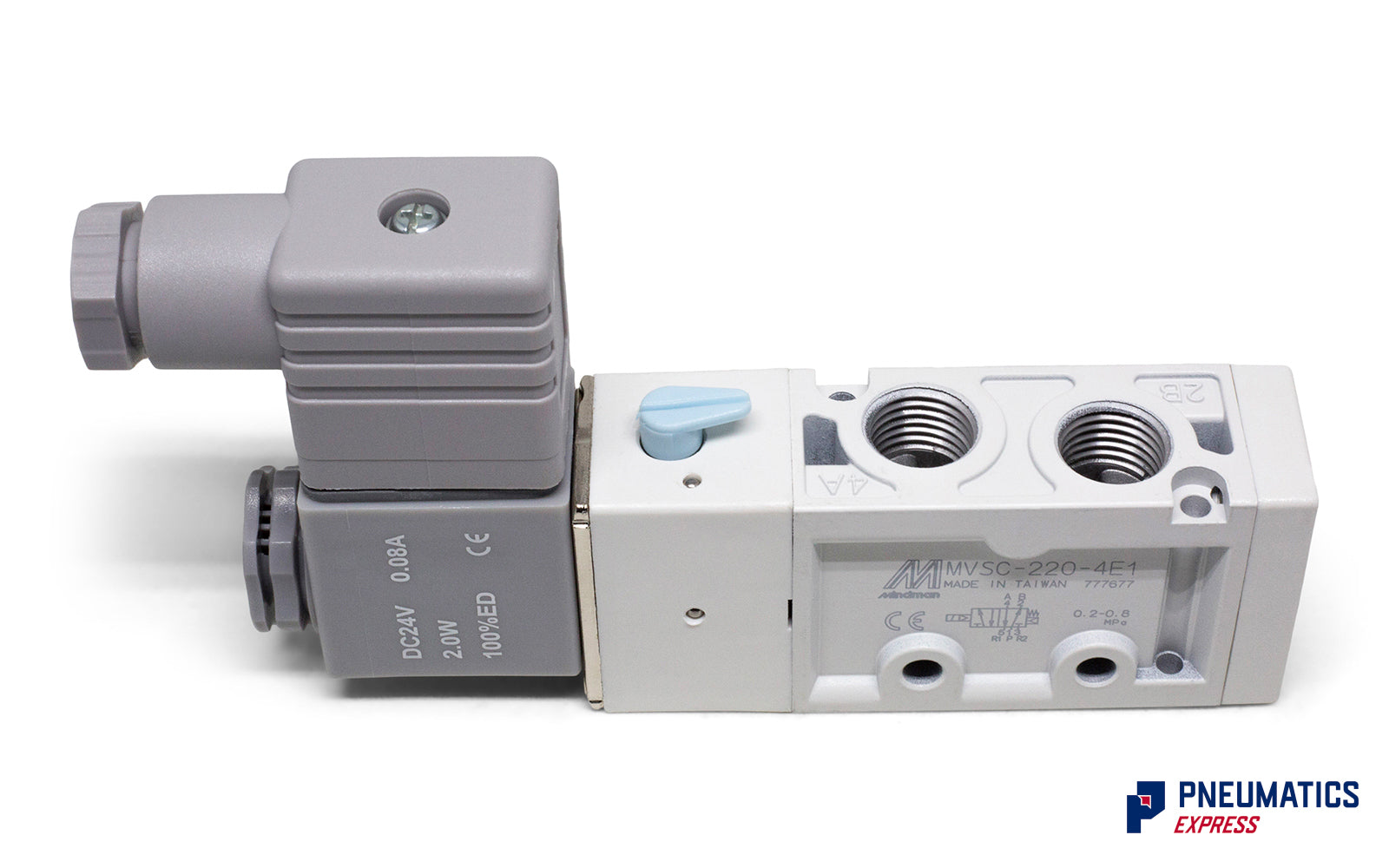

The Mindman MVSC-220-4E1 AC110v Solenoid Valve is a 5/2 G1/4" valve with LED indicator. Its durable plastic chassis and aluminum spool ensure reliability. This high-efficiency valve has a low-power AC110v consumption coil and a DIN connector with LED indicator. The MVSC-220-4E1 offers exceptional value with its competitive price and reliable performance. With an effective orifice of 18 mm² and a response time of 30 ms, this valve is ideal for a range of applications.
| Model | 4E1 |
| Bore no.: | 8AÂ |
| Port size | G 1/4Â |
| No. of port | 5 |
| No. of position | 2 |
| Medium | Air |
| Operating pressure range | 0.2~0.8 MPa |
| Proof pressure | 1 MPa |
| Ambient temperature | -5 ~ + 50℃ (No freezing) |
| Effective orifice | 18 mm² |
| Reponse time | 30 ms |
| Voltage | AC110V, 220V (50/60)Hz, DC24V |
| Power consumption | AC=4.8/4.4VA, 6/4.9VA, DC=2W |
| Available voltage range | ± 10% |
