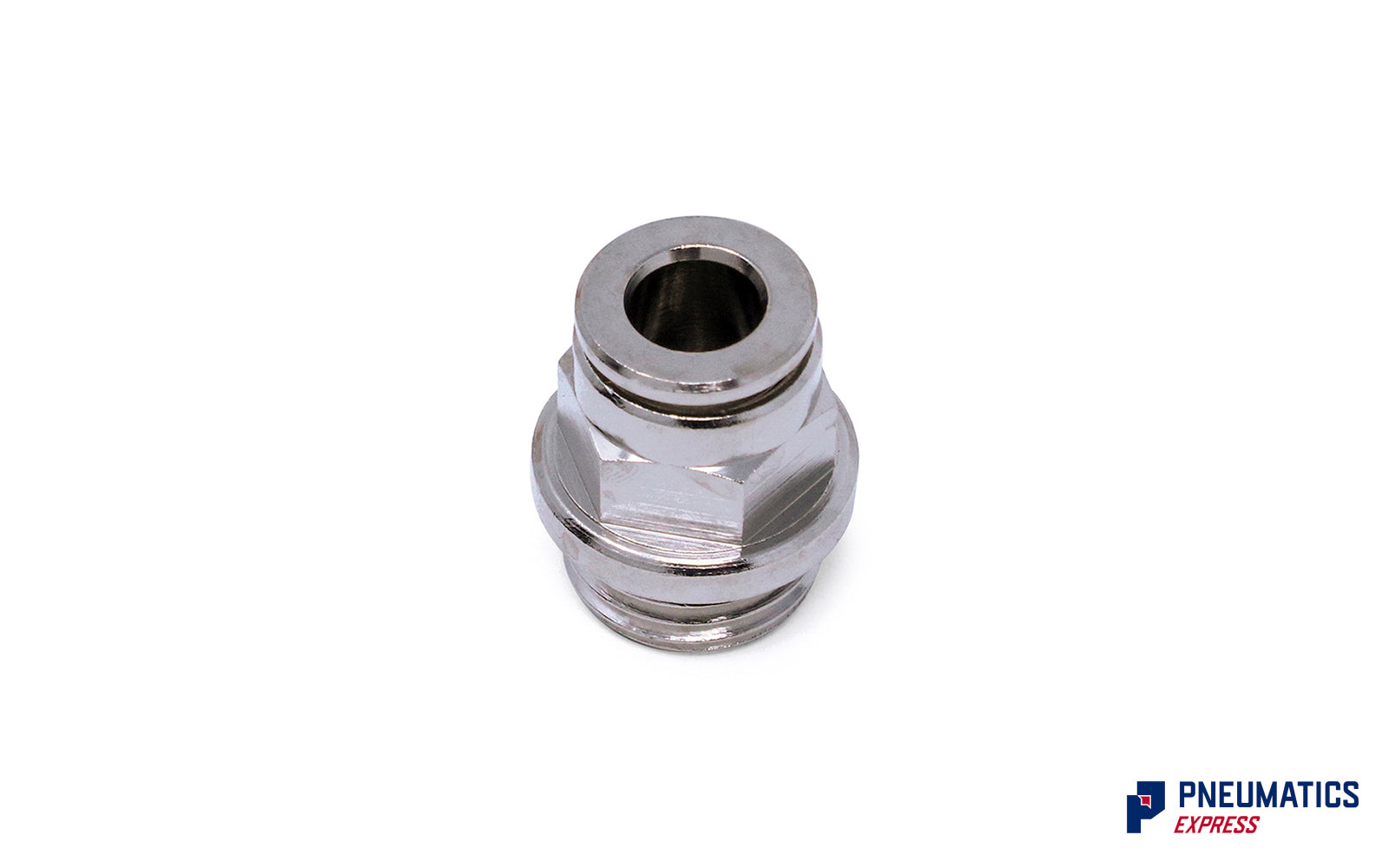

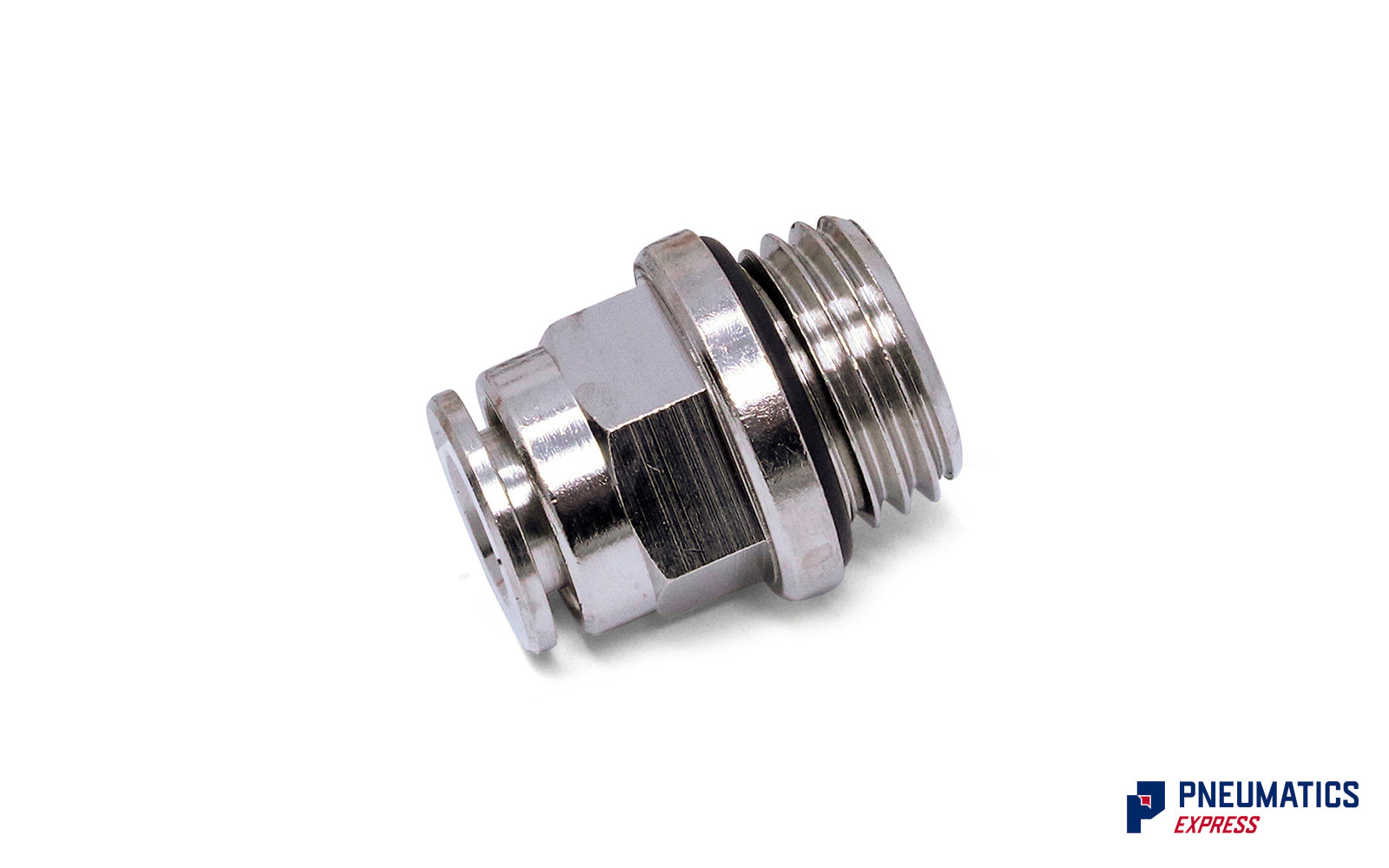

1/4" BSP to 6mm Male Stud Push-In Fitting (Nickel Plated Brass)

Regular price: $3.60
Sale price: $3.60

Fully in Stock

TubeØ6 x 1/4"BSP Stud Push-in fitting In nickel plated brass. Made in Italy by API.

MPN R120614 ,

Technical Specifications

Fluid	Compressed air
Pressure range	0,5 ÷ 12 bar (Vacuum resistance: 750mm.Hg)
Temperature range	-20℃ ÷ +70℃
Parallel threads	UNI-ISO 228/1 (BSP)
Taper threads	UNI-ISO 7/1 (BSPT)
Metric threads	ISO R/262
Connection tubes	Calibrated nylon, Polyurethane and Rilsan
Tube tolerances	from Ø3 mm to 10mm: ±0,05mm Ø12mm and 14mm : ±0,1mm
Materials	Body and release collar: Nickel plated brass Collet: Stainless steel Seals: Nitrile rubber (NBR)
