Mindman MVSC-220-4E1-AC220-L-G, 5/2 G1/4" LED Indicator
- Regular price
- Sold out
- Sale price
- $49.10
Fully in Stock

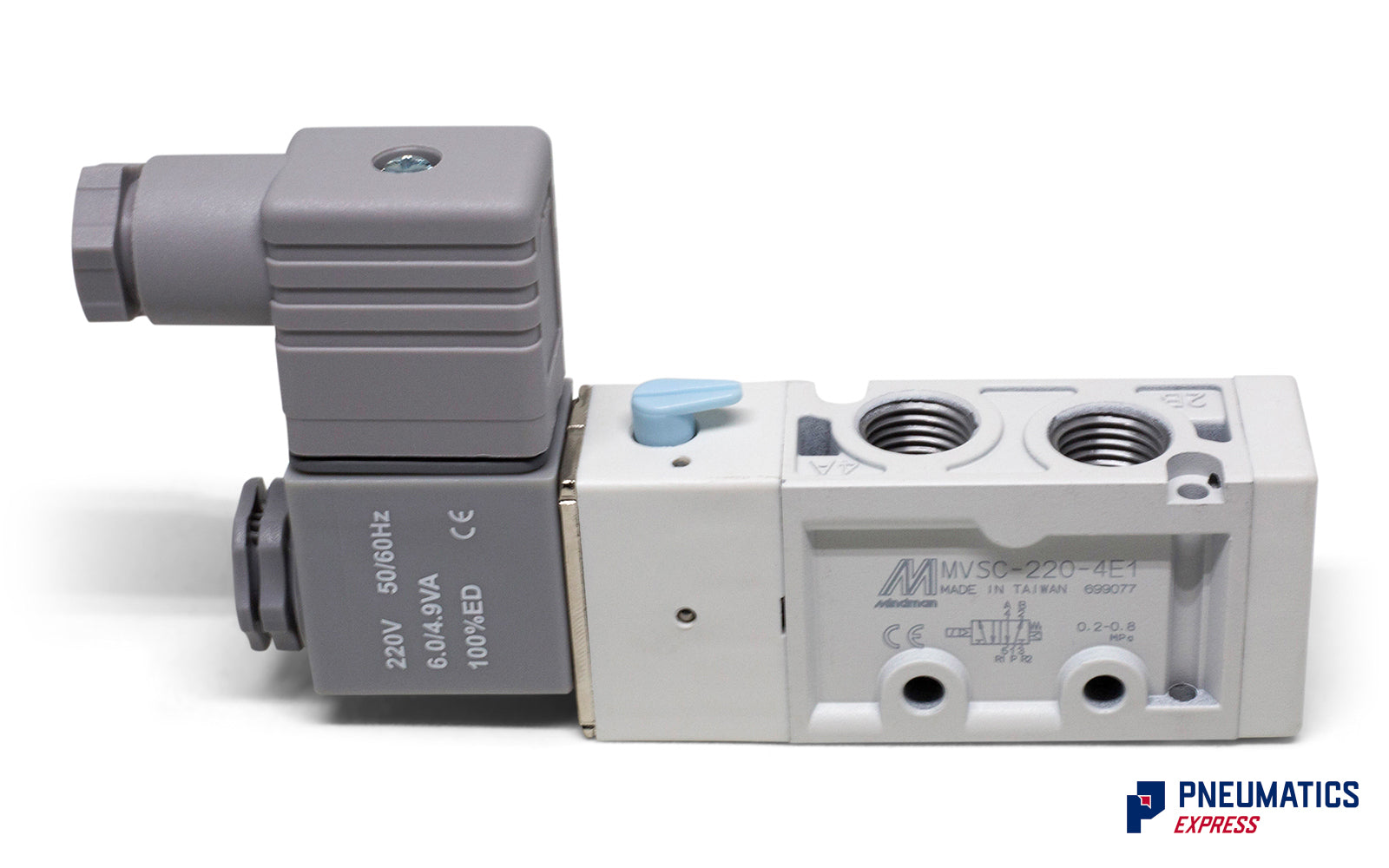

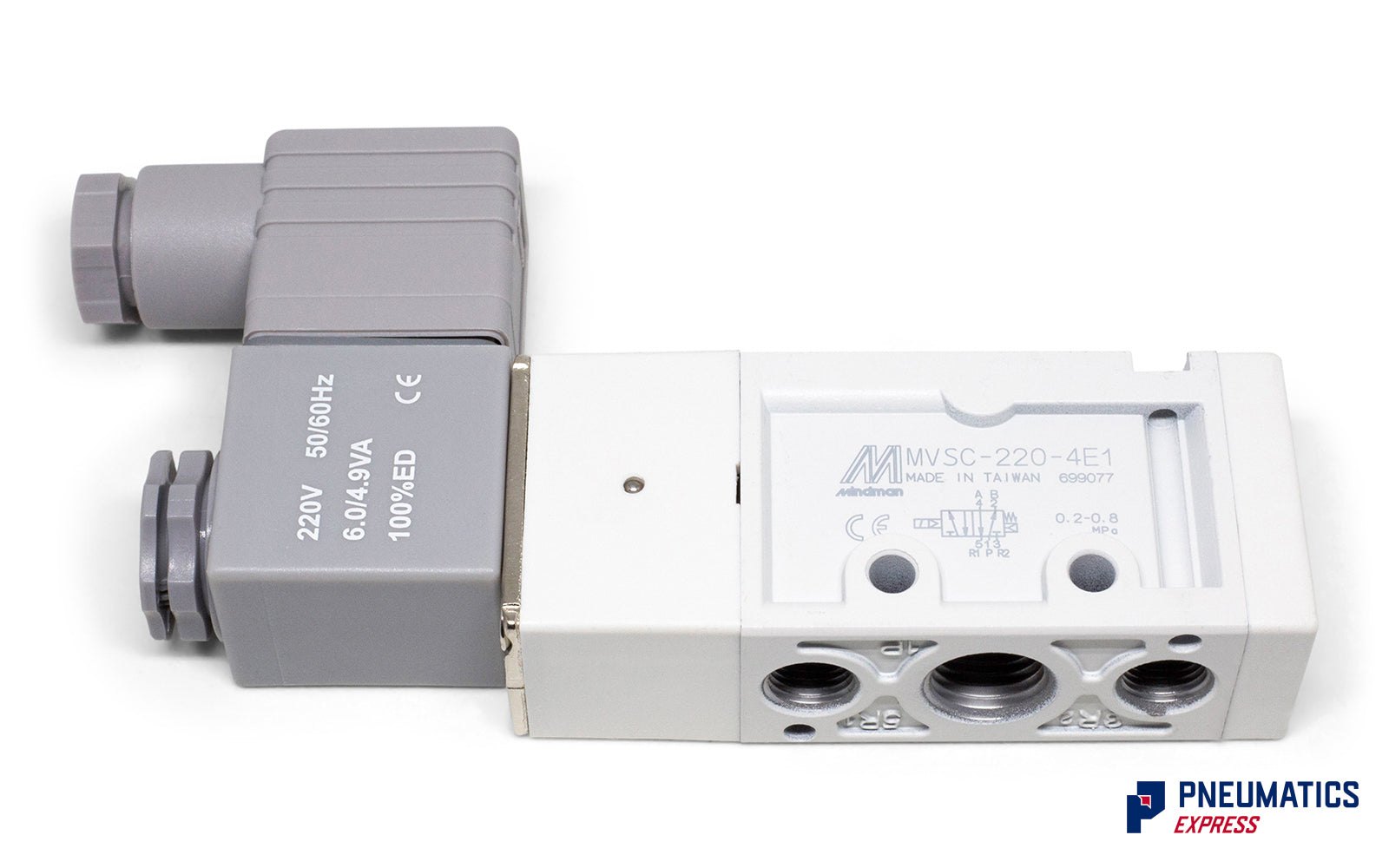

The Mindman MVSC-220-4E1 solenoid valve is a 5/2 G1/4" model with an LED indicator. This valve features a durable plastic chassis, an aluminum spool, and a high-efficiency, low-power-consumption AC220v coil. It includes a DIN connector and LED indicator, offering reliable performance at an affordable price. With an operating pressure range of 0.2~0.8 MPa and proof pressure of 1 MPa, this valve is suitable for various industrial applications.

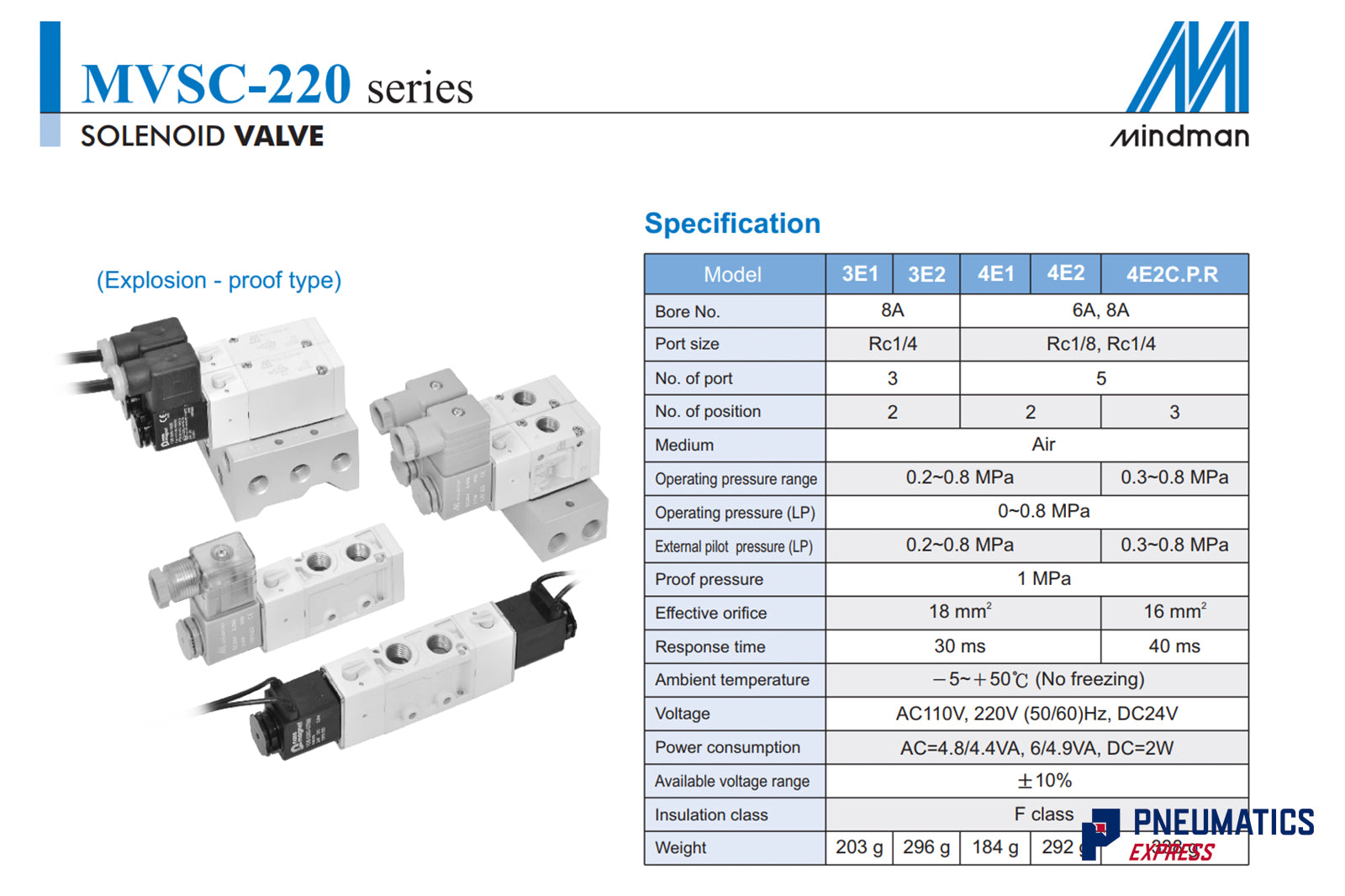

| Model | 4E1 |
| Bore no.: | 8AÂ |
| Port size | G 1/4Â |

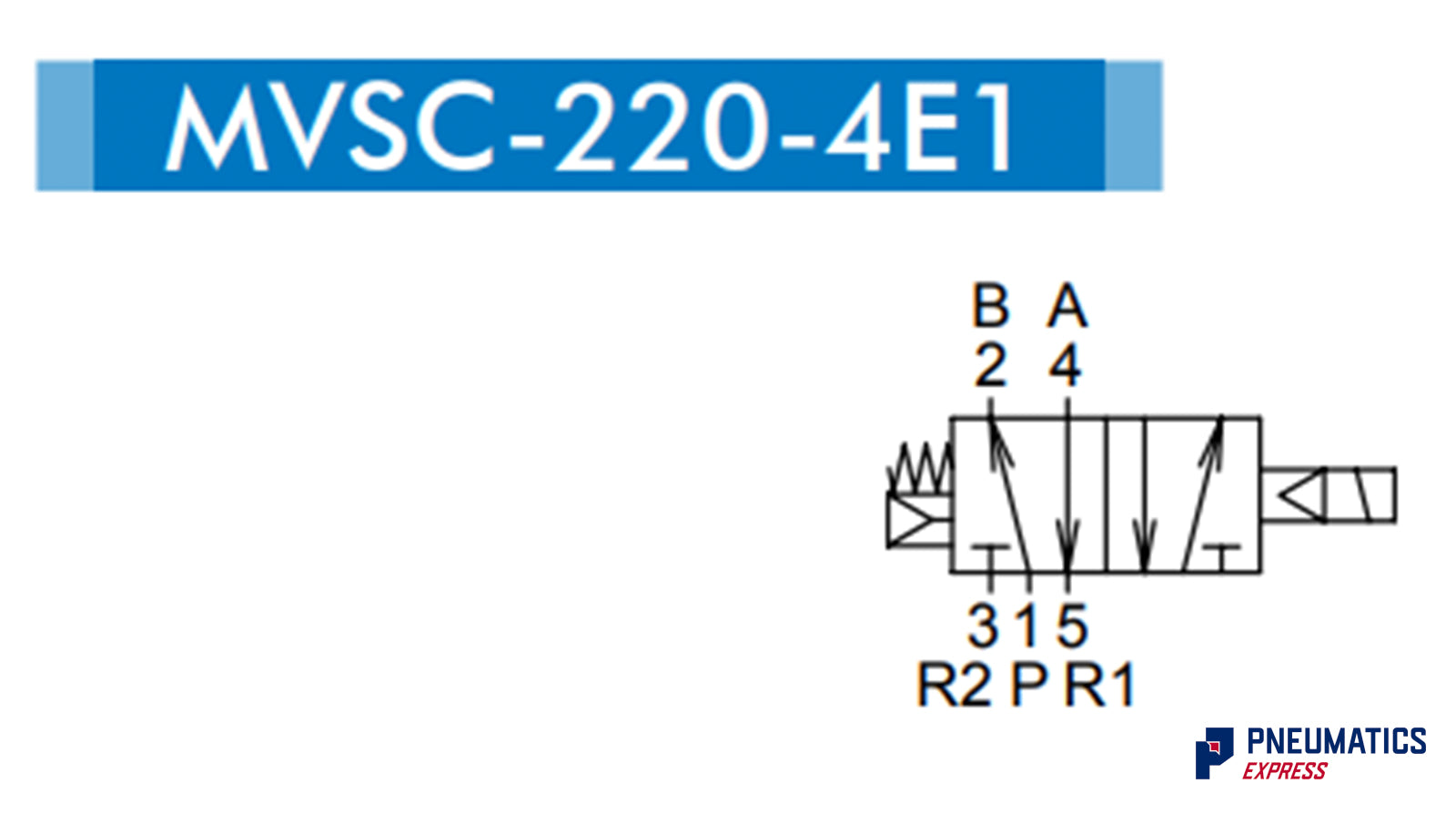

| No. of port | 5 |
| No. of position | 2 |
| Medium | Air |
| Operating pressure range | 0.2~0.8 MPa |
| Proof pressure | 1 MPa |
| Ambient temperature | -5 ~ + 50℃ (No freezing) |
| Effective orifice | 18 mm² |
| Reponse time | 30 ms |
| Voltage | AC110V, 220V (50/60)Hz, DC24V |
| Power consumption | AC=4.8/4.4VA, 6/4.9VA, DC=2W |
| Available voltage range | ± 10% |
